Spacer sleeve 841035

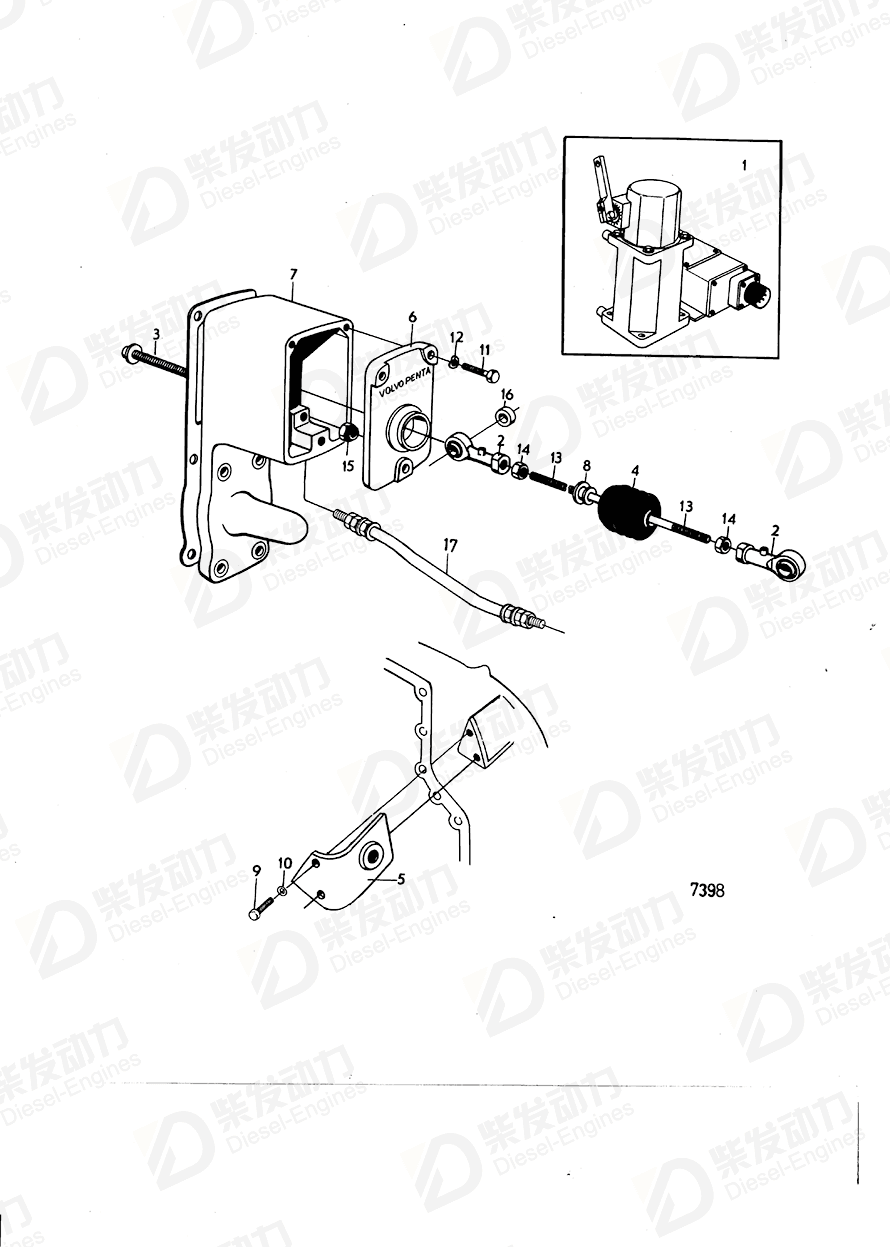

| No. | Part Name | Part Number | Qty | Description |
| 2 | Link end | 834681 | 2 | |
| 3 | Adjusting screw | 834667 | 1 | |
| 4 | Bellows | 834668 | 1 | |
| 5 | Bracket | 837698 | 1 | TD CO gear |
| 6 | Cap | 842771 | 1 | |
| 7 | Housing | 842772 | 1 | |
| 8 | Sealing ring | 842945 | 1 | |
| 9 | Hexagon screw | 940100 | 2 | |
| 10 | Spring washer | 941906 | 2 | |
| 11 | Hexagon screw | 955247 | 3 | |
| 12 | Spring washer | 941905 | 3 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 13 | Control rod | 948926 | 1 | |
| 14 | Hexagon nut | 955780 | 2 | |
| 15 | Lock nut | 963104 | 1 | |
| 16 | Spacer sleeve | 841035 | 1 | |
| 17 | Hose assembly | 1507501 | 1 |
| Item | Part Name | Part No. |
| 16 | Spacer sleeve 841035 | 841035 |
| Details | |
| Engine model | D120A, TD120A D70B, TD70B TAD1240GE, TAD1241GE, TAD1242GE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TD100CHC TD100CRC TD100GG-85, TD100GG-87, TID100KG-87 TD1010G, TWD1010G TD120BHC TD120BRC TD120C TD1210G, TWD1210G, TWD1211G TD121CHC TD121CRC TD121GG-86, TID121KG-87, TID121LG-87 TD70G, TID70G TD70G-83 TD710G, TWD710G TD71AG, TID71AG TID121FG TWD1240VE, TAD1241VE, TAD1242VE |
| Application | Electronic Regulator and Installation Components Electronic Regulator and Installation Components, Alt Electronic Regulator and Installation Components: A Electronic Regulator and Installation Components: B Installation Kit for Hydraulic Governor Installation Kit for Hydraulic Governor: A Installation Kit for Hydraulic Governor: B Instrument Panel and Control Mounting Kit for Separate Electronic Governor |
| Specification | |
| Descriptions | *replaced by 1pc retainer 865571 and1pc sealing ring 865572. |
