Spacer sleeve 842351

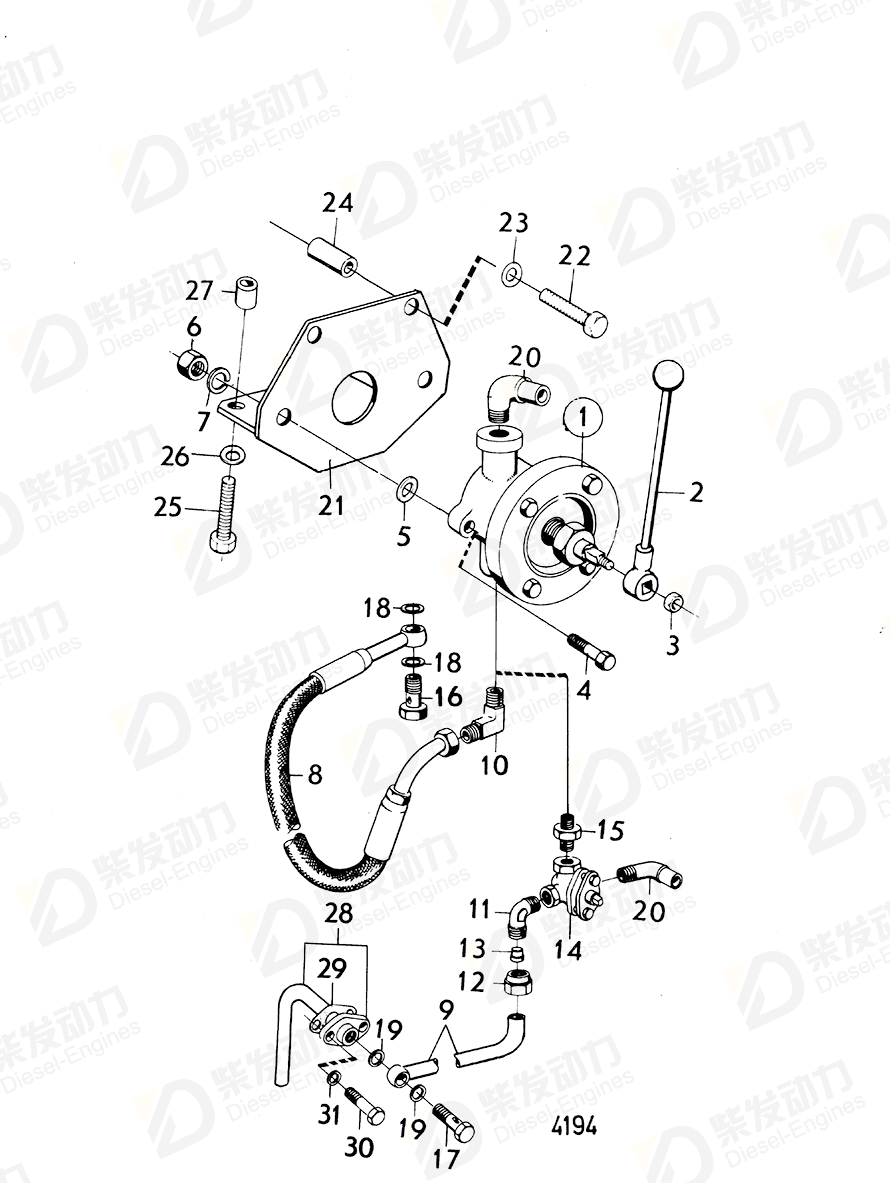

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil bilge pump | 805999 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 2 | Handle | 821713 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 3 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 4 | Hexagon screw | 955535 | 2 | |
| 4 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 5 | Spacer sleeve | 823575 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 5 | Washer | 940097 | 2 | |
| 6 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 7 | Spring washer | 942336 | 2 | |
| 8 | Rubber hose | 821944 | 1 | Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 9 | Tube | 822460 | 1 | Spec. 867113. alt spec. 9969 |
| 10 | Elbow nipple | 957111 | 1 | Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 11 | Elbow nipple | 941758 | 1 | |
| 12 | Fitting nut | 941752 | 1 | AQ115A MOXXXX/86909-. |
| 13 | Ferrule | 941753 | 1 | AQ115A MOXXXX/86909-. |
| 14 | Cock | 807721 | 1 | AQ115A MOXXXX/86909-. |
| 15 | Double nipple | 16452 | 1 | AQ115A MOXXXX/86909-. |
| 16 | Hollow screw | 191929 | 1 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053. |
| 17 | Hollow screw | 26013 | 1 | AQ115A MOXXXX/86909-. |
| 18 | Gasket | 957185 | 2 | |
| 19 | Gasket | 957181 | 2 | |
| 20 | Hose nipple | 961610 | 1 | (803490) |
| 21 | Bracket | 820581 | 1 | |
| 21 | Bracket | 842332 | 1 | For bracket 829839 with 8 holes. |
| 22 | Hexagon screw | 955565 | 1 | Temporary production., L=57mm |
| 22 | Hexagon screw | 955568 | 1 | For bracket 829839 with 8 holes., L=76mm |
| 23 | Spring washer | 940280 | 1 | |
| 24 | Spacer sleeve | 830672 | 1 | Spec.867277, 867278, 867300, 867301. |
| 24 | Spacer sleeve | 946230 | 1 | |
| 25 | Hexagon screw | 940136 | 2 | |
| 25 | Hexagon screw | 940159 | 3 | |
| 26 | Spring washer | 941907 | 3 | |
| 27 | Spacer sleeve | 408519 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 27 | Spacer sleeve | 842351 | 2 | Spec.867277, 867278, 867300, 867301. |
| 28 | Pipe | 896775 | 1 | |
| 29 | Gasket | 802287 | 1 | |
| 30 | Hexagon screw | 955525 | 2 | |
| 31 | Spring washer | 941907 | 2 |
| Item | Part Name | Part No. |
| 27 | Spacer sleeve 842351 | 842351 |
| Details | |
| Engine model | D70B TWD740GE, TAD740GE, TAD741GE |
| Application | Cylinder Block Oil Sump Pump and Installation Components: A |
| Specification | |
| Descriptions | For TWD740G, Alt Spec.867277, 867278, 867300, 867301. |
