Spacer sleeve 847400

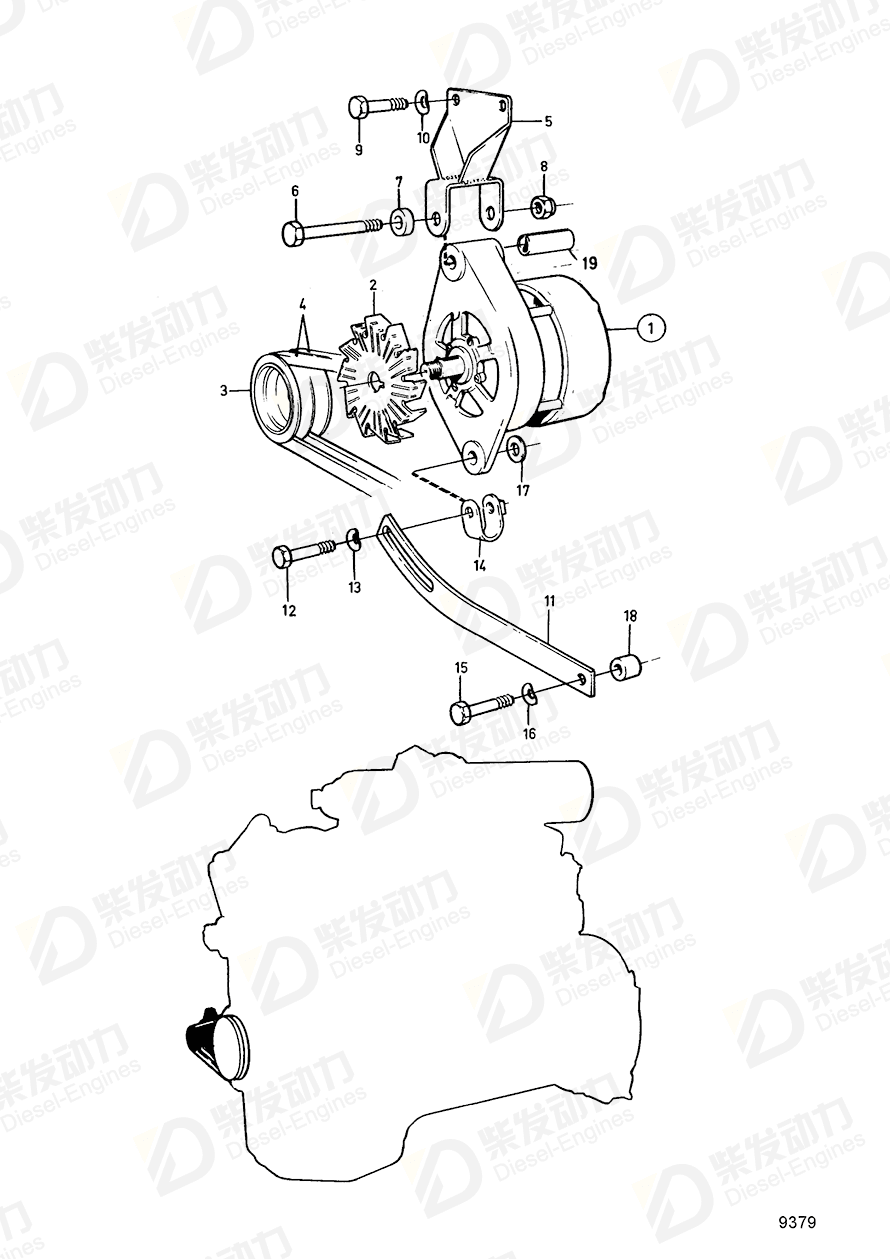

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 849563 | 1 | For 24V electric system., Replaced by 863955., SN-1101019500/XXXXXX |
| 1 | Alternator | 863955 | 1 | 28V 60A. for 24V electric system., Replaced by 872021., SN-1101038358/XXXXXX |
| 1 | Alternator | 872021 | 1 | For 24V electric system., 28V 60A, repl by 873757 |
| 1 | Alternator | 1607362 | 1 | For 24 voltage electric system., Alt. 28V 55A |
| 1 | Alternator | 6779261 | 1 | For 24 voltage electric system., Alt. 28V 55A |
| 2 | Fan | 1613241 | 1 | |
| 3 | Pulley | 822573 | 1 | |
| 4 | V-belt | 966991 | 1 | For TD1010G, TWD1010G |
| 5 | Alternator bracket | 849510 | 1 | |
| 6 | Hexagon screw | 955555 | 1 | L=83mm |
| 7 | Spacer sleeve | 847400 | 1 | |
| 8 | Lock nut | 950355 | 1 | |
| 9 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 10 | Spring washer | 942336 | 2 | |
| 11 | Tensioner | 863726 | 1 | |
| 12 | Hexagon screw | 955299 | 1 | |
| 13 | Spring washer | 941907 | 1 | |
| 14 | Tensioning loop | 466734 | 1 | |
| 14 | Tensioning loop | 466735 | 1 | |
| 15 | Hexagon screw | 955542 | 1 | |
| 16 | Spring washer | 942336 | 1 | |
| 17 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 18 | Spacer sleeve | 846903 | 1 | |
| 19 | Spring pin | 1610144 | 1 |
| Item | Part Name | Part No. |
| 7 | Spacer sleeve 847400 | 847400 |
| Details | |
| Engine model | TD100G, TD100G-85 TD100G, TD100G-85, TD100GG, TD100GG-85, TID100K, TID100KG TD100G-87 TD100G-87, TD100GG-87, TID100K-87, TID100KG-87 TD121G, TD121G-87, TD121GG, TD121GG-86, TD121GG-87 TD121G, TD121G-87, TID121K, TID121K-87 TID121FG TID121K, TID121KG, TID121KG-87, TID121LG, TID121LG-87 |
| Application | Alternator Twin Mounted Alternator, Double Mounted Alternator, Low Mounted Right Side ALTERNATOR, LOW MOUNTED RIGHT SIDE: B ALTERNATOR, LOW MOUNTED RIGHT SIDE: TID121FP Alternator, Twin Mounted |
