Spacer sleeve 848694

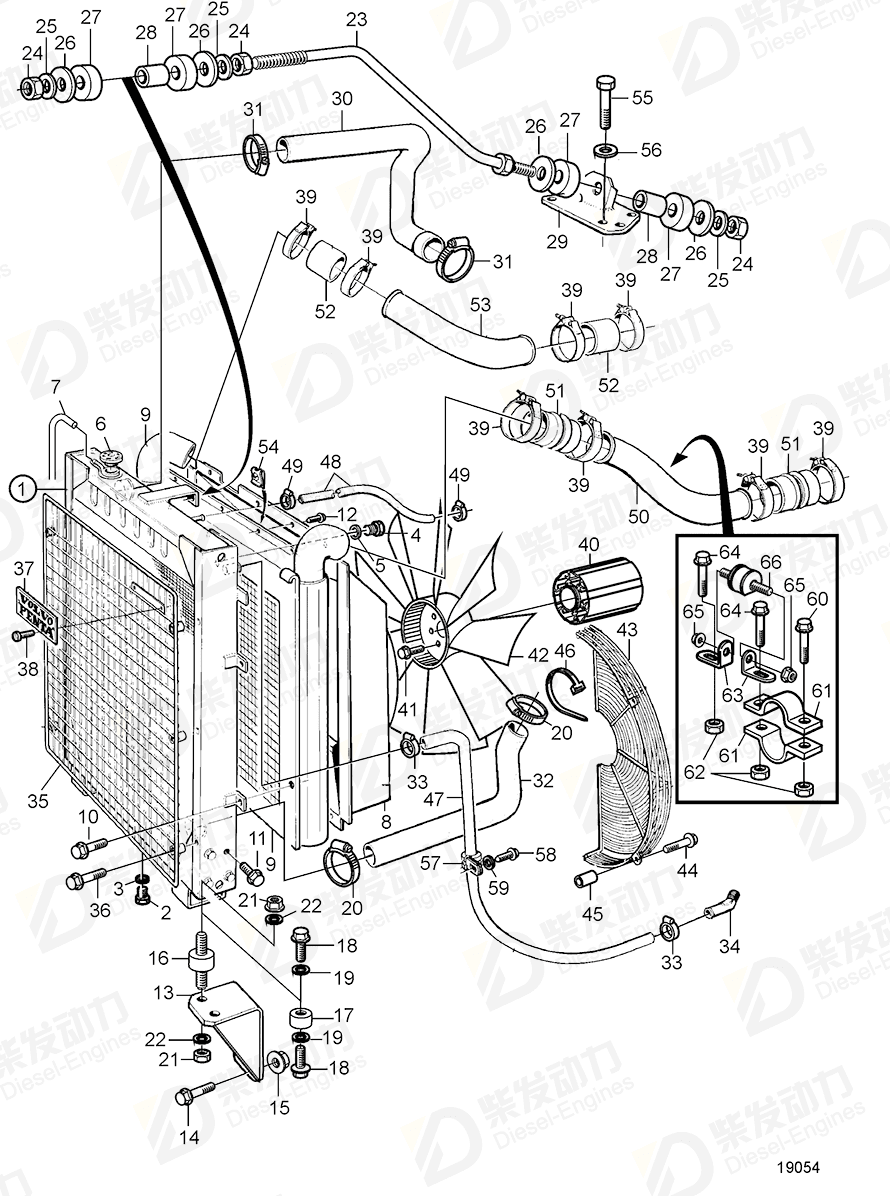

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 866092 | 1 | |
| 2 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 3 | Gasket | 969011 | 1 | |
| 4 | Plug | 947660 | 1 | (836268) |
| 5 | Gasket | 11994 | 1 | |
| 6 | Pressure cap | 866095 | 1 | (350578) |
| 7 | Hose | 192618 | 1 | L=1400mm |
| 8 | Fan shroud | 3832462 | 1 | |
| 9 | Charge air cooler | 866093 | 1 | |
| 10 | Flange screw | 946173 | 4 | |
| 11 | Flange screw | 973924 | 8 | |
| 12 | Flange screw | 966862 | 8 | |
| 13 | Radiator bracket | 3837162 | 2 | |
| 14 | Flange screw | 946817 | 6 | |
| 15 | Flange nut | 971096 | 6 | |
| 16 | Rubber cushion | 863415 | 2 | |
| 17 | Spacer | 866856 | 2 | When rubber cushions not been used for the radiator. |
| 18 | Flange screw | 946502 | 4 | When rubber cushions not been used for the radiator., L=20mm |
| 19 | Spring washer | 940280 | 4 | |
| 20 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 21 | Hexagon nut | 955850 | 4 | |
| 22 | Spring washer | 940280 | 4 | |
| 23 | Radiator stay | 865181 | 1 | |
| 24 | Hexagon nut | 955793 | 3 | |
| 25 | Spring washer | 941912 | 3 | |
| 26 | Washer | 191940 | 4 | |
| 27 | Rubber bushing | 866857 | 4 | |
| 28 | Spacer sleeve | 252202 | 2 | |
| 29 | Anchorage | 1660904 | 1 | |
| 30 | Hose, therm. housing | 865283 | 1 | |
| 31 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 32 | Hose, cool. water pipe | 865284 | 1 | |
| 33 | Hose clamp | 994560 | 2 | |
| 34 | Elbow nipple | 942649 | 1 | |
| 35 | Radiator protector | 865159 | 1 | |
| 36 | Flange screw | 947760 | 6 | M8x40mm |
| 37 | Emblem | 846118 | 1 | |
| 38 | Screw | 941651 | 2 | |
| 39 | Hose clamp | 865575 | 8 | |
| 40 | Fan hub | 3829422 | 1 | For plasticfan |
| 41 | Flange screw | 965187 | 6 | |
| 42 | Fan | 3827492 | 1 | Pusher type. |
| 43 | Fan guard | 3825616 | 2 | SNXXXXXXXXXX/277520- |
| 44 | Flange screw | 966807 | 12 | |
| 45 | Spacer sleeve | 848694 | 12 | |
| 46 | Cable tie | 948211 | 1 | |
| 47 | Rubber hose | 944386 | 1 | |
| 48 | Rubber hose | 943367 | 1 | L=1700mm |
| 49 | Hose clamp | 994556 | 2 | |
| 50 | Charge air pipe, turbo | 3832626 | 1 | |
| 51 | Charge air hose | 865127 | 2 | |
| 52 | Charge air hose | 865128 | 2 | |
| 53 | Charge air pipe | 889582 | 1 | |
| 55 | Hexagon screw | 955523 | 4 | |
| 56 | Spring washer | 941907 | 4 | |
| 57 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 58 | Six point socket scr | 972603 | 1 | |
| 59 | Washer | 960138 | 1 | |
| 60 | Flange screw | 945444 | 2 | |
| 61 | Flange lock nut | 948645 | 2 | |
| 62 | Half clamp | 1674206 | 2 | |
| 63 | Bracket | 965553 | 2 | |
| 64 | Hexagon screw | 955302 | 1 | |
| 65 | Flange nut | 945408 | 2 | |
| 66 | Spacer sleeve | 807257 | 1 |
| Item | Part Name | Part No. |
| 45 | Spacer sleeve 848694 | 848694 |
| Details | |
| Engine model | TAD1032GE TAD1640GE, TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE TAD1641VE, TAD1642VE, TAD1643VE, TAD1650VE, TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1643VE-B TAD1650VE-B, TAD1651VE TAD1670VE, TAD1671VE, TAD1672VE TAD730G TAD730P TAD730V TD121G-87 TD710G TD71A TD71A, TD730VE TD71ACE TD71AG TD71AP TD71AW TD730ME TD730VE TWD1211G TWD1211P, TWD1211G TWD1230VE, TWD1231VE TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Closed Crankcase Ventilation: A Cooling system and components HD, SN2016087665- Induction Manifold with Installation Components Induction Manifold with Installation Components: A Induction Manifold with Installation Components: B Induction Manifold with Installation Components: TD71AGP Induction Manifold with Installation Components: TD71APB Inlet Manifold Inlet Manifold: A Inlet Manifold: B Oil Drain Pump and Installation Parts, Engine Mounted Radiator and Fan Radiator and Fan, SN2120211550-: B Radiator and Fan: A Radiator and Fan: C |
| Specification | |
| Descriptions | For 865884 For TWD L=33mm |
