Spacer sleeve 858391

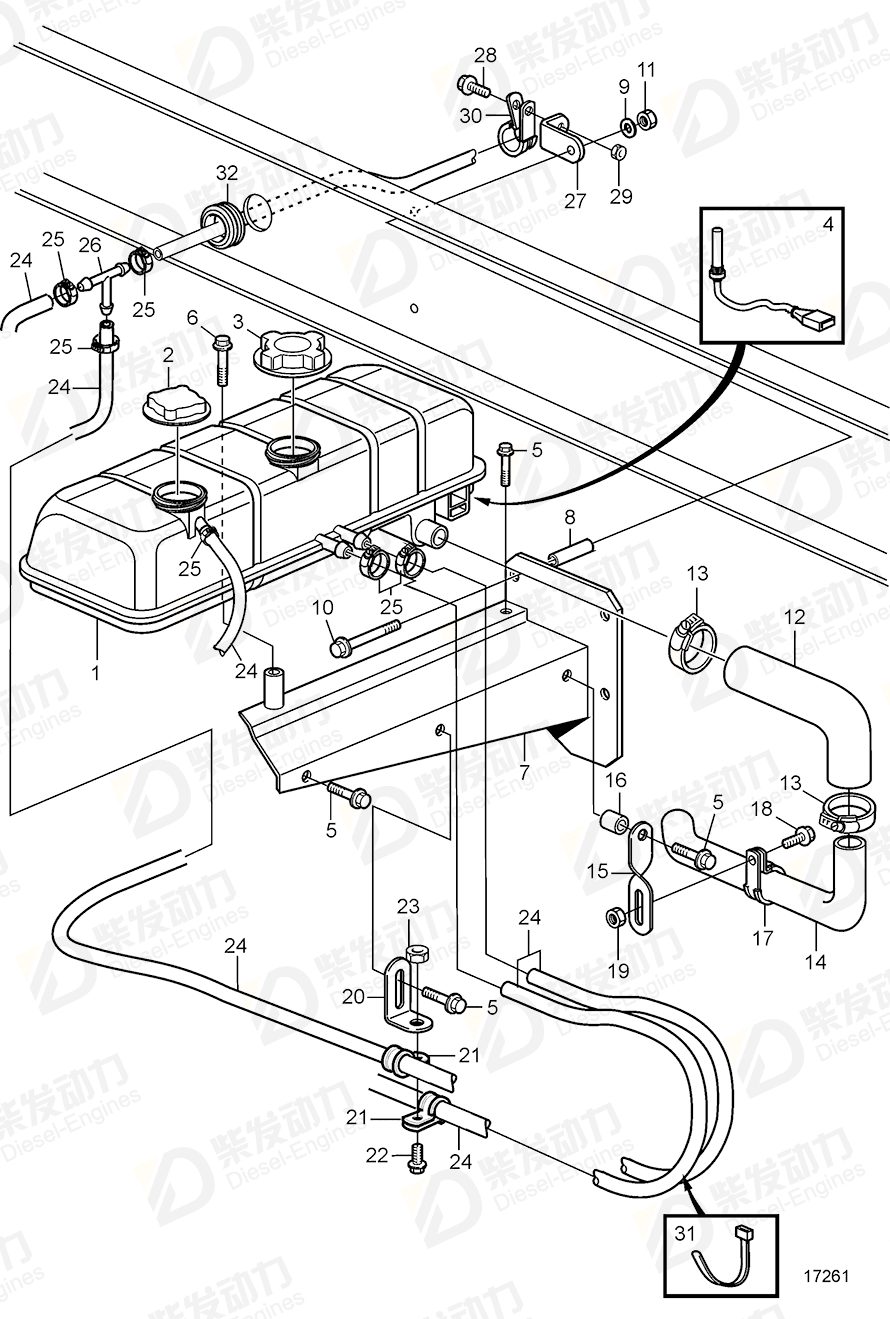

| No. | Part Name | Part Number | Qty | Description |
| 1 | Expansion tank | 1674916 | 1 | |
| 2 | Filler cap | 1674922 | 1 | |
| 3 | Pressure cap | 1674083 | 1 | |
| 5 | Flange screw | 946671 | 4 | |
| 6 | Flange screw | 965216 | 1 | |
| 7 | Bracket | 3827159 | 1 | |
| 8 | Spacer sleeve | 858391 | 2 | |
| 9 | Washer | 976944 | 2 | |
| 10 | Flange screw | 965184 | 2 | |
| 11 | Flange nut | 945408 | 2 | |
| 12 | Rubber hose | 1542598 | 1 | |
| 13 | Hose clamp | 994561 | 2 | |
| 14 | Tube | 3827827 | 1 | |
| 15 | Anchorage | 1136551 | 1 | |
| 16 | Spacer sleeve | 846339 | 1 | |
| 17 | Clamp | 952640 | 1 | |
| 18 | Flange screw | 947542 | 1 | |
| 19 | Flange lock nut | 949278 | 1 | |
| 20 | Bracket | 965555 | 1 | 1x9x60 |
| 21 | Clamp | 952627 | 2 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053. |
| 22 | Flange screw | 946934 | 1 | |
| 23 | Flange lock nut | 949278 | 1 | |
| 24 | Rubber hose | 943366 | 1 | L=600mm late type |
| 25 | Hose clamp | 994556 | 1 | |
| 27 | Bracket | 965555 | 1 | 1x9x60 |
| 28 | Flange screw | 946934 | 1 | |
| 29 | Flange lock nut | 949278 | 1 | |
| 30 | Clamp | 952640 | 1 | |
| 31 | Cable tie | 948211 | 1 | |
| 32 | Grommet | 1599332 | 1 |
| Item | Part Name | Part No. |
| 8 | Spacer sleeve 858391 | 858391 |
| Details | |
| Engine model | DH10A, THD102KD, THD102KB TAD730P TD610V, TD630VE, TD640VE TD640VE TD710G, TWD710G TD710G, TWD710G, TAD730G TD71A, TID71A, TWD710V TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V TD730ME, TWD731ME TWD630ME TWD630VE TWD710P |
| Application | Air Filter Oil Dipstick. Extended Plastic Expansion Tank Stop Solenoid Stop Solenoid *later Production: A Stop Solenoid *later Production: B Stop Solenoid 12V Stop Solenoid 24V Stop Solenoid Alt. 1 Stop Solenoid Alt. 2 Stop Solenoid, Earlier Production Stop Solenoid: A Stop Solenoid: B |
| Specification | |
| Descriptions | L=74mm |
