Spacer sleeve 863971

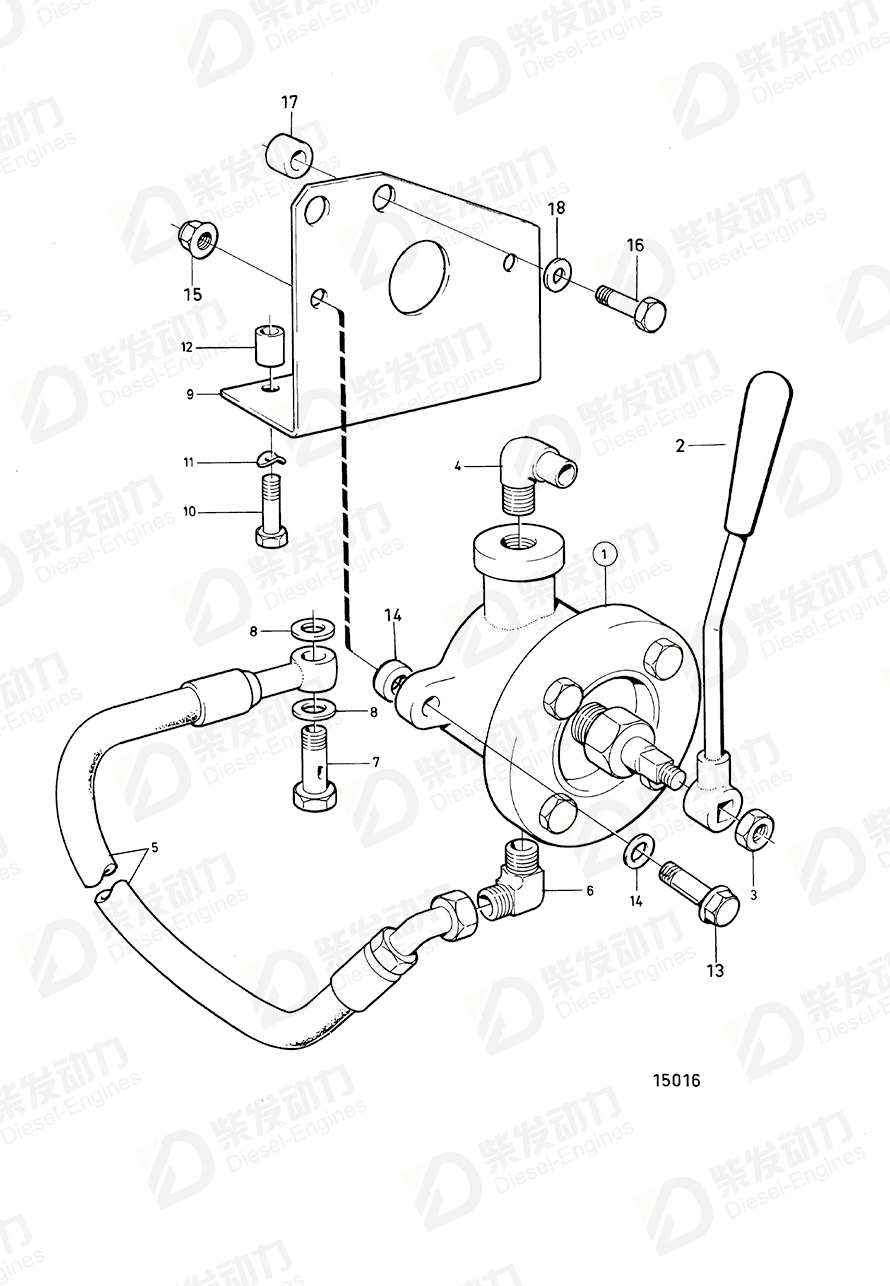

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil bilge pump | 805999 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 2 | Handle | 821713 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 3 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 4 | Elbow nipple | 942590 | 1 | |
| 5 | Rubber hose | 849888 | 1 | |
| 6 | Elbow nipple | 957111 | 1 | Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 7 | Hollow screw | 966821 | 1 | |
| 8 | Gasket | 18813 | 2 | |
| 9 | Bracket | 3825861 | 1 | (842332) |
| 10 | Hexagon screw | 940159 | 2 | |
| 11 | Spring washer | 941907 | 2 | |
| 12 | Spacer washer | 946048 | 2 | |
| 13 | Flange screw | 965185 | 2 | |
| 14 | Spacer sleeve | 1576517 | 2 | |
| 15 | Flange nut | 971095 | 2 | Alt |
| 16 | Hexagon screw | 955569 | 1 | Classed engine,spec.867117., Replaces earlier production spacer pin FIG.15., L=83mm |
| 17 | Spacer sleeve | 863971 | 1 | |
| 18 | Washer | 955898 | 1 | Late type |
| Item | Part Name | Part No. |
| 17 | Spacer sleeve 863971 | 863971 |
| Details | |
| Engine model | TAD1030GE, TAD1031GE, TAD1032GE, TAD1031G TD100G-87, TD1030ME, TWD1030ME TD100G-87, TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD120HP-86, TD121G, TD121GG, TD121GG-86, TD121GGP TD121G-87, TD121GG-87, TD121GGP-87, TD121GPB-87, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG-87, TID121LG UT-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE |
| Application | Oil Bilge Pump and Installation Components Oil Bilge Pump, Manual |
