Spring 11992156
Spring 11992156
- Brandsvolvo penta
- Part No.: 11992156
- Availability: 联系我们

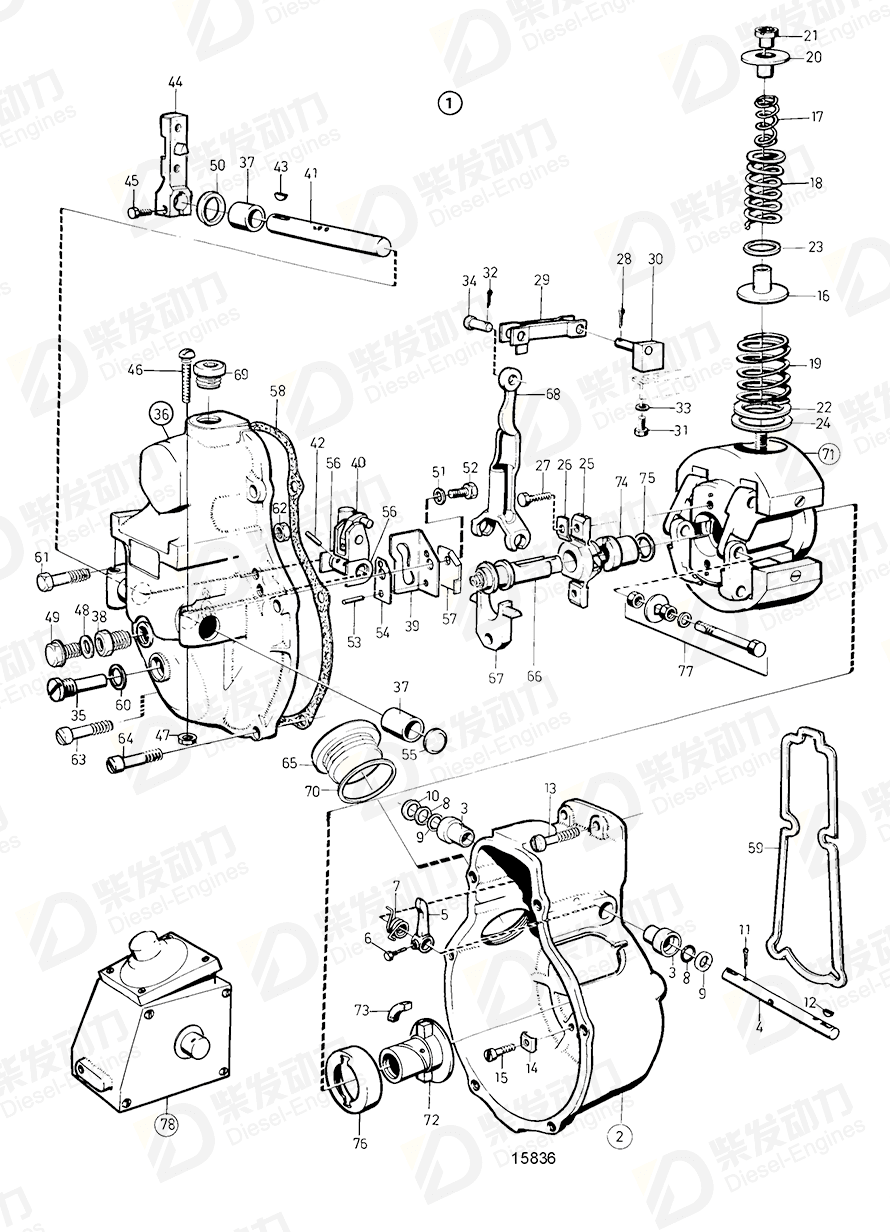

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Governor |
3825262 |
1 |
For 865811, 3826087 |
| 3 |
Bushing |
240059 |
2 |
|
| 4 |
Shaft |
233404 |
1 |
|
| 5 |
Lever |
240060 |
1 |
|
| 6 |
Screw |
241102 |
1 |
|
| 7 |
Spring |
240061 |
1 |
|
| 8 |
Gasket |
239908 |
2 |
|
| 9 |
Washer |
6212642 |
2 |
|
| 10 |
Washer |
233372 |
1 |
|
| 11 |
Lock pin |
244979 |
2 |
|
| 12 |
Key |
77582 |
1 |
|
| 13 |
Screw |
849468 |
2 |
|
| 14 |
Washer |
862427 |
4 |
|
| 17 |
Spring |
243085 |
2 |
|
| 18 |
Compression spring |
233417 |
2 |
|
| 19 |
Spring |
11992156 |
2 |
|
| 20 |
Spring disc |
244654 |
2 |
|
| 21 |
Nut |
244623 |
2 |
|
| 23 |
Washer |
239300 |
1 |
|
| 24 |
Washer |
244745 |
1 |
|
| 26 |
Striker plate |
240565 |
2 |
|
| 27 |
Hexagon screw |
955271 |
2 |
|
| 29 |
Link |
244397 |
1 |
|
| 30 |
Guide lug |
244986 |
1 |
|
| 33 |
Washer |
241705 |
2 |
|
| 34 |
Bolt |
244851 |
1 |
|
| 35 |
Screw |
239927 |
1 |
|
| 37 |
Bushing |
862440 |
2 |
|
| 38 |
Bushing |
239925 |
1 |
|
| 39 |
Elbow |
243842 |
1 |
|
| 42 |
Pin |
244983 |
2 |
|
| 43 |
Woodruff key |
910112 |
1 |
|
| 44 |
Intermediate lever |
239316 |
1 |
|
| 45 |
Screw |
1698743 |
1 |
|
| 46 |
Screw |
241847 |
1 |
|
| 47 |
Hexagon nut |
955781 |
1 |
|
| 48 |
Gasket |
18836 |
1 |
|
| 49 |
Screw |
240570 |
1 |
|
| 51 |
Spring washer |
941906 |
1 |
|
| 52 |
Hexagon screw |
955273 |
1 |
|
| 53 |
Pin |
233104 |
2 |
|
| 54 |
Spacer |
233071 |
1 |
TH=0.2mm |
| 54 |
Spacer |
233072 |
1 |
TH=0.3mm |
| 54 |
Spacer |
233427 |
1 |
TH=0.8mm |
| 54 |
Plate |
240568 |
1 |
TH=0.5mm |
| 56 |
Washer |
238128 |
2 |
|
| 57 |
Lock washer |
244625 |
1 |
|
| 59 |
Sealing ring |
862443 |
1 |
|
| 60 |
Gasket |
18836 |
1 |
|
| 61 |
Screw |
244554 |
1 |
|
| 62 |
Nut |
243844 |
1 |
|
| 64 |
Screw |
862448 |
1 |
|
| 65 |
Plug |
240688 |
1 |
|
| 66 |
Setting bolt |
241801 |
1 |
|
| 67 |
Link |
240682 |
1 |
|
| 68 |
Regulator arm |
243838 |
1 |
|
| 70 |
Washer |
1698169 |
1 |
|
| 75 |
Adjusting washer |
244753 |
1 |
TH=1,60mm |
| 75 |
Adjusting washer |
244754 |
1 |
TH=1,63mm |
| 75 |
Adjusting washer |
244755 |
1 |
TH=1,66mm |
| 75 |
Adjusting washer |
244756 |
1 |
TH=1,69mm |
| 75 |
Adjusting washer |
244757 |
1 |
TH=1,72mm |
| 75 |
Adjusting washer |
244758 |
1 |
TH=1,75mm |
| 75 |
Adjusting washer |
244759 |
1 |
TH=1,78mm |
| 75 |
Adjusting washer |
244760 |
1 |
TH=1,81mm |
| 75 |
Adjusting washer |
244761 |
1 |
TH=1,84mm |
| 75 |
Adjusting washer |
244762 |
1 |
TH=1,87mm |
| 75 |
Adjusting washer |
244763 |
1 |
TH=1,90mm |
| 75 |
Adjusting washer |
244764 |
1 |
TH=1,93mm |
| 75 |
Adjusting washer |
244765 |
1 |
TH=1,96mm |
| 75 |
Adjusting washer |
244766 |
1 |
TH=1,99mm |
| 75 |
Adjusting washer |
244767 |
1 |
TH=2,02mm |
| 75 |
Adjusting washer |
244768 |
1 |
TH=2.05mm |
| 75 |
Adjusting washer |
244769 |
1 |
TH=2,08mm |
| 75 |
Adjusting washer |
244770 |
1 |
TH=2,11mm |
| 75 |
Adjusting washer |
244771 |
1 |
TH=2,14mm |
| 78 |
Smoke limiter |
243257 |
1 |
|
| Item |
Part Name |
Part No. |
| 19 |
Spring 11992156 |
11992156 |
| Details |
| Engine model |
TWD1031VE |
| Application |
Centrifugal Governor, Components |
