Spring 244414

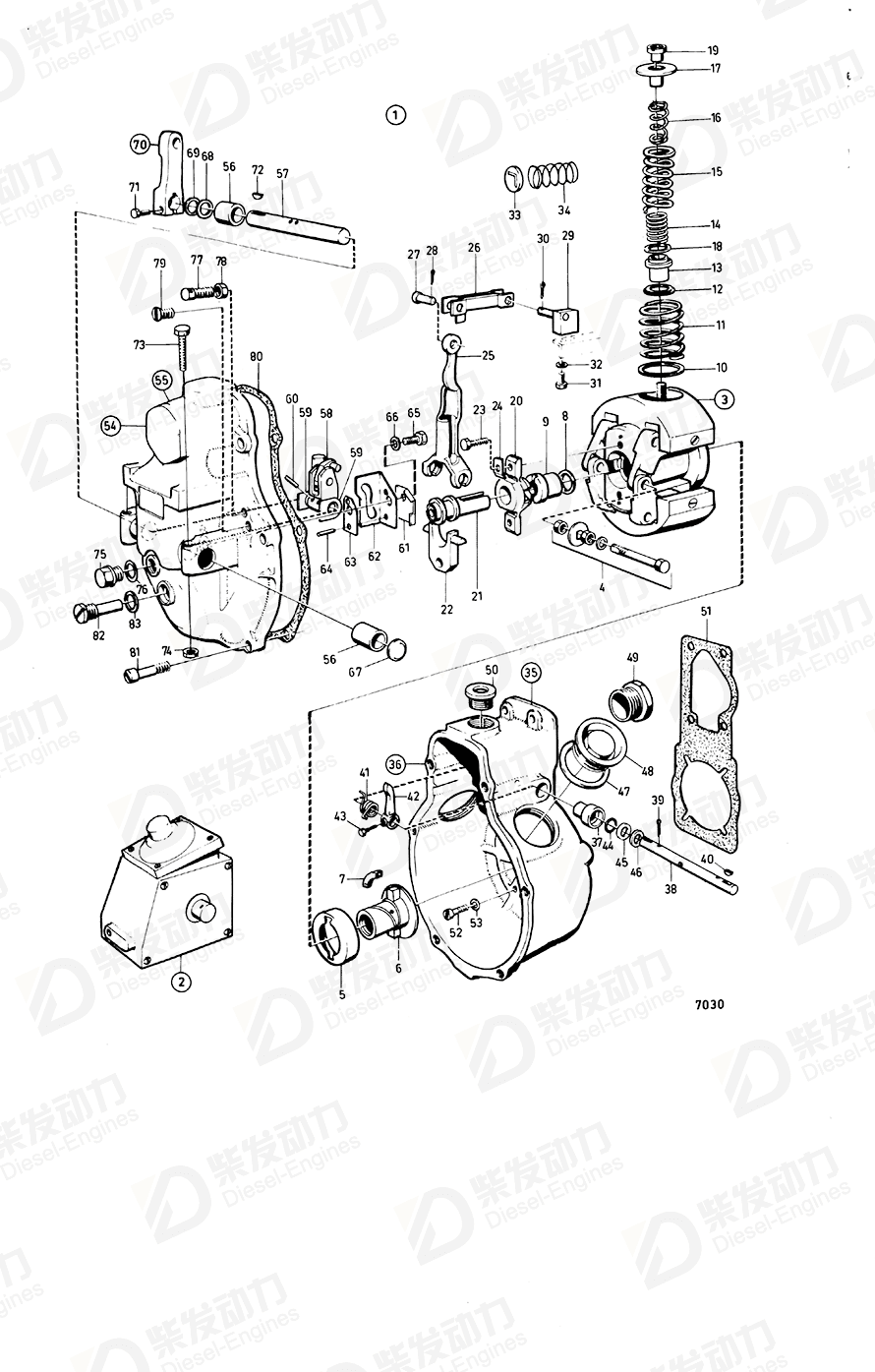

| No. | Part Name | Part Number | Qty | Description |
| 1 | Governor | 244696 | 1 | |
| 3 | Hub | 6212208 | 1 | |
| 4 | Screw kit | 233052 | 1 | |
| 5 | Cap | 241123 | 1 | |
| 6 | Companion flange | 244980 | 1 | |
| 7 | Shock absorber | 233130 | 4 | |
| 8 | Adjusting washer | 233087 | 1 | TH=2.00mm |
| 8 | Adjusting washer | 233088 | 1 | TH=1.90mm |
| 8 | Adjusting washer | 233413 | 1 | TH=1.95mm |
| 8 | Adjusting washer | 238106 | 1 | TH=1.60mm |
| 8 | Washer | 240563 | 1 | TH=2.05mm |
| 8 | Adjusting washer | 244755 | 1 | TH=1,66mm |
| 8 | Adjusting washer | 244756 | 1 | TH=1,69mm |
| 8 | Adjusting washer | 244758 | 1 | TH=1,75mm |
| 8 | Adjusting washer | 244760 | 1 | TH=1,81mm |
| 8 | Adjusting washer | 244761 | 1 | TH=1,84mm |
| 8 | Adjusting washer | 244770 | 1 | TH=2,11mm |
| 9 | Round nut | 240678 | 1 | |
| 10 | Washer | 243087 | 2 | |
| 11 | Spring | 241764 | 2 | For governor 228-750. |
| 13 | Spring disc | 244714 | 2 | |
| 14 | Spring | 244715 | 2 | |
| 15 | Spring | 244713 | 2 | |
| 16 | Spring | 244414 | 2 | |
| 17 | Spring disc | 244622 | 2 | |
| 18 | Washer | 239300 | 4 | |
| 19 | Nut | 244623 | 2 | |
| 20 | Bushing | 240051 | 1 | |
| 21 | Setting bolt | 241801 | 1 | |
| 22 | Link | 240682 | 1 | |
| 24 | Striker plate | 240565 | 2 | |
| 25 | Arm | 240683 | 1 | |
| 26 | Link | 244397 | 1 | |
| 27 | Bolt | 243447 | 1 | |
| 28 | Split pin | 907819 | 1 | |
| 29 | Guide lug | 244986 | 1 | |
| 30 | Split pin | 907819 | 1 | |
| 31 | Cross recessed screw | 956076 | 2 | |
| 32 | Spring washer | 941905 | 2 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 33 | Spring disc | 244718 | 1 | |
| 34 | Spring | 244719 | 1 | |
| 35 | Housing | 241765 | 1 | Compl |
| 37 | Bushing | 240059 | 2 | |
| 38 | Shaft | 233404 | 1 | |
| 40 | Key | 77582 | 1 | |
| 41 | Spring | 240061 | 1 | |
| 42 | Lever | 240060 | 1 | |
| 43 | Screw | 241102 | 1 | |
| 44 | Gasket | 239908 | 2 | |
| 45 | Washer | 233372 | 1 | |
| 46 | Washer | 25703 | 1 | |
| 47 | Washer | 240689 | 2 | |
| 48 | Plug | 240688 | 2 | |
| 49 | Bushing | 240120 | 1 | |
| 50 | Plug | 240919 | 1 | |
| 51 | Gasket | 240058 | 1 | |
| 53 | Spring washer | 941906 | 8 | |
| 54 | Housing | 244716 | 1 | Compl |
| 56 | Bushing | 240691 | 2 | |
| 57 | Shaft | 240434 | 1 | |
| 58 | Link arm | 244666 | 1 | |
| 59 | Washer | 238128 | 2 | |
| 60 | Pin | 233103 | 2 | |
| 61 | Lock washer | 244625 | 1 | |
| 62 | Elbow | 244717 | 1 | |
| 63 | Spacer | 233071 | 1 | TH=0.2mm |
| 63 | Spacer | 233072 | 1 | TH=0.3mm |
| 63 | Spacer | 233427 | 1 | TH=0.8mm |
| 63 | Plate | 240568 | 1 | TH=0.5mm |
| 64 | Pin | 233104 | 2 | |
| 66 | Spring washer | 941906 | 1 | |
| 68 | O-ring | 864476 | 1 | |
| 69 | Washer | 238132 | 1 | |
| 69 | Washer | 240065 | 1 | TH=2.5mm |
| 70 | Intermediate lever | 239316 | 1 | |
| 71 | Hexagon screw | 955272 | 1 | |
| 72 | Woodruff key | 910112 | 1 | |
| 73 | Screw | 241988 | 1 | |
| 74 | Hexagon nut | 955781 | 1 | |
| 75 | Screw | 240570 | 1 | |
| 76 | Gasket | 18836 | 1 | |
| 77 | Screw | 244553 | 1 | |
| 78 | Nut | 243844 | 1 | |
| 80 | Gasket | 239889 | 1 | |
| 81 | Screw | 244554 | 5 | |
| 82 | Screw | 239927 | 1 | |
| 83 | Gasket | 18836 | 1 |
| Item | Part Name | Part No. |
| 16 | Spring 244414 | 244414 |
| Details | |
| Application | Centrifugal Governor Centrifugal Governor: 6212666 Centrifugal Governor: 830799 |
