Spring 837741

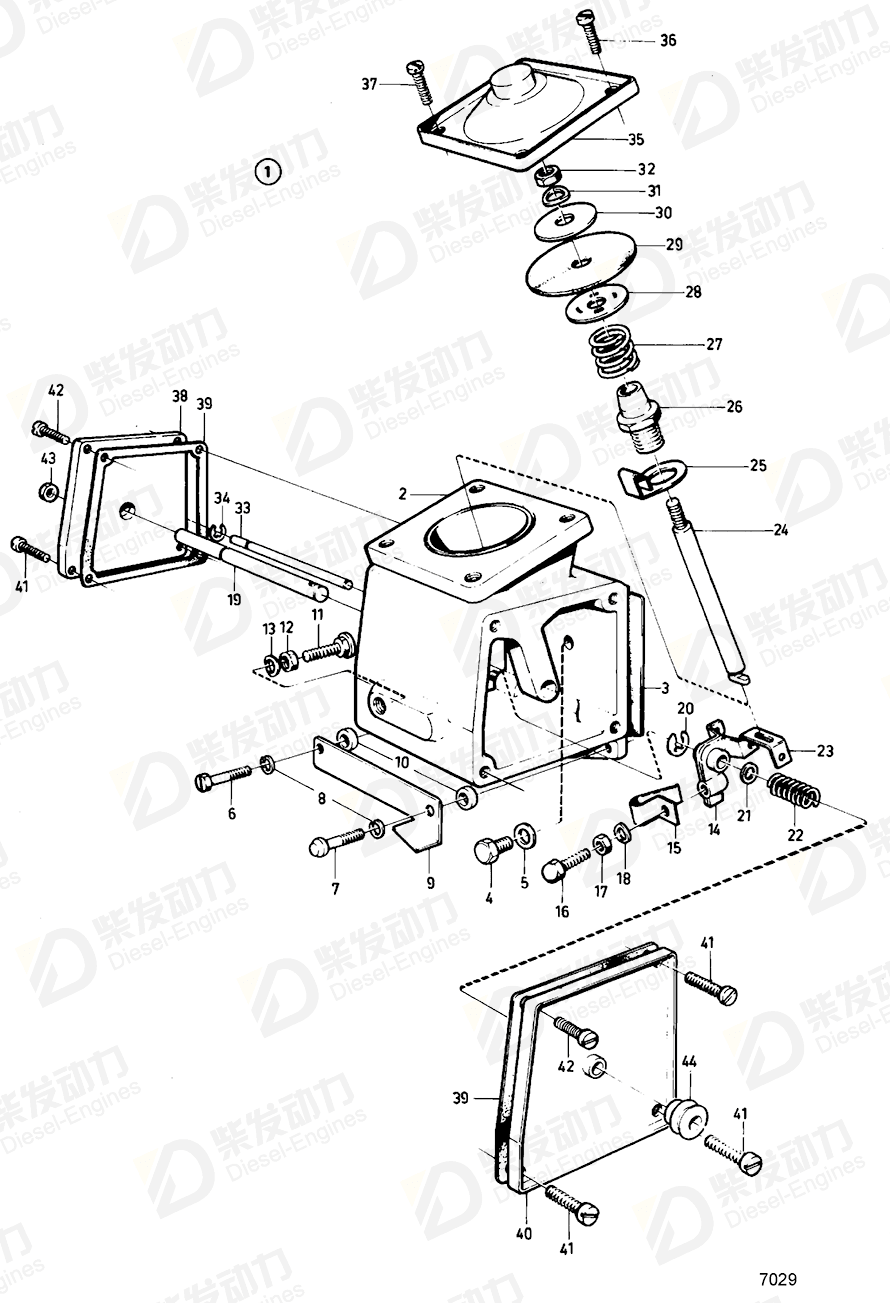

| No. | Part Name | Part Number | Qty | Description |
| 1 | Smoke limiter | 863595 | 1 | |
| 3 | Gasket | 1698172 | 1 | |
| 4 | Hexagon screw | 955295 | 1 | |
| 6 | Screw | 6638096 | 1 | |
| 8 | Spring washer | 949607 | 2 | |
| 9 | Indicator | 241648 | 1 | |
| 12 | Hexagon nut | 940197 | 1 | |
| 13 | Spring washer | 949607 | 1 | |
| 16 | Screw | 243827 | 1 | L=35mm |
| 17 | Hexagon nut | 940197 | 1 | |
| 18 | Spring washer | 949607 | 1 | |
| 19 | Shaft | 241783 | 1 | |
| 20 | E-circlip | 951669 | 1 | |
| 21 | Washer | 233816 | 1 | |
| 25 | Spring | 837741 | 1 | |
| 26 | Bushing | 244740 | 1 | |
| 27 | Compression spring | 862332 | 1 | |
| 28 | Washer | 241776 | 1 | |
| 29 | Diaphragm | 241775 | 1 | |
| 30 | Washer | 241776 | 1 | |
| 31 | Spring washer | 949607 | 1 | |
| 32 | Hexagon nut | 940197 | 1 | |
| 34 | E-circlip | 951667 | 2 | |
| 37 | Screw | 241779 | 2 | |
| 39 | Gasket | 1698171 | 2 | |
| 41 | Screw | 241779 | 5 | |
| 43 | Hexagon nut | 955781 | 1 | |
| 44 | Rubber bellows | 241792 | 1 |
| Item | Part Name | Part No. |
| 25 | Spring 837741 | 837741 |
| Details | |
| Engine model | TWD1030ME |
| Application | Smoke Eliminator Smoke Eliminator: 862468 Smoke Eliminator: 862469 Smoke Limiter |
