Spring pin 20459839

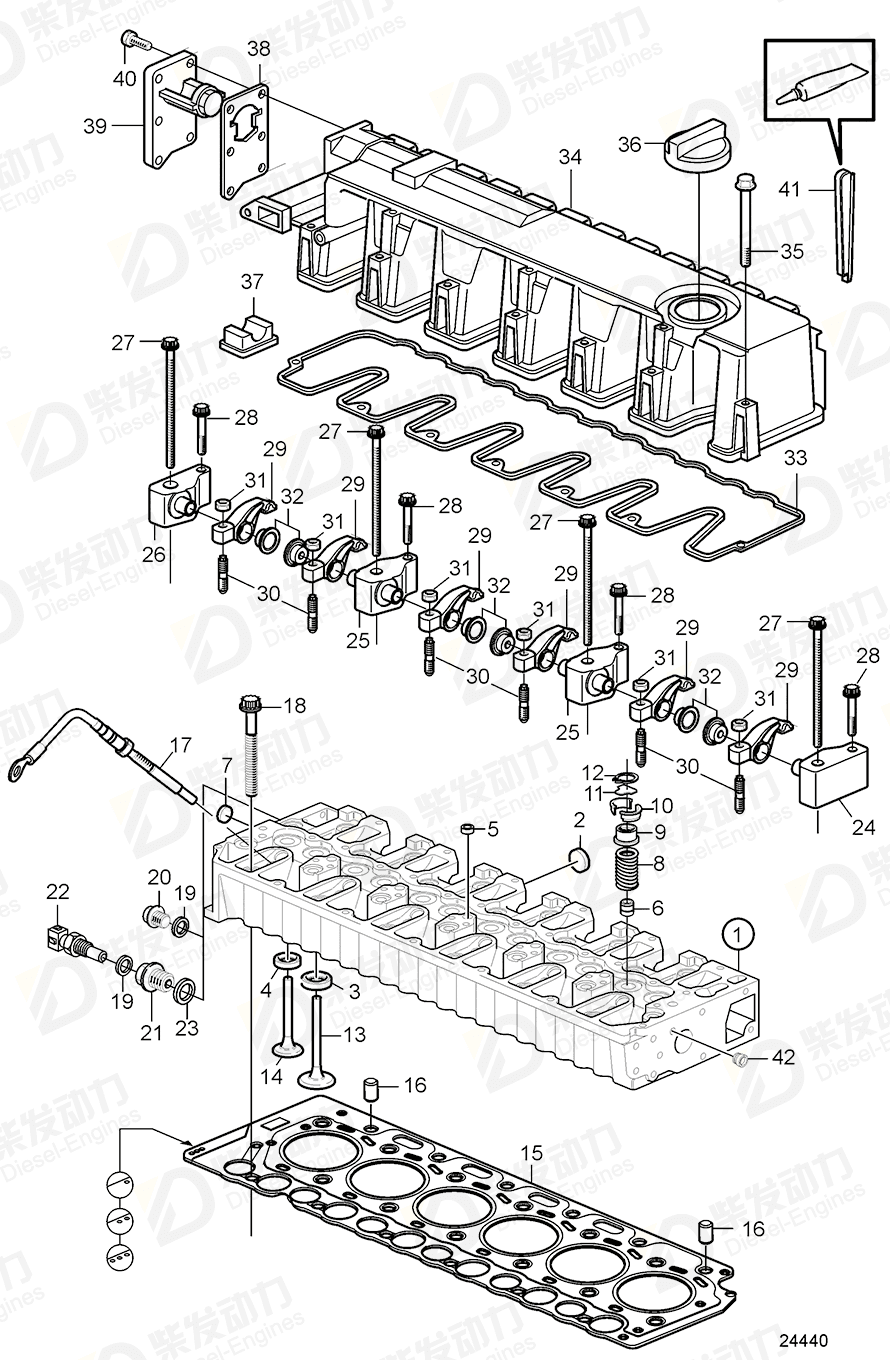

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3801133 | 1 | Replaced by 3801356 |
| 1 | Cylinder head, exch | 3801356 | 1 | |
| 2 | Cap plug | 20412745 | 5 | |
| 3 | Valve seat, intake | 20849976 | 6 | |
| 4 | Insert, exhaust | 20849979 | 6 | |
| 5 | Cap plug | 20412733 | 5 | |
| 6 | Valve stem seal | 20459855 | 12 | |
| 7 | Cap plug | 20914266 | 1 | |
| 8 | Valve spring | 20459851 | 12 | |
| 9 | Spring disc | 20840747 | 12 | |
| 10 | Valve cotter | 20459857 | 24 | |
| 11 | Thrust washer | 20840807 | 12 | |
| 12 | Snap ring | 20792103 | 12 | |
| 13 | Inlet valve | 20798699 | 6 | |
| 14 | Exhaust valve | 20798533 | 6 | |
| 15 | Cylinder head gasket | 20850047 | 1 | TH=1,44mm, Three dots |
| 15 | Cylinder head gasket | 20850048 | 1 | TH=1,34mm, Two dots |
| 15 | Cylinder head gasket, cylinder head | 20850049 | 1 | TH=1,24mm, One dot |
| 16 | Spring pin | 20459839 | 2 | |
| 17 | Glow plug | 20783049 | 6 | |
| 18 | Flange screw | 20459838 | 19 | |
| 19 | Gasket | 969011 | 2 | |
| 20 | Plug | 20405716 | 1 | M14 |
| 21 | Adapter | 20450683 | 1 | EDC IV |
| 22 | Sensor, coolant temperature | 20513340 | 1 | |
| 23 | Gasket | 947628 | 1 | |
| 24 | Bracket | 20799047 | 1 | |
| 24 | Bracket | 20799059 | 1 | Replaced by 20799047. |
| 25 | Bracket | 20799053 | 5 | |
| 25 | Bracket | 20799061 | 5 | Replaced by 20799053. |
| 26 | Bracket | 20799056 | 1 | |
| 26 | Bracket | 20799063 | 1 | Replaced by 20799056. |
| 27 | Flange screw | 20459837 | 7 | |
| 28 | Six point screw | 993275 | 7 | |
| 29 | Rocker arm | 20792876 | 12 | |
| 30 | Adjusting screw | 20913851 | 12 | |
| 31 | Hexagon nut | 11700373 | 12 | |
| 32 | Washer | 20794115 | 12 | |
| 33 | Gasket, valve cover | 20841035 | 1 | |
| 34 | Valve cover | 20841027 | 1 | Replaced by 21134620. |
| 34 | Valve cover | 21134620 | 1 | |
| 35 | Flange screw | 20412601 | 13 | |
| 36 | Filler cap | 20412589 | 1 | |
| 37 | Cap | 20412590 | 1 | |
| 38 | Gasket | 20840801 | 1 | |
| 39 | Oil separator | 20840827 | 1 | Replaced by 20933359 |
| 39 | Oil separator | 20933359 | 1 | |
| 40 | Hexagon screw | 20792158 | 6 | |
| 41 | Gasket | 20859647 | 2 | |
| 42 | Plug | 20798862 | 1 |
| Item | Part Name | Part No. |
| 16 | Spring pin 20459839 | 20459839 |
| Details | |
| Engine model | TAD620VE TAD650VE TAD660VE TD420VE, TAD420VE |
| Application | Cylinder Head Cylinder Head SN-10128117 Cylinder Head SN-10155363 Cylinder Head SN10128118- Cylinder Head SN10155364- |
