Spring pin 20799584

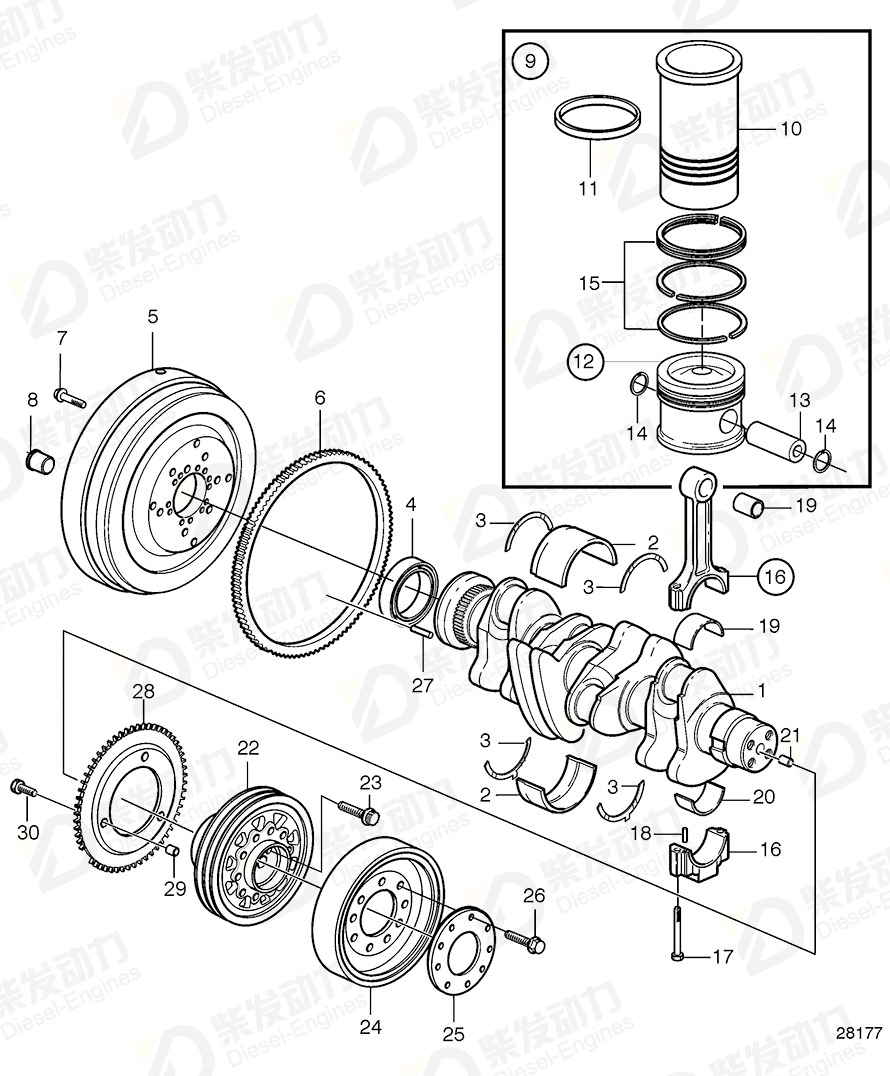

| No. | Part Name | Part Number | Qty | Description |
| 1 | Crankshaft | 21264836 | 1 | |
| 2 | Main bearing | 20405541 | 5 | U.S=0.50mm |
| 2 | Main bearing | 21141948 | 5 | Std |
| 2 | Main bearing | 21234191 | 5 | U.S=0,25mm, SN10594935- |
| 3 | Thrust washer | 21141955 | 2 | Std |
| 3 | Thrust washer | 21141963 | 2 | O.S=0.20mm (3.1mm) |
| 4 | Lip seal | 21486084 | 1 | |
| 5 | Flywheel | 20459129 | 1 | 0,87 kgm² |
| 6 | Starter gear ring | 21033328 | 1 | |
| 7 | Hexagon screw | 20450835 | 10 | |
| 8 | Expansion plug | 20405643 | 5 | |
| 9 | Cylinder liner kit | 20865990 | 4 | |
| 11 | O-ring | 20412762 | 8 | |
| 13 | Gudgeon pin | 20405577 | 4 | |
| 14 | Stay | 21119637 | 8 | |
| 15 | Piston ring kit | 21299547 | 4 | |
| 16 | Connecting rod | 20585982 | 4 | |
| 17 | Flange screw | 11700326 | 8 | |
| 18 | Grooved pin | 20459134 | 4 | |
| 19 | Bushing | 11700325 | 4 | |
| 20 | Bearing | 20565150 | 4 | Std, Only for original part 11700324 |
| 20 | Bearing | 20565188 | 4 | U.S=0.50mm, Only for 11700324 |
| 20 | Bearing | 20717211 | 4 | U.S=0.25mm, Only for 11700324 |
| 21 | Spring pin | 20405634 | 1 | 18X24 |
| 22 | Pulley | 20515162 | 1 | Without fan and for fan mounted on crankshaft, For left side mounted generator, (20460198) |
| 23 | Six point screw | 20405724 | 4 | |
| 24 | Vibration damper, (STD&3) | 20459925 | 1 | |
| 24 | Vibration damper | 21165424 | 1 | Mount with 21022723 and 970947 |
| 25 | Flange plate | 21022723 | 1 | For 20585446 |
| 26 | Flange screw | 995717 | 9 | for 21165424 |
| 27 | Spring pin | 20799584 | 1 | |
| 28 | Lock washer | 20972333 | 1 | |
| 29 | Spring pin | 20450838 | 1 | |
| 30 | Flange screw | 993357 | 3 | L=20mm |
| Item | Part Name | Part No. |
| 27 | Spring pin 20799584 | 20799584 |
| Details | |
| Engine model | TAD550GE, TAD551GE TAD560VE, TAD561VE, TAD761VE, TAD762VE, TAD763VE, TAD764VE, TAD765VE TAD734GE TAD750GE, TAD751GE TAD752GE, TAD753GE, TAD754GE TAD761VE, TAD762VE, TAD763VE, TAD764VE, TAD765VE |
| Application | Crank Mechanism Flywheel Flywheel for DANA C5000 Flywheel for SAE 10'' and 11 1/2'' |
| Specification | |
| Descriptions | SN 5310860900- |
