Spring retainer 468378

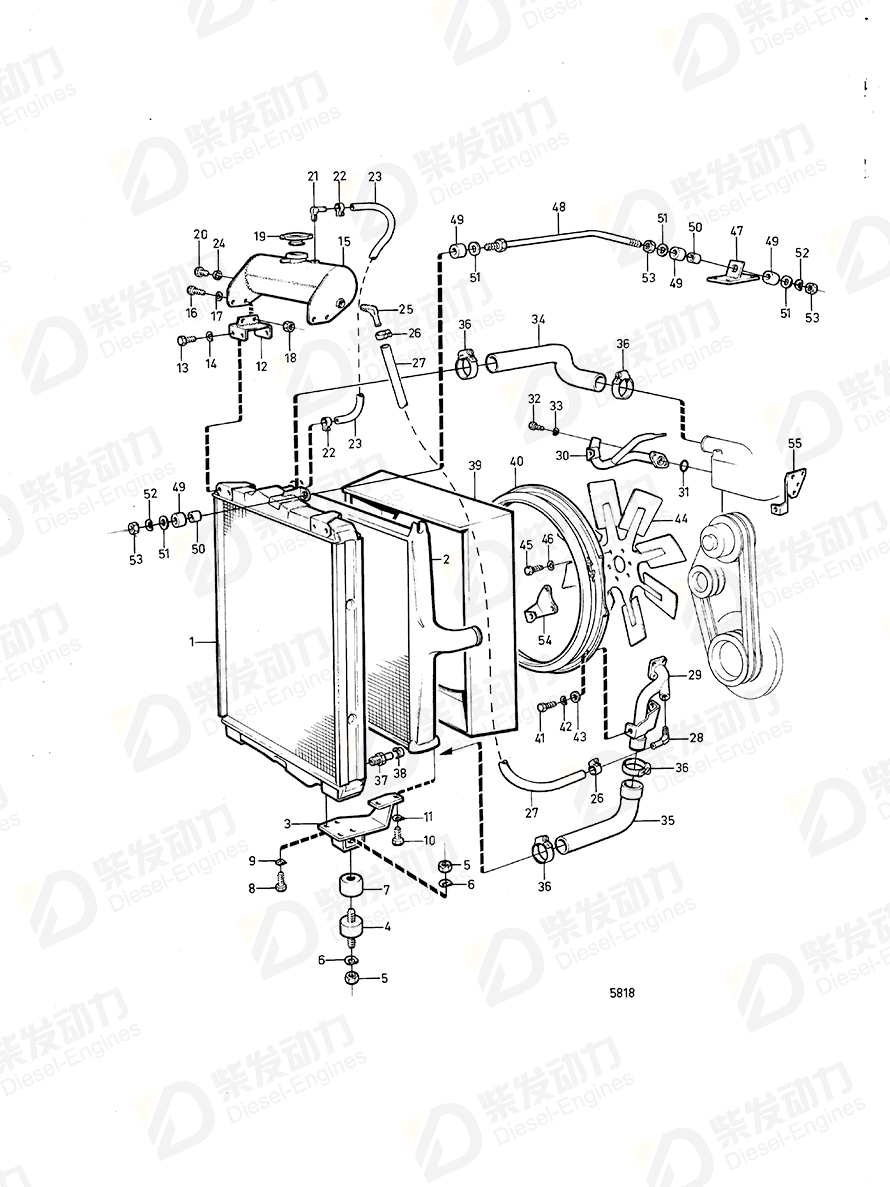

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 1544671 | 1 | |
| 3 | Radiator bracket | 845635 | 1 | LEFT |
| 3 | Radiator bracket | 845636 | 1 | RIGHT |
| 4 | Rubber cushion | 833720 | 2 | |
| 5 | Hexagon nut | 955850 | 4 | |
| 6 | Spring washer | 940280 | 4 | |
| 7 | Sleeve | 807228 | 2 | |
| 8 | Hexagon screw | 955295 | 8 | |
| 9 | Spring washer | 941907 | 8 | |
| 10 | Hexagon screw | 955297 | 4 | |
| 11 | Spring washer | 941907 | 4 | |
| 12 | Bracket | 845634 | 2 | |
| 13 | Hexagon screw | 955294 | 4 | |
| 14 | Spring washer | 941907 | 4 | |
| 15 | Expansion tank | 845436 | 1 | |
| 16 | Hexagon screw | 955296 | 4 | |
| 17 | Spring washer | 941907 | 4 | |
| 18 | Hexagon nut | 955782 | 4 | |
| 19 | Cover | 334687 | 1 | |
| 20 | Plug | 836268 | 1 | |
| 21 | Elbow nipple | 180283 | 1 | |
| 22 | Hose clamp | 943470 | 2 | |
| 23 | Hose | 13776 | 1 | L=450mm early type |
| 24 | Gasket | 957175 | 1 | |
| 25 | Hose nipple | 961604 | 1 | MOXXXXX/31956- |
| 26 | Hose clamp | 943471 | 2 | (951787) |
| 27 | Rubber hose | 943368 | 1 | L=4000mm |
| 28 | Elbow nipple | 942240 | 1 | |
| 29 | Connecting pipe | 844947 | 1 | |
| 30 | Connecting pipe | 476379 | 1 | |
| 31 | Sealing ring | 469477 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type (424345) |
| 32 | Hexagon screw | 940135 | 2 | |
| 33 | Spring washer | 941907 | 2 | |
| 34 | Hose | 845633 | 1 | |
| 35 | Hose | 845632 | 1 | |
| 36 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 37 | Hose nipple | 946121 | 1 | Early type |
| 38 | Protecting cap | 476279 | 1 | |
| 39 | Fan shroud | 845665 | 1 | |
| 40 | Fan ring | 476807 | 1 | Compl |
| 41 | Hexagon screw | 955294 | 4 | |
| 42 | Spring washer | 941907 | 4 | |
| 43 | Washer | 960141 | 4 | |
| 44 | Fan, pusher type | 843869 | 1 | D=750mm |
| 45 | Hexagon screw | 955535 | 6 | |
| 46 | Spring washer | 942336 | 6 | |
| 48 | Radiator stay | 845688 | 1 | |
| 49 | Rubber washer | 252203 | 4 | |
| 50 | Spacer sleeve | 252202 | 2 | |
| 51 | Washer | 191940 | 4 | |
| 52 | Spring washer | 941912 | 2 | |
| 53 | Hexagon nut | 955793 | 3 | |
| 54 | Spring retainer | 468378 | 1 | |
| 54 | Bracket | 844012 | 1 | |
| 55 | Bracket | 476438 | 1 |
| Item | Part Name | Part No. |
| 54 | Spring retainer 468378 | 468378 |
| Details | |
| Engine model | TID120FG TID120FPP TID121FG |
| Application | RADIATOR AND FAN WITH INSTALLATION COMPONENTS |
