Spring washer 941904

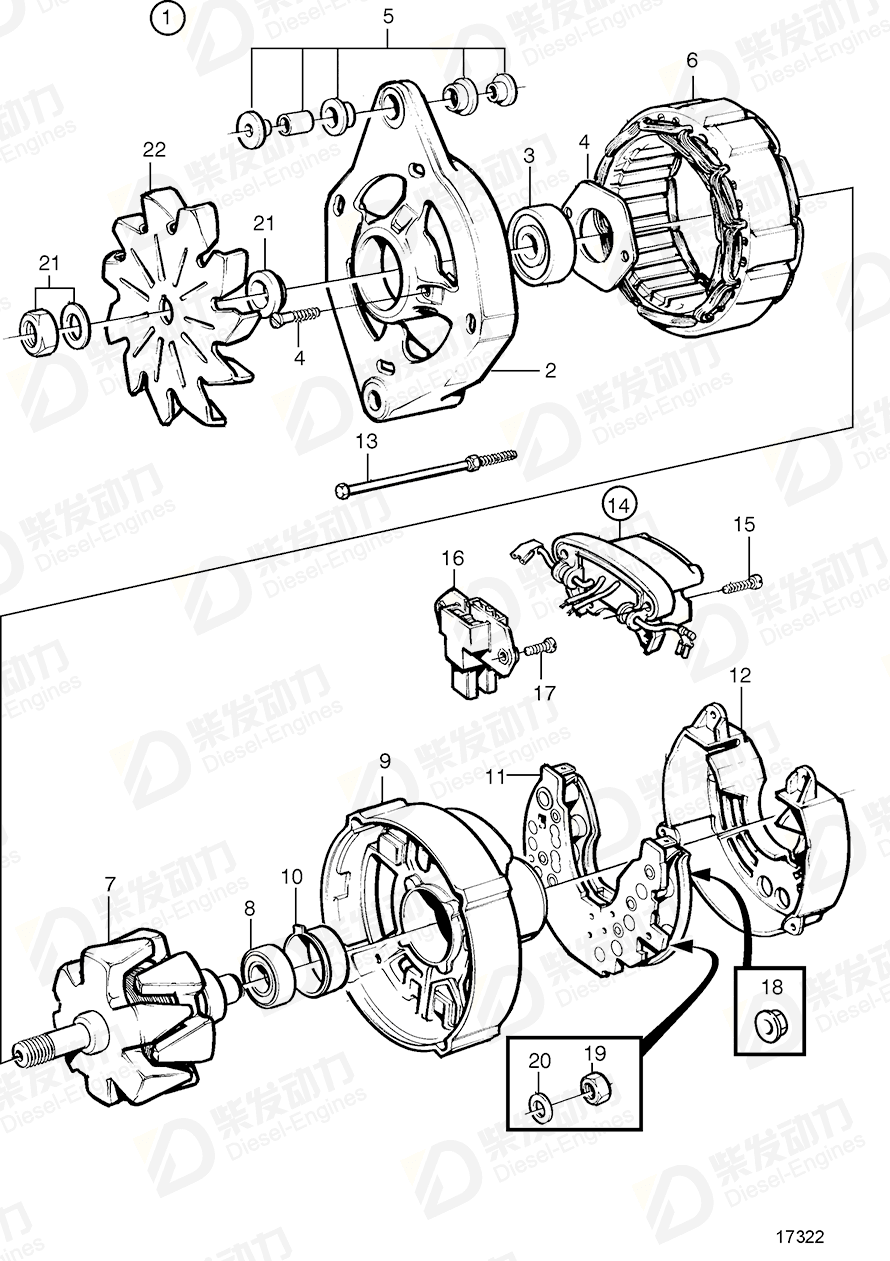

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 873757 | 1 | 28V 60A, repl by 873771 |
| 3 | Ball bearing | 847708 | 1 | |
| 4 | Bearing carrier | 847709 | 1 | |
| 5 | Guide | 840634 | 1 | |
| 6 | Stator | 864346 | 1 | |
| 8 | Ball bearing | 864351 | 1 | |
| 10 | Bearing race | 840629 | 1 | |
| 11 | Diode bridge | 1698689 | 1 | |
| 12 | Protecting casing | 847712 | 1 | |
| 13 | Screw kit | 847710 | 1 | |
| 14 | Regulator kit, with brush holder | 872368 | 1 | |
| 15 | Screw | 859312 | 4 | |
| 16 | Brush retainer | 840632 | 1 | |
| 17 | Screw | 859312 | 2 | |
| 18 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 18 | Flange nut | 965483 | 2 | |
| 19 | Hexagon nut | 955779 | 1 | |
| 20 | Spring washer | 941904 | 1 | |
| 21 | Nut set | 847706 | 1 | |
| 22 | Fan | 847707 | 1 | Included in alternator |
| Item | Part Name | Part No. |
| 20 | Spring washer 941904 | 941904 |
| Details | |
| Engine model | D100B, TD100A D100BHC D100BRC D120A D120A, TD120A D42A D70B D70CHC D70CRC TAD1030V TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230P TAD1230V, TWD1230VE TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TAD730V TD100AHC TD100ARC TD100CHC TD100CRC TD100G-87 TD100G-87, TD1030ME, TWD1030ME TD100G-87, TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD100HP-87, TD100HPB-87, TID100KP-87, TID100KPB-87 TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120HPP TD121CHC TD121CRC TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD121G-87, TWD1230VE, TWD1231VE TD121GP-87 TD60B TD60D-83 TD610G, TWD610G, TD710G, TWD710G, TAD730G, TWD740GE, TAD740GE, TAD741GE TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD61AP TD61AP, TD71AP, TID71AP TD630VE, TWD630VE, TD640VE TD70B TD70CHC TD70CRC TD70G TD70G-83 TD71A, TID71A TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TD71AP, TID71AP TD730VE, TWD731VE TID120FPP TID120HPP TID121FG TID121LP-87 TID162AG, TID162AGP, TID162AP, TID162APB TID60D TID60D, TID60DG TID60DG TID61AG TID70G TID70GPP TWD1210G, TWD1211G TWD1210P, TWD1211P TWD1210P, TWD1211P, TWD1210G, TWD1211G TWD1210V, TWD1211V TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD610G TWD610P TWD610P, TWD610PB, TWD710P, TWD710PB, TAD730P TWD610V TWD610V, TWD630VE TWD630ME TWD710P, TAD730P TWD710V |
| Application | Alternator Alternator 14V 50A, Components Alternator 14V 50A, Components: 872018 Alternator 14V 50A, Components: 872926 Alternator 14V 90A / 28V 45A, Components: 1578140 Alternator 14V 90A / 28V 45A, Components: 1578938 Alternator 24V Alternator 28V 45A, Components Alternator 28V 55A, Components Alternator 28V 60A, Components Alternator 28V 60A, Components: 863280 Alternator 28V 60A, Components: 864008 Alternator 28V 60A, Components: 872021 Alternator 28V 60A, Components: 873757 Alternator 28V 60A, Components: 873771 Alternator and Installation Components, Classed Engine: A Alternator and Installation Components, Classed Engine: B Alternator and Installation Components, Spec 867108, 867153 Alternator and Installation Components, Spec.867117 Alt Alternator SN-2160016584 Alternator with Installation Components Alternator&24V: 845940 Alternator&24V: 849563 Alternator, 14V 90A, Components Alternator: 1578140 Alternator: 1578938 Alternator: 1607362 Alternator: 6779261 Alternator: 845940 Alternator: 849563 Alternator: 872018 Alternator: 872926 Centrifugal Governor: 848003 Conn.box and Installation Comp., Classed Engine, Spec 867108, 86 Connecting Box and Installation Components Connecting Box and Installation Components, Classed Engine Control Motor Type ''Crouzet'' and Installation Comp, MOXXXXX/14584- Control Motor Type ''Crouzet'' and Installation Comp., MOXXXXX/14584-: A Control Motor Type ''Crouzet'' and Installation Comp., MOXXXXX/14584-: B Electrical Equipment ELECTRICAL EQUIPMENT: A ELECTRICAL EQUIPMENT: B ELECTRICAL EQUIPMENT: C ELECTRICAL EQUIPMENT: D Electrical System: A Electrical System: B Electrical System: C Electrical System: D Engine Speed Control, Cable Type SN-2120050801 Engine Speed Control, Cable Type SN2120050802- Fuel Injection Pump Fuel Injection Pump: 1542150 INDUCTION MANIFOLD AND INSTALLATION COMPONENTS Inlet Manifold Instrument Panel Instrument Panel and Installation Components Instrument Panel and Installation Components for Power Pack Instrument Panel and Installation Components, Power Pack INSTRUMENT PANEL AND INSTALLATION COMPONENTS: A INSTRUMENT PANEL AND INSTALLATION COMPONENTS: B INSTRUMENT PANEL AND INSTALLATION COMPONENTS: C INSTRUMENT PANEL FOR POWER PACK Instrument Panel for Power Pack, Spec.867290, 867285 Instrumentation INSTRUMENTATION, POWER PACK Instrumentation, Power Pack: A Instrumentation, Power Pack: B Manual Emergency Stop Control Classified Engine: A Manual Emergency Stop Control Classified Engine: B Manual Speed Control Manual Speed Control: A Manual Speed Control: B Speed Control, Control Cable Type Speed Control, Control Cable Type: A Speed Control, Control Cable Type: B Speed Control, Control Cable Type: C STARTER Starter: 240347 Starter: 870870 |
| Specification | |
| Descriptions | (241136) (241905) early type (FÖR/FOR M4) w (For M4) W * * Alt Early type For M4 For M4, W NOT INCLUDED. W W for M4 |
