Star connection 1140317

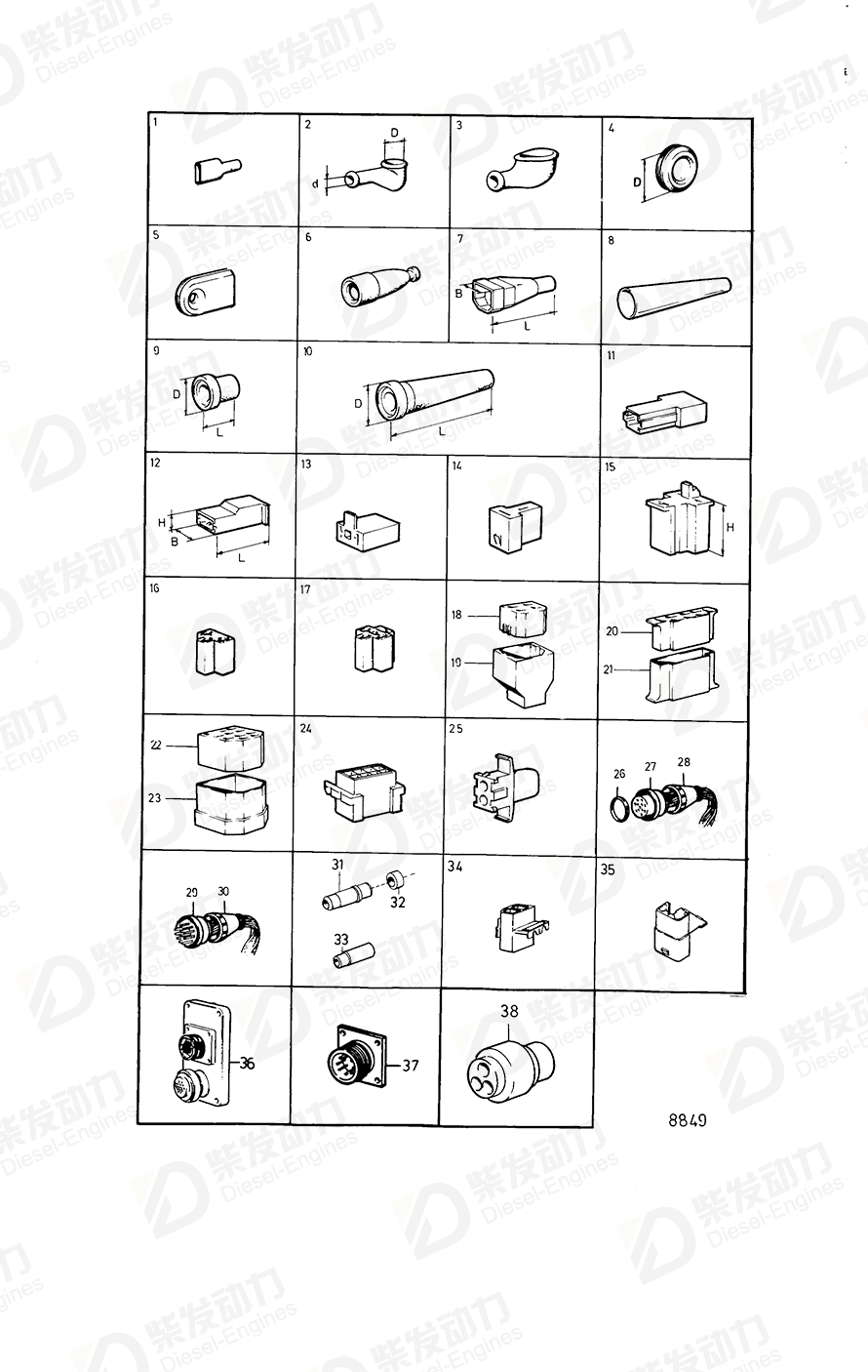

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Housing |
959046 |
1 |
I.d=9mm |
| 2 |
Rubber collar |
76614 |
1 |
D42A PP spec. 16053, 867638. |
| 2 |
Protective cap |
829200 |
1 |
0,5-1,0mm², red |
| 2 |
Protecting sleeve |
855281 |
1 |
(841234) |
| 3 |
Terminal cap |
673580 |
1 |
|
| 4 |
Protecting bushing |
821053 |
1 |
I.D=35mm |
| 4 |
Plug |
941269 |
1 |
Max 20mm², 12-pole |
| 5 |
Rubber bushing |
823759 |
1 |
|
| 6 |
Bellows |
1573077 |
1 |
|
| 6 |
Bellows |
1576005 |
1 |
|
| 7 |
Protective hat |
831966 |
1 |
L=88mm b=32,5mm |
| 8 |
Insulation |
844278 |
1 |
Red |
| 8 |
Insulation |
844279 |
1 |
Black |
| 9 |
Sealing collar |
847005 |
1 |
L=100mm D=20mm |
| 10 |
Sealing collar |
847005 |
1 |
L=100mm D=20mm |
| 12 |
Housing |
943511 |
1 |
6,3x1 natural |
| 12 |
Housing |
947848 |
1 |
4,8x1 natural |
| 12 |
Receptacle housing |
949181 |
1 |
|
| 12 |
Housing |
949597 |
1 |
6,3x1 natural |
| 12 |
Housing, receptacle housing |
964196 |
1 |
1-Way., For 958207 |
| 13 |
Housing |
1578937 |
1 |
6,3x2 natural |
| 14 |
Housing |
958210 |
1 |
6,3x2 black |
| 15 |
Housing |
945469 |
1 |
6,3x3 black |
| 15 |
Housing, insulator |
963374 |
1 |
3-way., Obsolete part, L=24mm |
| 16 |
Receptacle housing |
948854 |
1 |
3-way |
| 17 |
Housing |
1214948 |
1 |
6,3x5 black |
| 18 |
Housing |
948856 |
1 |
6,3x4 natural |
| 19 |
Housing |
948855 |
1 |
6,3x4 natural |
| 20 |
Housing |
941104 |
1 |
|
| 21 |
Housing |
941105 |
1 |
|
| 22 |
Housing |
945830 |
1 |
6,3x11 natural |
| 23 |
Tab housing |
945831 |
1 |
6,3x11 natural |
| 24 |
Housing |
944077 |
1 |
6,3x8 natural |
| 24 |
Housing |
948294 |
1 |
3,5x9 natural |
| 25 |
Housing |
948995 |
1 |
|
| 26 |
Sealing ring |
846615 |
1 |
|
| 27 |
Housing |
846612 |
1 |
16-pole |
| 28 |
Unloading cable |
846613 |
1 |
|
| 29 |
Block |
846647 |
1 |
16-pole |
| 30 |
Unloading cable |
846613 |
1 |
|
| 31 |
Insulator |
1608765 |
1 |
|
| 32 |
Seal |
1608766 |
1 |
|
| 33 |
Insulator |
1598753 |
1 |
3,5x2,5-4,5mm² |
| 34 |
Housing |
1307048 |
1 |
2-pole |
| 35 |
Housing |
1307049 |
1 |
2-pole |
| 36 |
Star connection |
1140317 |
1 |
|
| 37 |
Housing |
846611 |
1 |
16-pole |
| 38 |
Anode kit |
853498 |
1 |
3-pole |
| Item |
Part Name |
Part No. |
| 36 |
Star connection 1140317 |
1140317 |
| Details |
| Engine model |
TD100G, TD100HP-87, TID100K
TD120HP-86, TD121G, TID121K, TID121L-87 |
| Application |
Electrical Materials |
