Starter motor 1545418

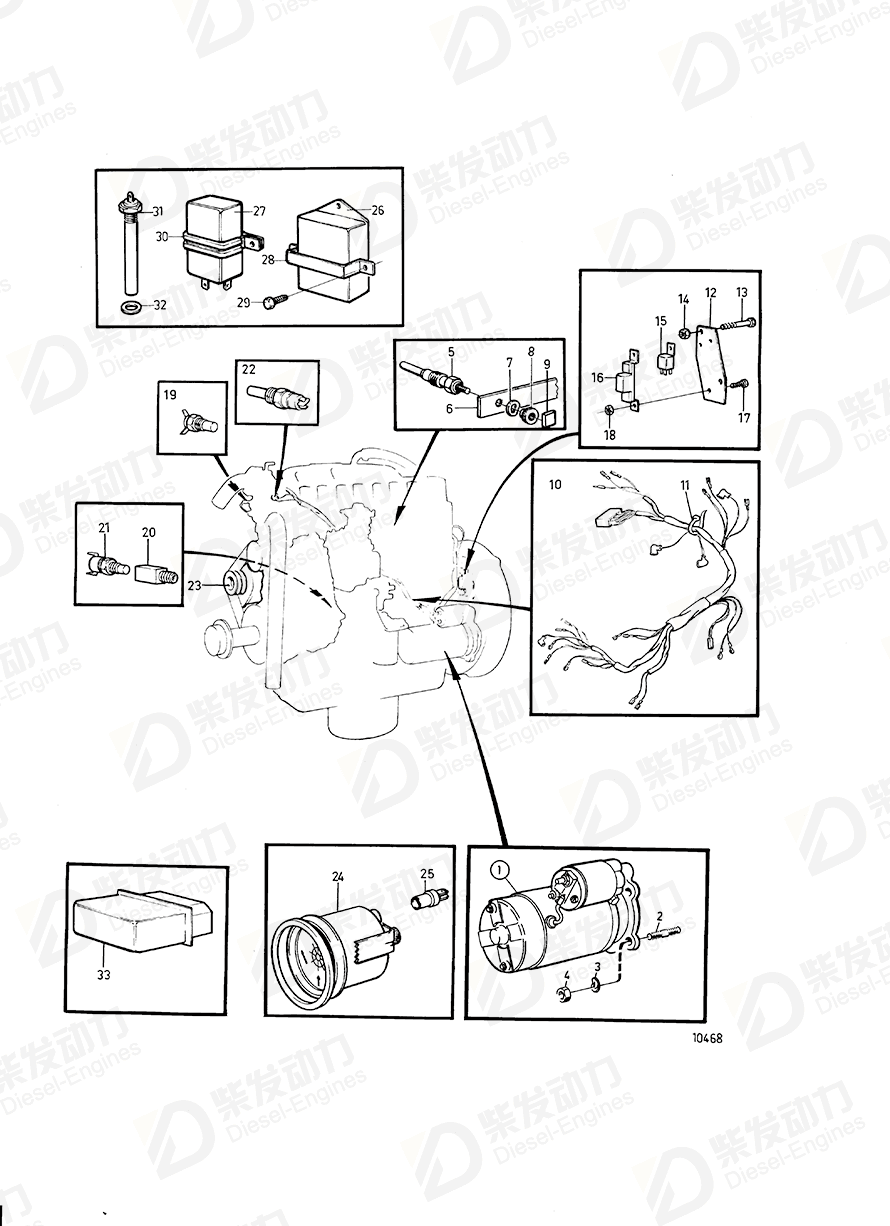

| No. | Part Name | Part Number | Qty | Description |
| 1 | Starter motor | 1545418 | 1 | |
| 2 | Stud | 953067 | 3 | |
| 3 | Spring washer | 941908 | 3 | |
| 4 | Hexagon nut | 955783 | 3 | |
| 5 | Glow plug | 838954 | 4 | |
| 6 | Glow rail | 1544108 | 1 | |
| 7 | Spring washer | 941905 | 4 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 8 | Hexagon nut | 955780 | 4 | |
| 9 | Protecting casing | 1542408 | 3 | |
| 10 | Cable block | 838956 | 1 | |
| 11 | Cable tie | 948210 | 1 | (827353) |
| 12 | Anchorage | 838960 | 1 | |
| 13 | Hexagon screw | 970961 | 2 | |
| 14 | Hexagon nut | 955783 | 2 | |
| 15 | Relay | 838955 | 1 | |
| 16 | Series resistance | 838953 | 1 | |
| 17 | Hexagon screw | 955268 | 3 | |
| 17 | Hexagon screw | 955293 | 1 | |
| 18 | Hexagon nut | 955781 | 3 | |
| 19 | Thermo monitor | 822858 | 1 | 93°C,later prod |
| 20 | Nipple | 42768 | 1 | |
| 21 | Pressure monitor | 864284 | 1 | Stop (848367) |
| 22 | Thermometer | 827149 | 1 | |
| 22 | Sensor | 827150 | 1 | AQ200D MO-11576, AQ225D MO-11736, AQ260A MO-11506, AQ290A MO-12259., Late type |
| 24 | Hour recorder | 844957 | 1 | (815138) |
| 25 | Bulb socket | 808176 | 1 | |
| 26 | Relay | 1501618 | 1 | Replaced by relay 1622515 and 1pc clamp 941772., Early type |
| 27 | Level relay | 1622515 | 1 | |
| 28 | Brace | 846728 | 1 | Repl by 941772 |
| 29 | Cross recessed screw | 955120 | 3 | |
| 30 | Clamp | 941772 | 1 | |
| 31 | Level sensor | 849371 | 1 | For expansion tank made of plastic., L=136mm |
| 31 | Level indicator | 1581232 | 1 | |
| 32 | Gasket | 11994 | 1 | |
| 33 | Timer relay | 863481 | 1 |
| Item | Part Name | Part No. |
| 1 | Starter motor 1545418 | 1545418 |
| Details | |
| Engine model | TD30A TD31ACE |
| Application | Electrical System and Instruments Starter Motor |
