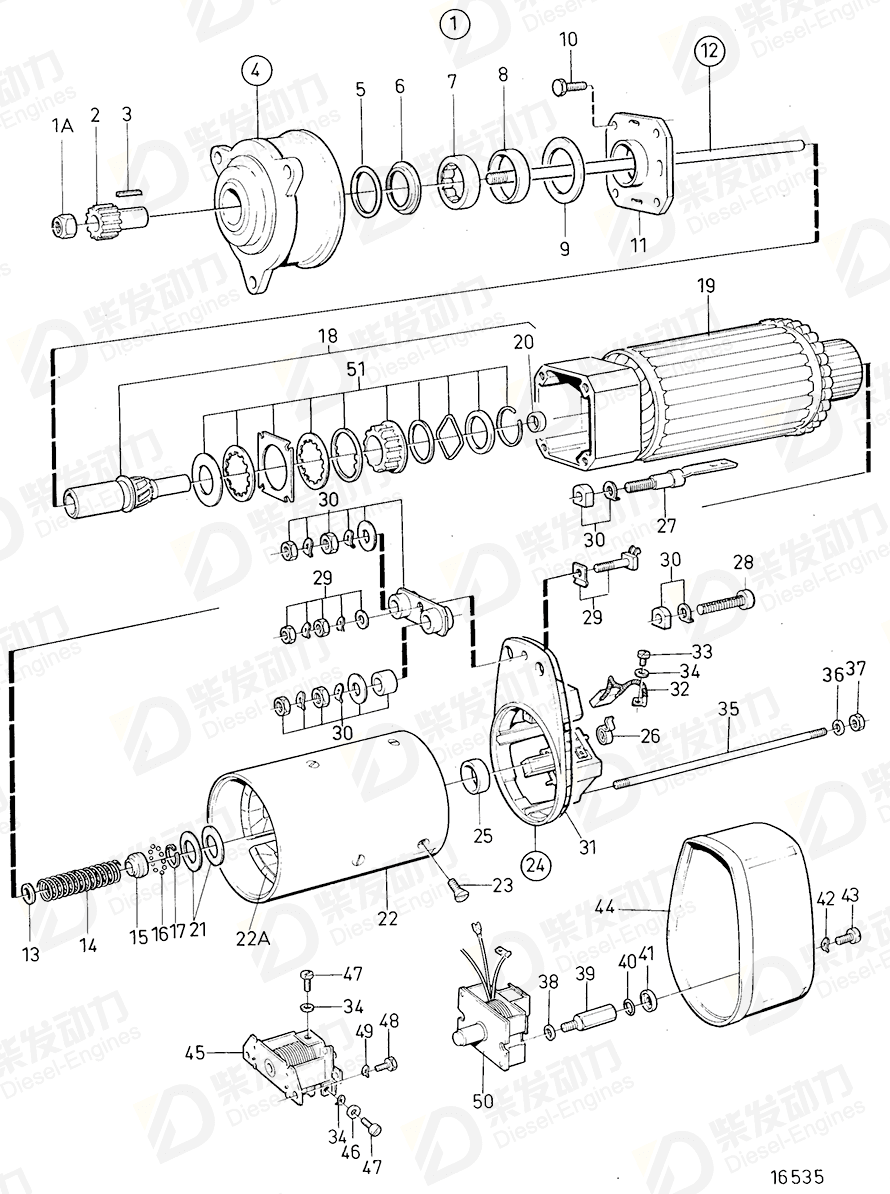

Starter motor 477049
| No. | Part Name | Part Number | Qty | Description |
| 1 | Starter motor | 477049 | 1 | 24V, alt. for 477782 |
| 3 | Key | 240473 | 1 | |
| 5 | Spring | 240451 | 1 | |
| 6 | Sealing ring | 240450 | 1 | |
| 7 | Needle bearing | 240453 | 1 | |
| 8 | Bearing bushing | 240455 | 1 | |
| 9 | Spacer washer | 240457 | 1 | |
| 10 | Screw | 848095 | 4 | |
| 11 | Bearing shield | 240456 | 1 | |
| 12 | Rotor shaft | 6643680 | 1 | |
| 13 | Washer | 844410 | 1 | |
| 14 | Compression spring | 6212617 | 1 | |
| 15 | Stop ring | 6212622 | 1 | |
| 16 | Ball | 184453 | 11 | (844412) |
| 17 | Lock ring | 240471 | 1 | |
| 18 | Disc clutch | 244539 | 1 | |
| 19 | Anchor | 6212614 | 1 | (6212706) |
| 1A | Nut | 1696396 | 1 | |
| 20 | Needle bearing | 243091 | 1 | |
| 21 | Shim | 240486 | 1 | TH=0.3mm |
| 21 | Shim | 240487 | 1 | TH=0.5mm |
| 21 | Shim | 241904 | 1 | TH=0.2mm |
| 23 | Screw | 847984 | 8 | |
| 25 | Bearing bushing | 240481 | 1 | |
| 26 | Brush spring | 240478 | 4 | |
| 29 | Small parts kit | 6643672 | 1 | |
| 30 | Small parts kit | 3094494 | 2 | |
| 31 | O-ring | 72225 | 1 | |
| 32 | Brush set | 3094854 | 1 | |
| 33 | Screw | 6643679 | 2 | |
| 34 | Washer | 940090 | 1 | |
| 35 | Bolt | 6643677 | 1 | |
| 35 | Bolt | 6643678 | 3 | |
| 37 | Hexagon nut | 955781 | 4 | |
| 38 | Washer | 240498 | 2 | |
| 39 | Bolt | 243713 | 2 | |
| 41 | Washer | 72201 | 2 | |
| 42 | Spring washer | 941906 | 2 | |
| 43 | Cross recessed screw | 956094 | 2 | |
| 44 | Protecting casing | 240496 | 1 | |
| 45 | Actuator solenoid | 240488 | 1 | |
| 46 | Spring washer | 941905 | 8 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 47 | Screw | 244218 | 6 | |
| 49 | Spring washer | 941907 | 2 | |
| 50 | Starter solenoid | 240493 | 1 | |
| 51 | Small parts kit | 6644414 | 1 | |
| 22A | Field winding | 6212612 | 1 | (6212705) |
| Item | Part Name | Part No. |
| 1 | Starter motor 477049 | 477049 |
| Details | |
| Engine model | TWD710V, TAD730V TWD730ME, TWD731ME |
| Application | Starter Motor, Components Starter Motor: C |
| Specification | |
| Descriptions | 24V 24V, alt. for 477782 |
