Starter switch 241315

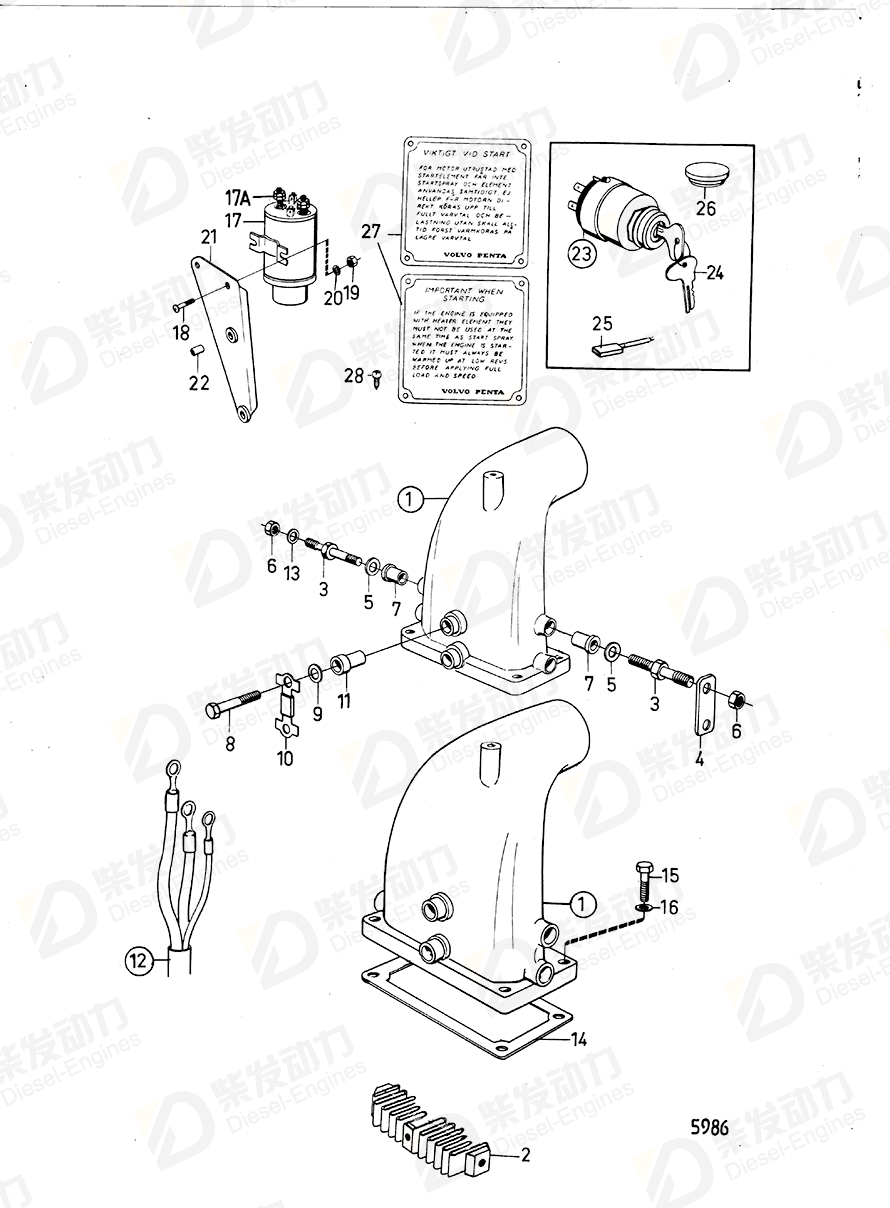

| No. | Part Name | Part Number | Qty | Description |
| 1 | Connecting pipe | 468257 | 1 | See group 3 |
| 2 | Belt element | 1505719 | 2 | |
| 3 | Screw | 1501520 | 4 | |
| 4 | Current bar | 1501519 | 1 | |
| 5 | Washer | 468809 | 4 | |
| 6 | Hexagon nut | 17624 | 4 | |
| 7 | Bushing | 468511 | 4 | |
| 8 | Hexagon screw | 955249 | 2 | |
| 9 | Washer | 191156 | 2 | |
| 10 | Striker plate | 468512 | 1 | |
| 11 | Sleeve | 468468 | 2 | |
| 12 | Cable block | 842364 | 1 | |
| 13 | Washer | 942239 | 2 | |
| 14 | Gasket | 468243 | 1 | When coolant supervision not is mounted |
| 15 | Hexagon screw | 940159 | 4 | |
| 16 | Spring washer | 941907 | 4 | |
| 17 | Relay | 1577376 | 1 | 24V 150A |
| 18 | Hexagon screw | 955245 | 2 | |
| 19 | Hexagon nut | 955780 | 2 | |
| 20 | Spring washer | 941905 | 2 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 21 | Bracket | 468258 | 1 | |
| 22 | Spacer sleeve | 821539 | 2 | L=14mm, spec 9762 |
| 23 | Starter switch | 241315 | 1 | |
| 24 | Key | 241383 | 2 | Åkerman spec. 867446. |
| 26 | Plug | 821386 | 1 | |
| 27 | Sign | 843947 | 1 | |
| 28 | Cross recessed screw | 955119 | 4 | |
| 17A | Hexagon nut | 17624 | 2 |
| Item | Part Name | Part No. |
| 23 | Starter switch 241315 | 241315 |
| Details | |
| Engine model | D100B D70B TD100A TD120A TD120C TD120G TD120GG TD60A TD60B TD60D TD70B TD70G |
| Application | Connecting Pipe and Starting Element with Installation Comp. Connecting Pipe and Starting Element with Installation Comp.: A Connecting Pipe and Starting Element with Installation Comp.: B Electrical System and Instrument Electrical System and Instrument: A Electrical System and Instrument: B ELECTRICAL SYSTEM AND INSTRUMENTS Instrument Panel Instrument Panel: 844850 Instrument Panel: 844857 Instrument Panel: 844860 Starting Element and Installation Components Starting Element and Installation Components: A Starting Element and Installation Components: B |
