Stop ring 1543906

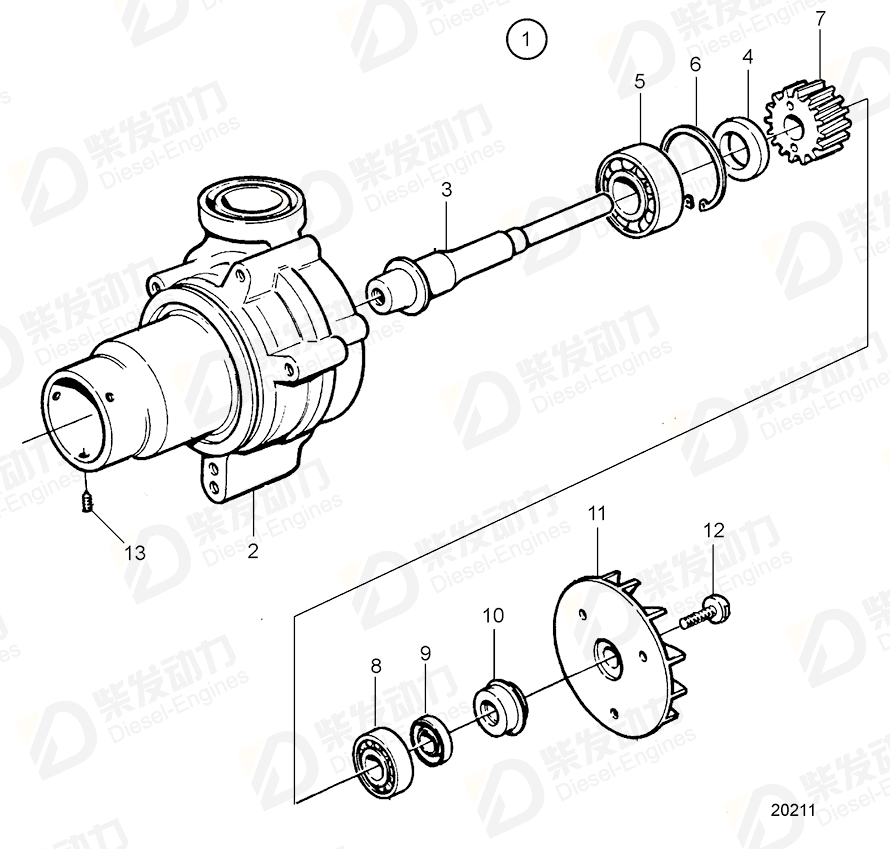

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump | 1556330 | 1 | Replaced by 8149980., SNXXXXX12949-24994 |
| 3 | Shaft | 1675920 | 1 | |
| 4 | Stop ring | 1543906 | 1 | |
| 5 | Ball bearing | 184526 | 1 | |
| 5 | Ball bearing | 184744 | 1 | |
| 6 | Snap ring | 914537 | 1 | |
| 7 | Gear | 1543452 | 1 | Can only be used together with set 276150., Can be replaced by drive gear 1556097 together with set 276871. |
| 8 | Roller bearing | 184743 | 1 | |
| 9 | Sealing ring | 958811 | 1 | Included in repair kit 3830711. |
| 10 | Sealing ring | 1676432 | 1 | Included in repair kit 3830711. |
| 11 | Impeller | 1556331 | 1 | For 1676432 |
| 12 | Screw | 1543188 | 1 | |
| 13 | Set screw | 968784 | 3 |
| Item | Part Name | Part No. |
| 4 | Stop ring 1543906 | 1543906 |
| Details | |
| Engine model | TD164KAE TWD1620G, TWD1630G TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE |
| Application | Water Pump, Components |
