Strap 20593473

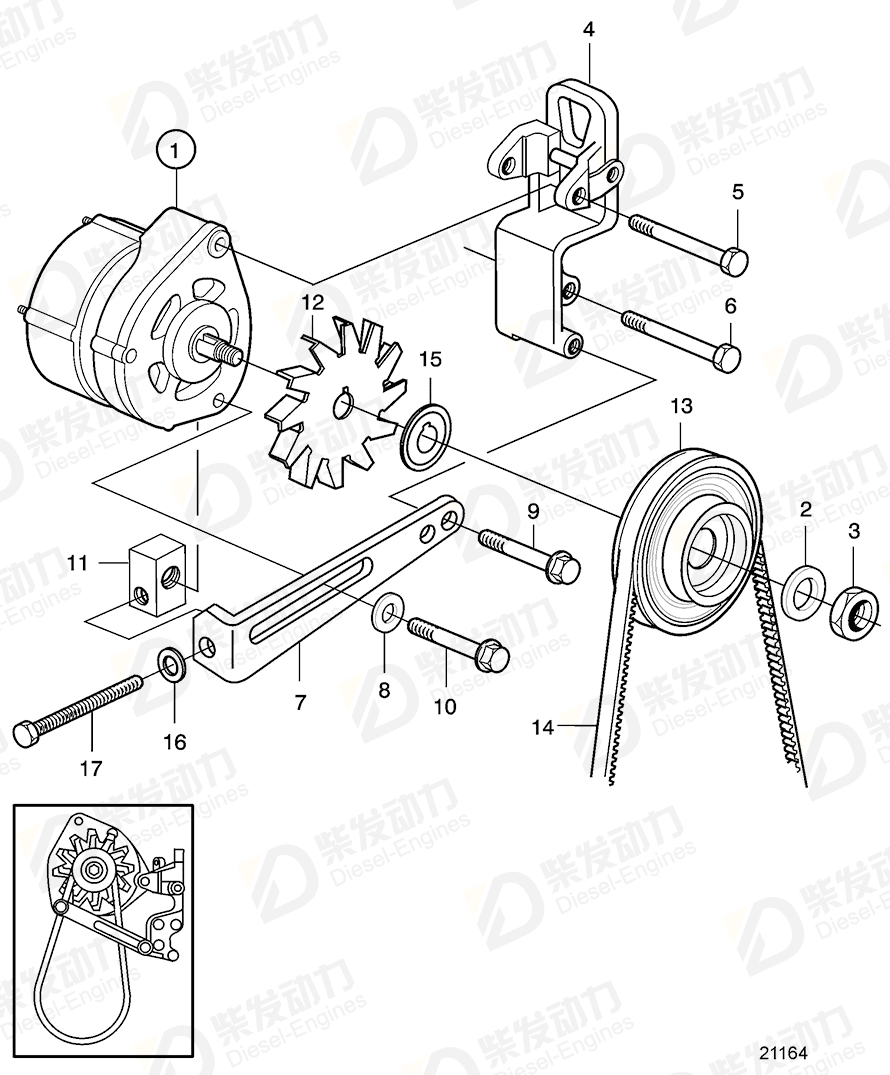

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 21801402 | 1 | |
| 2 | Spring washer | 941912 | 1 | |
| 3 | Hexagon nut | 20441521 | 1 | |
| 4 | Bracket | 20460360 | 1 | For separate fan bracket. |
| 5 | Screw | 20460363 | 1 | L=105mm |
| 6 | Screw | 20499738 | 4 | L=35mm |
| 7 | Strap | 20593473 | 1 | For separate fan bracket. |
| 8 | Washer | 20460365 | 1 | |
| 9 | Hexagon screw | 970947 | 1 | M10X25 |
| 10 | Flange screw | 984755 | 1 | |
| 11 | Tensioner | 20593398 | 1 | |
| 12 | Fan | 20459039 | 1 | |
| 13 | Pulley | 20593394 | 1 | |
| 14 | V-belt | 20593474 | 1 | For separate fan bracket., L=775mm |
| 15 | Back-up ring | 20405797 | 1 | |
| 16 | Washer | 20593409 | 1 | |
| 17 | Hexagon screw | 20516135 | 1 |
| Item | Part Name | Part No. |
| 7 | Strap 20593473 | 20593473 |
| Details | |
| Engine model | TAD520VE, TAD720VE, TAD721VE, TAD722VE |
| Application | Alternator, High Mounted Right Side (1) 28V 80A Alternator, High Mounted Right Side (2) 28V 80A |
| Specification | |
| Descriptions | For separate fan bracket. Without fan and for fan mounted on crankshaft, Without fan and for fan mounted on coolant pump. |
