Stud 21345127

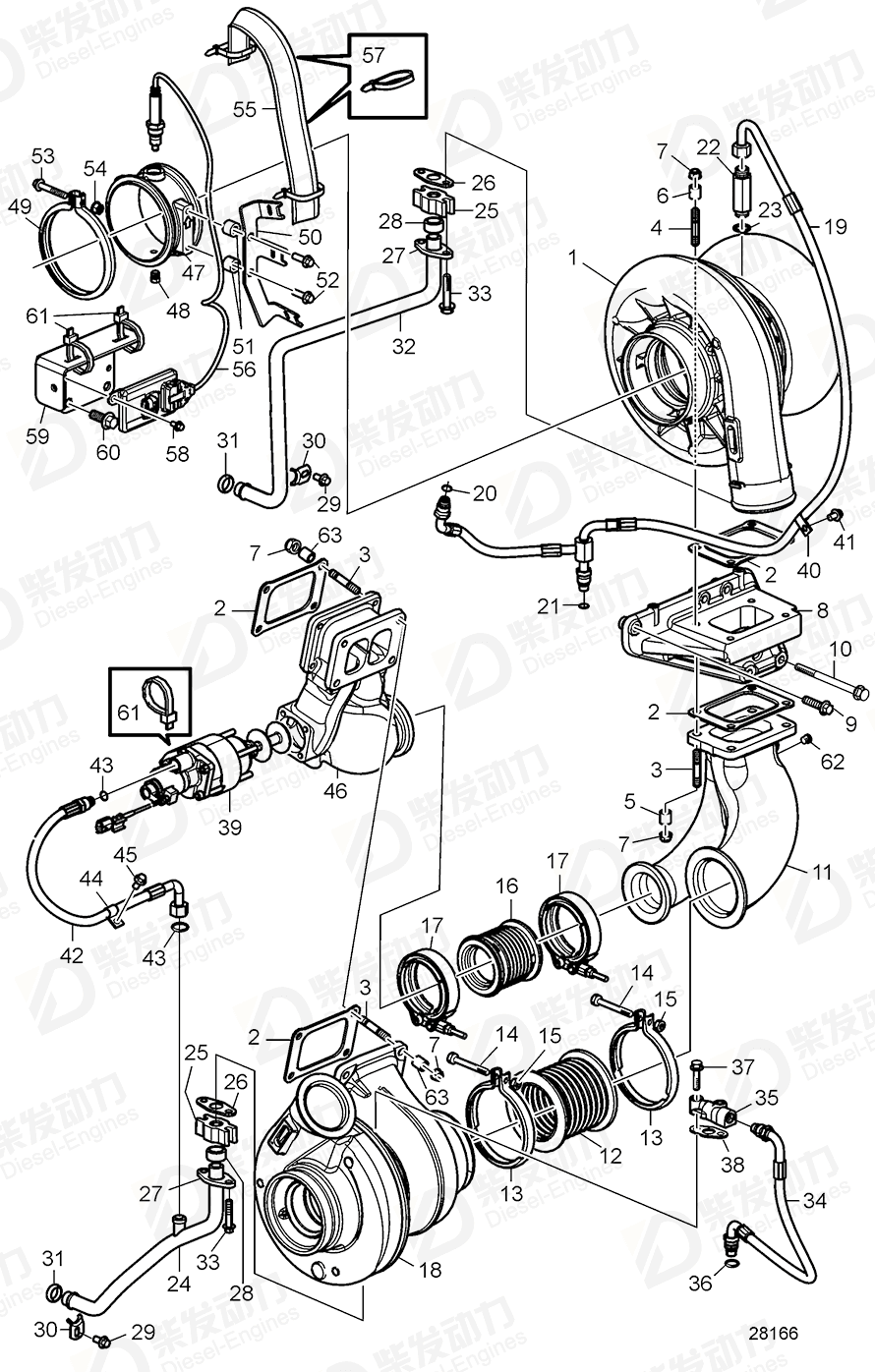

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3801142 | 1 | |
| 1 | Turbocharger | 3819093 | 1 | |
| 2 | Plane gasket | 20784537 | 4 | |
| 3 | Stud | 21345127 | 8 | |
| 4 | Stud | 977581 | 8 | |
| 5 | Spacer sleeve | 478344 | 4 | |
| 6 | Spacer sleeve | 60112113 | 4 | |
| 7 | Flange nut | 994628 | 16 | |
| 8 | Bracket | 3843827 | 1 | SN-2016103774 |
| 8 | Bracket | 23084660 | 1 | SN2016103775- |
| 9 | Flange screw | 984755 | 3 | |
| 10 | Flange screw | 984764 | 2 | |
| 11 | Exhaust pipe | 21664916 | 1 | |
| 12 | Exhaust pipe | 3840550 | 1 | |
| 13 | V-clamp | 21211715 | 2 | |
| 14 | Flange screw | 994441 | 2 | |
| 15 | Flange lock nut | 990950 | 2 | |
| 16 | Pipe connection | 21678508 | 1 | |
| 17 | V-clamp | 20755169 | 2 | |
| 18 | Turbocharger | 3801141 | 1 | |
| 19 | Oil feed hose | 22224558 | 1 | |
| 20 | O-ring | 976971 | 1 | |
| 21 | O-ring | 976014 | 1 | |
| 22 | Nipple | 3842682 | 1 | Replaced by 22815370 |
| 22 | Nipple | 22815370 | 1 | |
| 23 | Gasket | 11998 | 1 | |
| 24 | Oil return pipe | 21722882 | 1 | |
| 25 | Connector | 8148729 | 2 | |
| 26 | Plane gasket | 20707685 | 2 | |
| 27 | Pipe flange | 469543 | 2 | |
| 28 | Rubber moulding | 469601 | 2 | |
| 29 | Flange screw | 984733 | 2 | |
| 30 | Lock brace | 20844430 | 2 | |
| 31 | Sealing ring | 21940615 | 2 | |
| 32 | Oil return pipe | 3842071 | 1 | |
| 33 | Flange screw | 984738 | 4 | |
| 34 | Oil feed hose | 21725428 | 1 | |
| 35 | Flange | 8192268 | 1 | |
| 36 | O-ring | 976971 | 1 | |
| 37 | Flange screw | 984737 | 2 | |
| 38 | Plane gasket | 420641 | 1 | |
| 39 | By-pass valve | 22298262 | 1 | |
| 40 | Clamp | 190635 | 1 | |
| 41 | Flange screw | 984732 | 1 | |
| 42 | Hose | 21705423 | 1 | |
| 43 | O-ring | 976971 | 2 | |
| 44 | Clamp | 190635 | 1 | |
| 45 | Flange screw | 984733 | 1 | |
| 46 | Valve housing | 22345264 | 1 | |
| 47 | Exhaust pipe | 22298176 | 1 | |
| 48 | Plug | 479979 | 1 | |
| 49 | V-clamp | 467310 | 1 | |
| 50 | Bracket | 22285798 | 1 | |
| 51 | Spacer sleeve | 829653 | 2 | |
| 52 | Flange screw | 984735 | 2 | |
| 53 | Flange screw | 984739 | 1 | |
| 54 | Flange lock nut | 990950 | 1 | |
| 55 | Tube | 3170224 | 1 | |
| 56 | Sensor | 22219276 | 1 | |
| 56 | Sensor | 22827992 | 1 | |
| 57 | Cable tie | 862832 | 4 | |
| 58 | Flange screw | 984725 | 2 | |
| 59 | Bracket | 22280280 | 1 | |
| 60 | Flange screw | 984815 | 2 | |
| 61 | Cable tie | 948211 | 3 | |
| 62 | Plug | 966144 | 1 | |
| 63 | Spacer sleeve | 21528140 | 8 |
| Item | Part Name | Part No. |
| 3 | Stud 21345127 | 21345127 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TAD1643VE TAD1643VE-B TAD1650GE, TAD1651GE TAD1650VE-B, TAD1651VE TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1670VE, TAD1671VE, TAD1672VE TWD1643GE TWD1644GE, TWD1645GE TWD1652GE, TWD1653GE TWD1663GE TWD1672GE, TWD1673GE |
| Application | Turbocharger Turbocharger SN-2013598365 Turbocharger SN-2016098146 Turbocharger SN2013598366- Turbocharger SN2016098147- Turbocharger, High Mounted Turbocharger, Low Mounted Wastegare SN-2016103616 Wastegate SN2016103617- |
| Specification | |
| Descriptions | (20579303) (977299) |
