Stud 468891

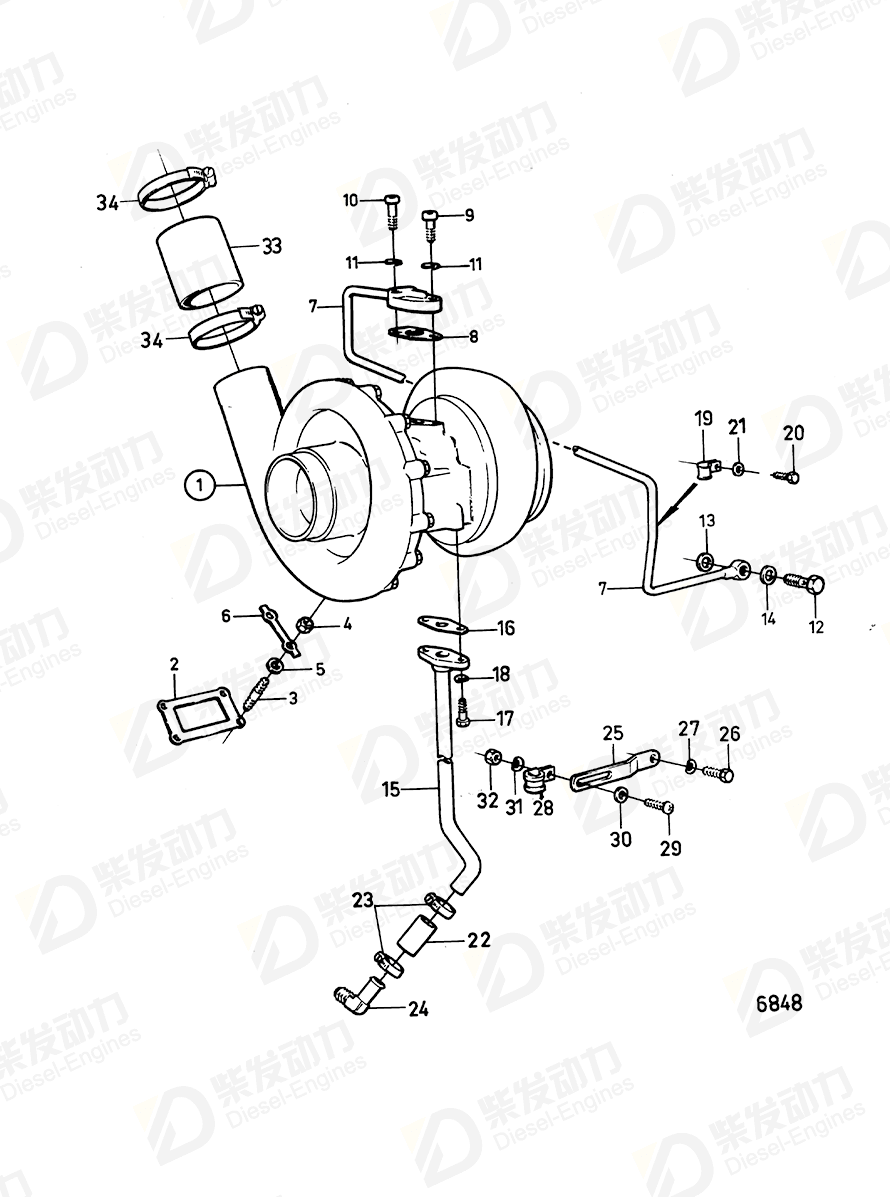

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbo | 470109 | 1 | |
| 1 | Turbocharger, exch | 3802071 | 1 | |
| 2 | Gasket | 470939 | 1 | Included in gasket kit for connecting of turbocharger. |
| 3 | Stud | 468891 | 4 | |
| 4 | Hexagon nut | 191894 | 4 | |
| 4 | Nut | 943152 | 4 | |
| 5 | Spacer sleeve | 470467 | 4 | |
| 6 | Lock washer | 468219 | 2 | |
| 7 | Oil pressure pipe | 845936 | 1 | |
| 8 | Plane gasket | 420641 | 1 | |
| 9 | Hex. socket screw | 956584 | 1 | L=25mm |
| 10 | Hex. socket screw | 956585 | 1 | L=32mm |
| 11 | Spring washer | 942336 | 2 | |
| 12 | Hollow screw | 942007 | 1 | (954394) |
| 13 | Gasket | 942703 | 1 | |
| 14 | Gasket | 11998 | 1 | |
| 15 | Oil return pipe | 468972 | 1 | |
| 16 | Gasket | 1543360 | 1 | |
| 17 | Hexagon screw | 940115 | 2 | |
| 18 | Spring washer | 941907 | 2 | |
| 19 | Clamp | 946834 | 1 | |
| 20 | Hexagon screw | 955534 | 1 | |
| 21 | Spring washer | 942336 | 1 | |
| 22 | Hose | 466328 | 1 | |
| 23 | Hose clamp | 943474 | 2 | |
| 24 | Elbow nipple | 468629 | 1 | TAMD70C,AQD70C. |
| 25 | Bracket | 414692 | 1 | MOXXXXX/109942- |
| 26 | Hexagon screw | 955534 | 1 | |
| 27 | Spring washer | 942336 | 1 | |
| 28 | Clamp | 952632 | 1 | Late type |
| 29 | Cross recessed screw | 950046 | 1 | |
| 30 | Washer | 955893 | 1 | |
| 31 | Spring washer | 941906 | 1 | |
| 32 | Hexagon nut | 955825 | 1 | Late type |
| 33 | Hose | 944378 | 1 | L=60mm |
| 34 | Gasket kit | 875841 | 1 | SEE GROUP 10A |
| 34 | Hose clamp | 943482 | 2 | (951798) |
| Item | Part Name | Part No. |
| 3 | Stud 468891 | 468891 |
| Details | |
| Engine model | TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V TD120G TD120GG TD120HPP TD1210G TD121G TD121G-87 TD121GG TD121GG-86 TD121GP-87 TD70G-83 TID120FG TID120HPP TID121FG TID121K, TID121KG, TID121KP TID121K-87, TID121KG-87, TID121KPB-87 TID121L-87, TID121LG, TID121LG-87, TID121LGP-87, TID121LP, TID121LP-87 TID70G TWD1210G TWD1210P, TWD1211P, TWD1211G TWD1210V, TWD1211V TWD1211G TWD1230ME TWD1230VE TWD1231VE |
| Application | Turbo and Installation Components Turbo and Installation Components: A Turbo and Installation Components: B Turbo and Installation Components: C Turbo and Installation Components: TD120HP86 TURBO AND INSTALLATION COMPONENTS: TID121FP Turbo, High Mounted SN-2120147401 Turbo, High Mounted SN2120147402- Turbo, High Mounted SNXXXXXXXXXX/147402-, SN-XXXXXXXXXX/238056 Turbo, High Mounted, SNXXXXXXXXXX/238057-: A Turbo, High Mounted, SNXXXXXXXXXX/238057-: B Turbocharger Turbocharger, High Mounted Turbocharger, High Mounted: A Turbocharger, High Mounted: B Turbocharger, High Mounted: C Turbocharger, Low Mounted Turbocharger, Low Mounted: A Turbocharger, Low Mounted: B Turbocharger: A Turbocharger: B |
