Stud 468892

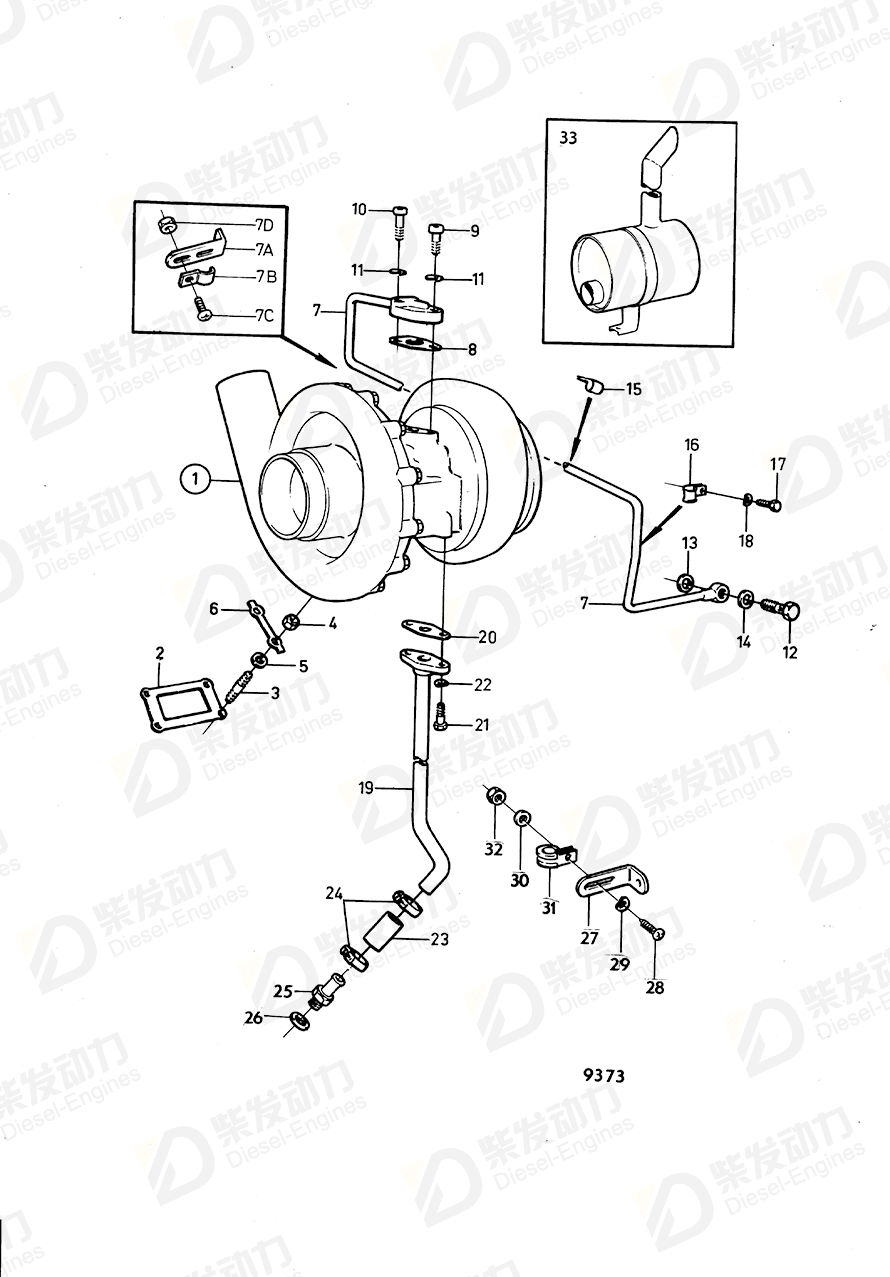

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger, turbo | 1545097 | 1 | Repl by 846652 |
| 1 | Turbocharger | 3802017 | 1 | (846652) |
| 2 | Gasket | 422779 | 1 | |
| 3 | Stud | 468892 | 4 | |
| 4 | Hexagon nut | 191894 | 4 | |
| 5 | Washer | 940097 | 4 | |
| 6 | Tab washer | 1545277 | 2 | Included in gasket kit. |
| 7 | Oil pressure pipe | 849612 | 1 | |
| 8 | Plane gasket | 420641 | 1 | |
| 9 | Hexagon screw | 955295 | 1 | |
| 10 | Hexagon screw | 955295 | 1 | |
| 11 | Spring washer | 941907 | 2 | |
| 12 | Hollow screw | 942007 | 1 | (954394) |
| 13 | Gasket | 942703 | 1 | |
| 14 | Gasket | 11998 | 1 | |
| 15 | Clamp | 968200 | 1 | |
| 16 | Clamp | 952626 | 1 | |
| 17 | Cross recessed screw | 950045 | 1 | |
| 18 | Spring washer | 941906 | 1 | |
| 19 | Oil return pipe | 862712 | 1 | SN-2100285314 |
| 20 | Plane gasket | 420643 | 1 | |
| 21 | Hex. socket screw | 959220 | 2 | |
| 22 | Spring washer | 941907 | 2 | |
| 23 | Hose | 466328 | 1 | |
| 24 | Hose clamp | 943474 | 2 | |
| 25 | Nipple | 941875 | 1 | |
| 26 | Gasket, plug | 18677 | 1 | |
| 27 | Bracket | 965560 | 1 | |
| 28 | Cross recessed screw | 950046 | 1 | |
| 29 | Washer | 955893 | 1 | |
| 30 | Spring washer | 941906 | 1 | |
| 31 | Clamp | 952632 | 1 | Late type |
| 32 | Hexagon nut | 955825 | 1 | Late type |
| 33 | Gasket kit | 876354 | 1 | |
| 7A | Bracket | 965559 | 1 | |
| 7B | Clamp | 968200 | 1 | |
| 7C | Cross recessed screw | 950046 | 1 | |
| 7D | Hexagon nut | 955825 | 1 | Late type |
| Item | Part Name | Part No. |
| 3 | Stud 468892 | 468892 |
| Details | |
| Engine model | TD1030ME TWD1030ME |
| Application | Turbo and Installation Components Turbocharger Turbocharger: B Turbocharger: TD100-87 |
