Stud 471596

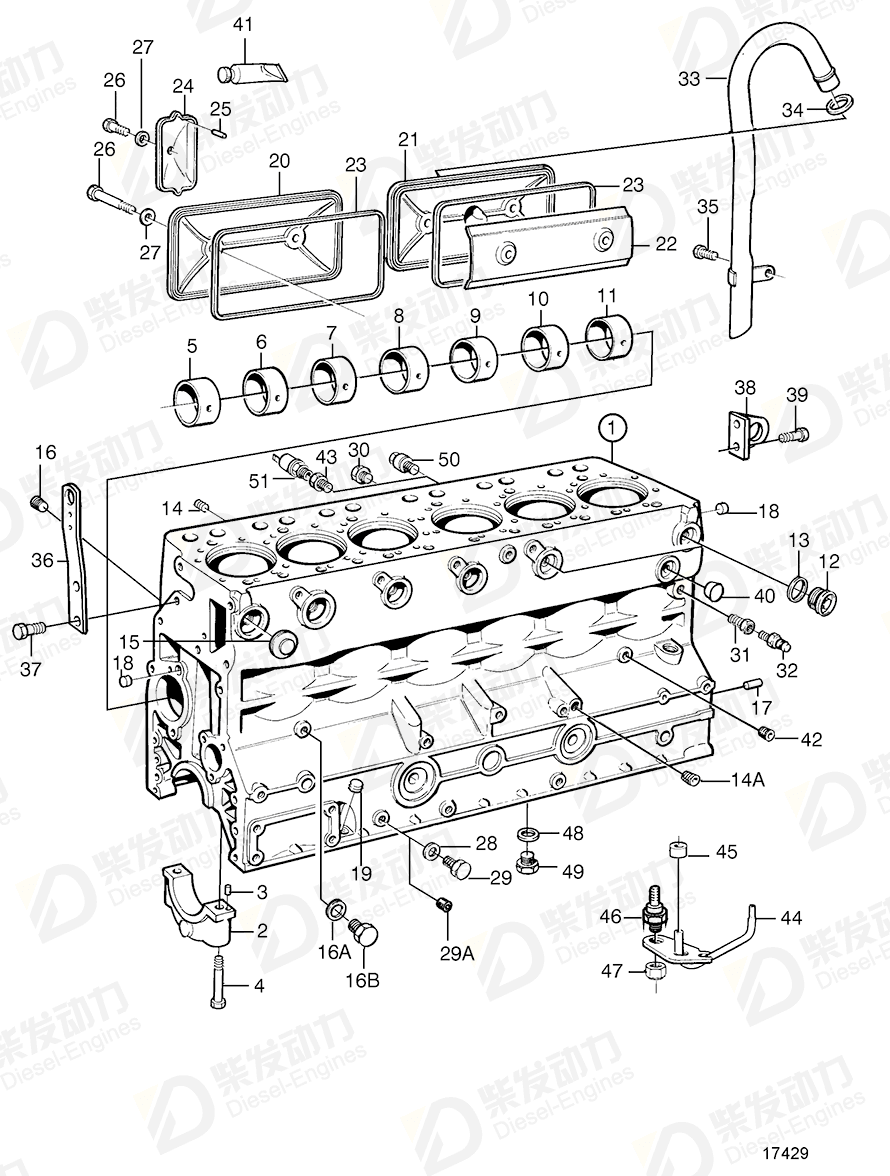

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 420990 | 1 | SN2061186155- |
| 3 | Pin | 422426 | 1 | |
| 4 | Flange screw | 465899 | 14 | |
| 5 | Bushing | 422076 | 1 | |
| 6 | Bushing | 422077 | 1 | |
| 7 | Bushing | 422078 | 1 | |
| 8 | Bushing | 422079 | 1 | |
| 9 | Bushing | 422080 | 1 | |
| 10 | Bushing | 422081 | 1 | |
| 11 | Bushing | 422082 | 1 | |
| 12 | Plug | 467367 | 2 | |
| 13 | Gasket | 469328 | 2 | |
| 14 | Plug | 422369 | 7 | |
| 15 | Expansion plug | 968955 | 4 | (941256) |
| 16 | Plug | 952075 | 2 | |
| 17 | Pin | 191171 | 2 | |
| 18 | Cap plug | 955082 | 6 | |
| 19 | Cap plug | 955082 | 1 | |
| 20 | Inspection cover | 420120 | 1 | |
| 21 | Inspection cover | 420121 | 1 | |
| 22 | Splash plate | 3978045 | 1 | (471858) |
| 23 | Gasket | 20591544 | 2 | |
| 24 | Cover | 471854 | 1 | |
| 25 | Spring pin | 951973 | 1 | |
| 26 | Shoulder screw | 471855 | 5 | |
| 27 | Sealing ring | 471856 | 5 | |
| 28 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 29 | Gasket | 969011 | 1 | |
| 30 | Plug | 479979 | 2 | |
| 31 | Nipple | 479954 | 1 | (190130) |
| 32 | Shut-off cock | 947893 | 1 | |
| 32 | Shut-off cock | 949918 | 1 | (82745) |
| 33 | Breather pipe | 848497 | 1 | |
| 34 | Sealing ring | 421158 | 1 | |
| 35 | Flange screw | 946440 | 1 | |
| 37 | Flange screw | 965191 | 2 | |
| 37 | Flange screw | 965194 | 1 | |
| 39 | Flange screw | 965191 | 2 | |
| 40 | Expansion plug | 420589 | 1 | |
| 41 | Sealant | 1161231 | 1 | 304ml |
| 42 | Plug | 952075 | 1 | |
| 43 | Nipple | 835980 | 1 | |
| 44 | Piston cooling jet | 477437 | 6 | |
| 45 | Sealing ring | 466874 | 6 | |
| 46 | Stud | 471596 | 6 | |
| 47 | Lock nut | 948570 | 6 | |
| 48 | Gasket | 947629 | 1 | |
| 49 | Plug | 966146 | 1 | |
| 14A | Plug | 968145 | 1 | (952357) |
| 16A | Gasket | 18665 | 1 | |
| 16B | Plug | 965768 | 1 | |
| 29A | Plug | 968062 | 1 |
| Item | Part Name | Part No. |
| 46 | Stud 471596 | 471596 |
| Details | |
| Engine model | TAD730G TAD730P TAD730V TD630VE TD640VE TD710G, TWD710G TD71A, TD71AW, TD71ACE, TD71AG, TD71AP TD71A, TID71A, TWD710V TD730ME, TWD731ME TD730VE, TWD731VE TID71A, TID71AG, TID71AP TWD630ME TWD630VE TWD710P TWD730ME TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Cylinder Block Cylinder Block and Related Parts Cylinder Block SN-2071097292: A Cylinder Block SN-2071097292: B Cylinder Block SN2071097293-: A Cylinder Block SN2071097293-: B Cylinder Block: A Cylinder Block: B Cylinder Block: SN-2071097292 Cylinder Block: SN2071097293- |
| Specification | |
| Descriptions | SN2061139523- |
