Stud 952997

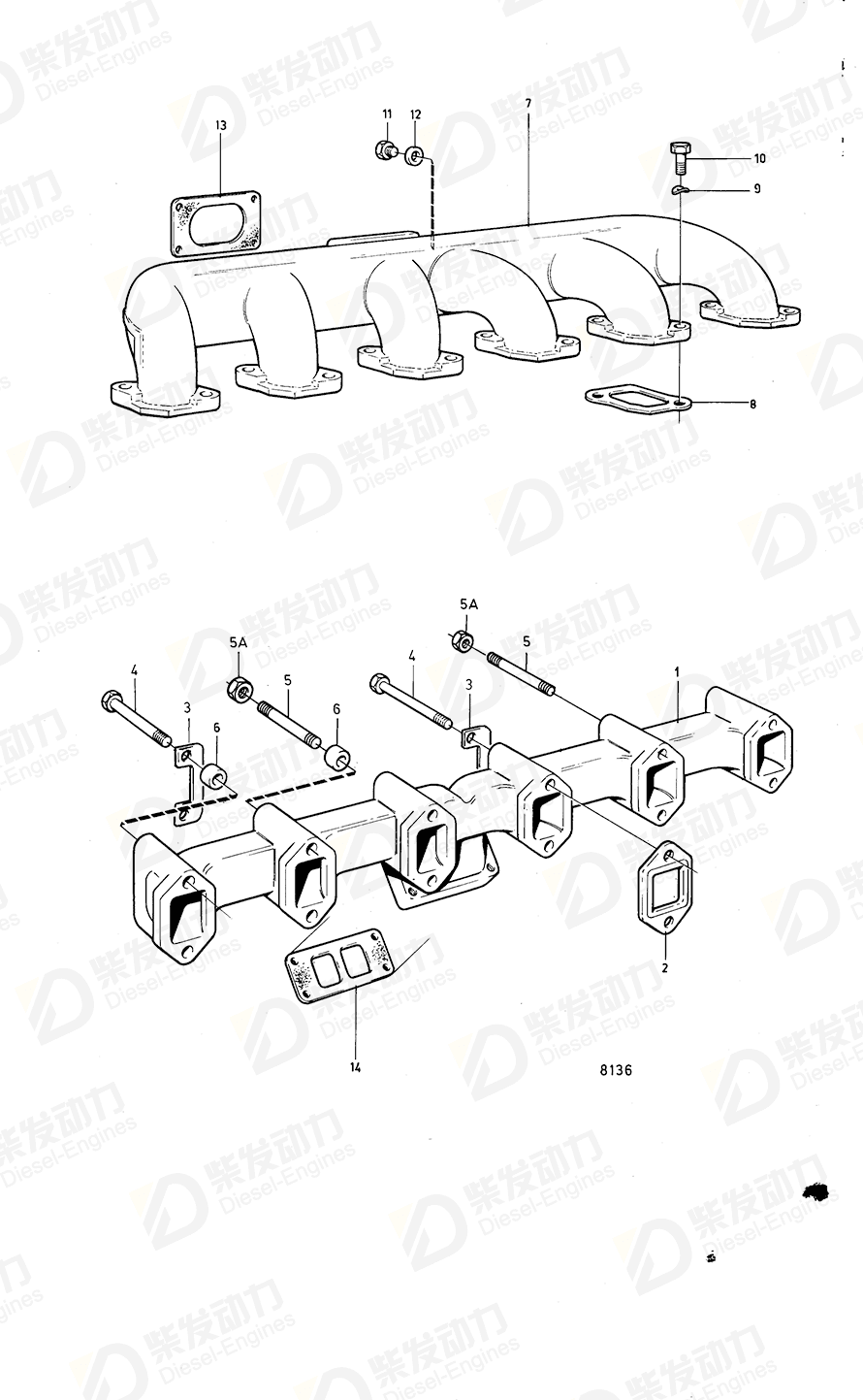

| No. | Part Name | Part Number | Qty | Description |
| 1 | Exhaust pipe | 1542290 | 1 | |
| 2 | Gasket | 1542123 | 6 | |
| 3 | Tab washer | 1545128 | 6 | |
| 4 | Hexagon screw | 955329 | 4 | |
| 4 | Hexagon screw | 955330 | 8 | Early prod,L=100mm |
| 5 | Stud | 952997 | 2 | Later prod,L=100mm |
| 5 | Stud | 952999 | 10 | Later prod,L=110mm |
| 6 | Spacer sleeve | 823575 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 7 | Inlet manifold | 1542288 | 1 | |
| 8 | Gasket | 1542289 | 6 | |
| 9 | Spring washer | 941907 | 12 | |
| 10 | Hexagon screw | 940142 | 12 | ÅKERMAN. |
| 11 | Plug | 960628 | 1 | |
| 12 | Gasket | 957173 | 1 | |
| 13 | Gasket | 1542292 | 1 | |
| 14 | Gasket | 421324 | 1 | |
| 5A | Flange lock nut | 471622 | 12 |
| Item | Part Name | Part No. |
| 5 | Stud 952997 | 952997 |
| Details | |
| Engine model | TD30A TD31ACE TD40A |
| Application | Inlet and Exhaust Manifold |
| Specification | |
| Descriptions | L=100mm Later prod,L=100mm |
