Stud 953245

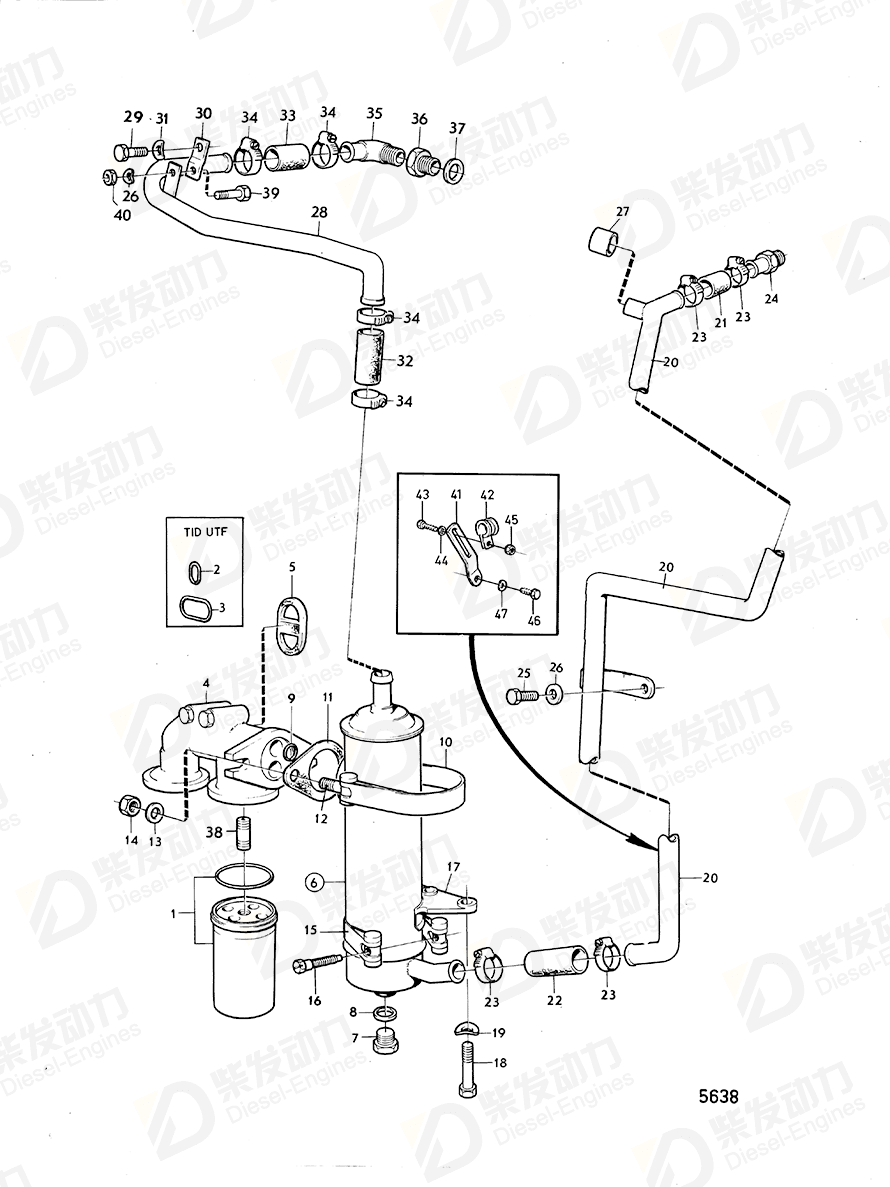

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil filter | 4785974 | 1 | |
| 2 | O-ring | 422551 | 1 | D70B spec. 867221., Early type |
| 3 | Sealing ring | 469481 | 1 | D70B spec. 867221., Early type (424334) |
| 4 | Housing | 468319 | 1 | Repl by valve lifter 1542208 and push rod 1542207., See group 2B |
| 5 | Gasket | 469484 | 1 | Repl by valve lifter 1542208 and push rod 1542207., See group 2B |
| 6 | Oil cooler | 468035 | 1 | Repl by 1544501 |
| 6 | Oil cooler | 1544501 | 1 | |
| 7 | Plug | 16318 | 1 | |
| 8 | Gasket | 907132 | 1 | |
| 9 | Sealing ring | 469483 | 2 | (422581) |
| 10 | Strap | 468044 | 1 | For spec 867189 MO-XXXX/21742-., Early type |
| 10 | Tensioning band | 1545255 | 1 | Late type |
| 11 | Guide washer | 468076 | 1 | |
| 12 | Stud | 924070 | 2 | Late type |
| 12 | Stud | 953245 | 2 | Early type |
| 13 | Washer | 960141 | 2 | |
| 14 | Hexagon nut | 955782 | 2 | |
| 14 | Hexagon nut | 955826 | 2 | |
| 15 | Tensioning band | 1545256 | 1 | (468659) early type |
| 16 | Hexagon screw | 31406 | 1 | |
| 16 | Hexagon screw | 1545257 | 1 | Late type |
| 17 | Bracket | 467129 | 1 | |
| 18 | Hexagon screw | 955525 | 2 | |
| 19 | Spring washer | 941907 | 2 | |
| 20 | Tube | 467543 | 1 | MO-XXXXX/109941 |
| 20 | Tube | 467664 | 1 | MOXXXXX/109942- |
| 21 | Hose | 467538 | 1 | MOXXXXX/109942- |
| 21 | Rubber hose | 943369 | 1 | L=165 mm |
| 22 | Hose | 467538 | 1 | MOXXXXX/109942- |
| 23 | Hose clamp | 994559 | 4 | |
| 24 | Hose nipple | 942691 | 1 | |
| 25 | Hexagon screw | 940113 | 1 | |
| 26 | Spring washer | 941907 | 2 | |
| 27 | Cap | 842235 | 1 | |
| 28 | Tube | 467158 | 1 | |
| 29 | Hexagon screw | 955558 | 1 | |
| 30 | Anchorage | 843355 | 1 | |
| 31 | Spring washer | 940280 | 1 | |
| 32 | Rubber hose | 943369 | 1 | L=165 mm |
| 33 | Rubber hose | 943369 | 1 | L=165 mm |
| 34 | Hose clamp | 994559 | 4 | |
| 35 | Elbow nipple | 942590 | 1 | |
| 36 | Nipple | 422550 | 1 | |
| 37 | Gasket | 468463 | 1 | |
| 38 | Nipple | 423067 | 1 | |
| 39 | Hexagon screw | 955293 | 1 | |
| 40 | Hexagon nut | 955782 | 1 | |
| 41 | Bracket | 414692 | 1 | MOXXXXX/109942- |
| 42 | Clamp | 952632 | 1 | Late type |
| 43 | Cross recessed screw | 950046 | 1 | |
| 44 | Washer | 955893 | 1 | |
| 45 | Hexagon nut | 955825 | 1 | Late type |
| 46 | Hexagon screw | 940098 | 1 | |
| 47 | Spring washer | 941907 | 1 |
| Item | Part Name | Part No. |
| 12 | Stud 953245 | 953245 |
| Details | |
| Engine model | D100B, TD100A TD120A TD120C TD120G TD120GG TID120FG TID70G |
| Application | Oil Cooler and Installation Components Oil Cooler, Side Mounted Turbo and Installation Components |
| Specification | |
| Descriptions | Alt Early type |
