Stud 953276

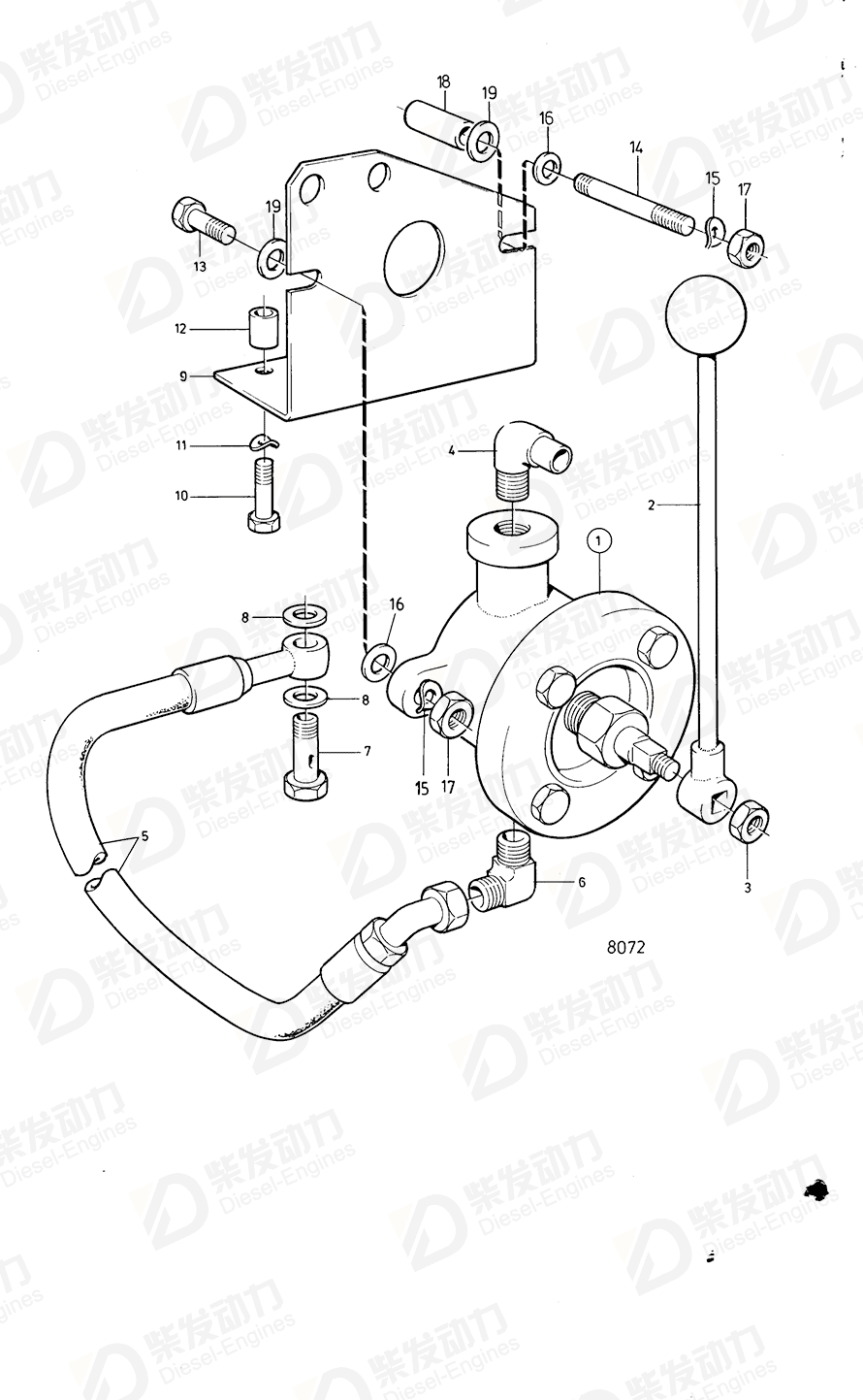

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil bilge pump | 805999 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 2 | Handle | 821713 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 3 | Hexagon nut | 955783 | 1 | |
| 4 | Hose nipple | 961610 | 1 | (803490) |
| 5 | Rubber hose | 821944 | 1 | Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 6 | Elbow nipple | 957111 | 1 | Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 7 | Hollow screw | 191929 | 1 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053. |
| 8 | Gasket | 957185 | 2 | |
| 9 | Bracket | 842332 | 1 | For bracket 829839 with 8 holes. |
| 10 | Hexagon screw | 940159 | 2 | |
| 11 | Spring washer | 941907 | 2 | |
| 12 | Spacer sleeve | 821539 | 2 | L=14mm, spec 9762 |
| 13 | Hexagon screw | 955535 | 1 | |
| 14 | Stud | 953276 | 1 | |
| 15 | Spring washer | 942336 | 2 | |
| 16 | Washer | 960148 | 2 | Spec. 867446, 867477, 867494, 867630, 867618., MAFI spec. 867578. |
| 17 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 18 | Spacer sleeve | 821542 | 1 | L=51mm |
| 19 | Washer | 940097 | 2 |
| Item | Part Name | Part No. |
| 14 | Stud 953276 | 953276 |
| Details | |
| Engine model | TD60B TD60D TD60D-83, TID60DG |
| Application | Oil Sump Pump and Installation Components OIL SUMP PUMP AND INSTALLATION COMPONENTS, ALT |
