Suction pipe 3827686

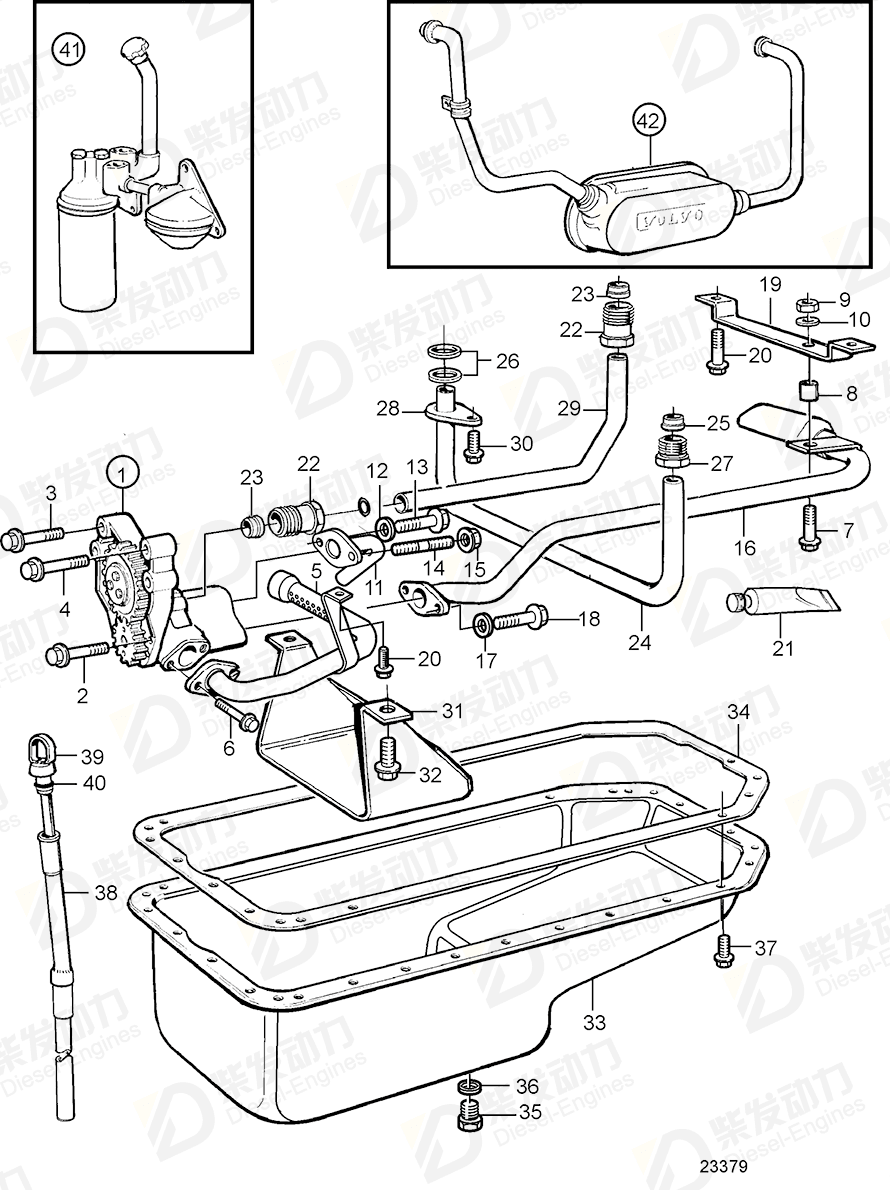

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 11030633 | 1 | |
| 2 | Flange screw | 465899 | 2 | |
| 3 | Flange nut | 471513 | 4 | |
| 4 | Flange screw | 471734 | 2 | |
| 5 | Suction pipe | 3827686 | 1 | (862212) |
| 6 | Flange screw | 946173 | 2 | |
| 7 | Hexagon screw | 955274 | 1 | |
| 8 | Spacer washer | 946048 | 1 | |
| 9 | Flange lock nut | 949278 | 1 | |
| 10 | Washer | 955892 | 1 | |
| 11 | Evacuation pipe | 3829332 | 1 | (862223) |
| 12 | Washer | 955894 | 2 | |
| 13 | Hexagon screw | 955312 | 1 | |
| 14 | Stud | 947611 | 1 | |
| 15 | Hexagon nut | 955782 | 1 | |
| 16 | Suction pipe | 862214 | 1 | |
| 17 | Washer | 955894 | 2 | |
| 18 | Hexagon screw | 955312 | 2 | |
| 19 | Bracket | 849882 | 1 | |
| 20 | Flange screw | 946440 | 2 | |
| 21 | Sealant | 1161231 | 1 | 304ml |
| 22 | Oil feed pipe | 471588 | 2 | |
| 23 | Ferrule | 980786 | 2 | |
| 24 | Oil pressure pipe, piston cooling | 420996 | 1 | (471594) |
| 25 | Ferrule | 980786 | 1 | |
| 26 | Gasket | 471956 | 2 | |
| 27 | Pressure pipe connec | 471595 | 1 | |
| 28 | Clamp | 471746 | 1 | |
| 29 | Oil pressure pipe | 862213 | 1 | |
| 30 | Flange screw | 946440 | 1 | |
| 31 | Oil reservoir | 3826158 | 1 | (862216) |
| 32 | Flange screw | 946440 | 2 | |
| 33 | Oil sump | 847688 | 1 | |
| 34 | Gasket | 11030778 | 1 | (865341) |
| 35 | Magnetic plug | 20571854 | 1 | |
| 36 | Gasket | 18813 | 1 | |
| 37 | Flange screw | 946440 | 34 | |
| 38 | Tube | 3837267 | 1 | (848700) |
| 39 | Oil dipstick | 862446 | 1 | |
| 40 | O-ring, bearing housing | 925054 | 1 |
| Item | Part Name | Part No. |
| 5 | Suction pipe 3827686 | 3827686 |
| Details | |
| Engine model | TD610V, TWD630VE TD630VE TD640VE TD71A, TID71A, TD730VE, TWD731VE TWD740VE |
| Application | Lubricating System, 40° Inclination, Low Sump Lubricating System, 40° Inclination, Low Sump: A Lubricating System, 40° Inclination, Low Sump: B |
| Specification | |
| Descriptions | (862212) |
