  • Brandsvolvo penta
  • Part No.: 21663772
  • Availability: 联系我们
No. Part Name Part Number Qty Description
1 Radiator 21883422 1
2 Charge air cooler 22080936 1
3 Fan shroud 22080951 1
4 Grille, right 21188620 1
5 Fan shroud, left 21663749 1
6 Flange screw 20797247 2
7 Washer 20549890 2
8 Hexagon nut 993787 2
9 Six point screw 21664109 14 SN-11102007
10 Screw 20405653 2
11 Screw 21087598 2
12 Bracket, left 21188784 1
13 Bracket, right 21188785 1
14 Bracket 21188762 1
15 Bracket 21188765 1
17 Flange screw 20755314 2
18 Flange screw 20797247 2
19 Support 21663772 1
20 Washer 20551709 4
21 Hexagon nut 971071 2
22 Drain valve 22381326 1
24 Coolant pipe 21087695 1
25 Hose clamp 20412420 1
26 Cable tie 948211 10
27 Hose clamp 994565 3
28 Cable tie 21052971 1
29 Coolant pipe 21087698 1
30 Hose 21226021 1
31 Hose clamp 943471 3 (951787)
32 Cable tie 21052971 2
33 Hose 21664198 1
34 Hose clamp 20405755 1
35 Hose clamp 20893584 1
36 Charge air pipe 21664162 1
37 Clamp 21150016 2
39 Clamp 20848212 1 (20412614)
40 Retainer 21040679 1
41 Rubber hose 21664167 1
42 Adapter 20405944 1
43 O-ring 20405535 2
44 Sealant 1161231 1 304ml
45 Charge air pipe 21664145 1
46 Clamp 21150012 1
47 Hose clamp 21186882 1
48 Expansion tank 21661750 1
49 Flange screw 20405898 16
Item Part Name Part No.
19 Support 21663772 21663772

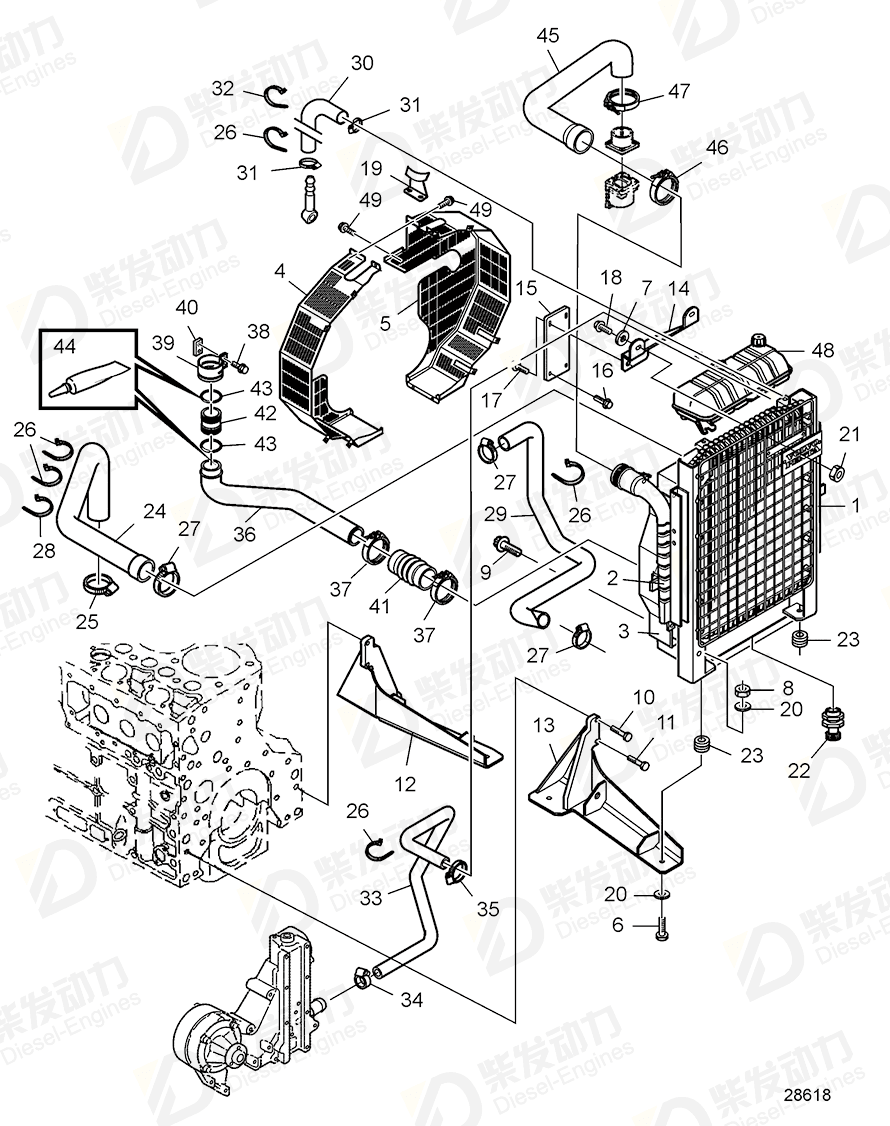

volvo penta Support 21663772 Drawing
Details
Engine model TAD732GE, TAD733GE
Application Cooling System SN 10944314-
