Support plate 1082911

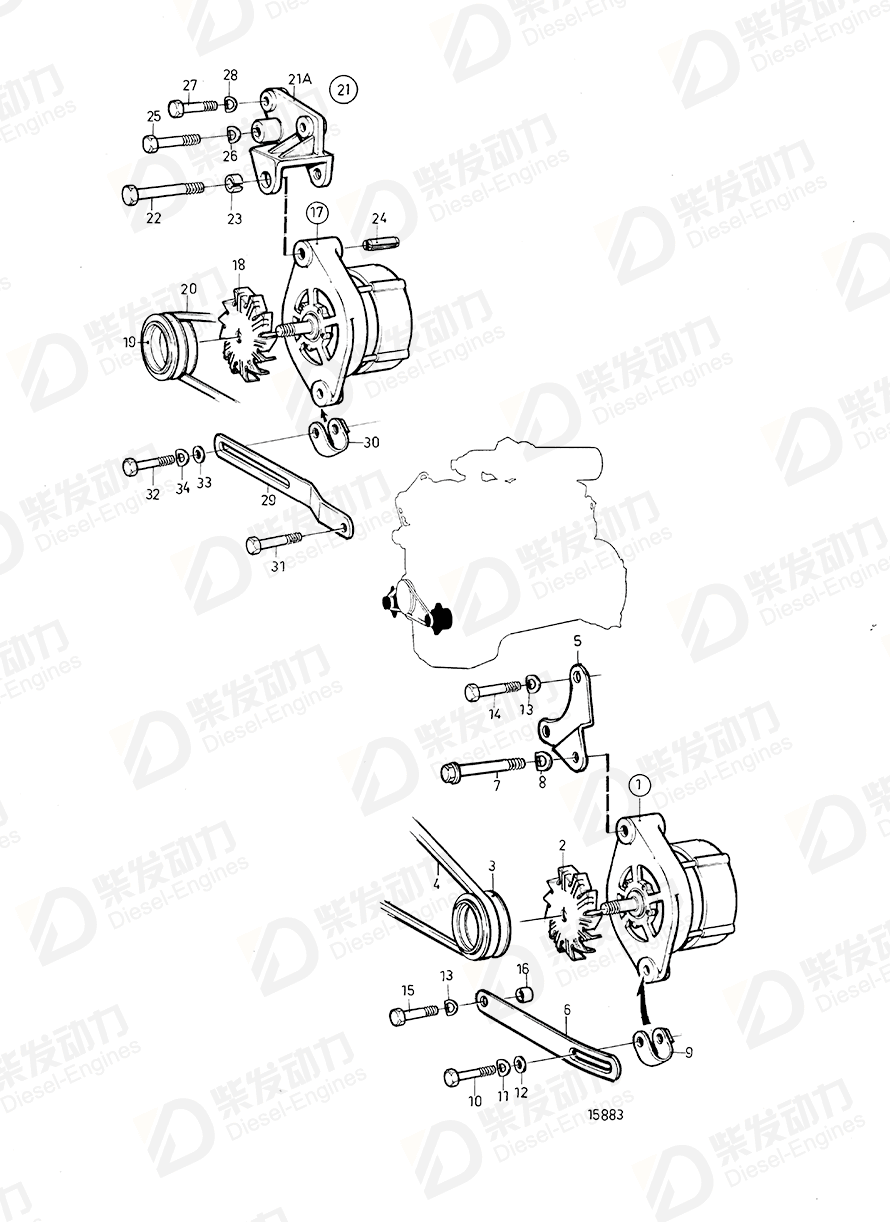

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 872021 | 1 | For 24V electric system., 28V 60A, repl by 873757 |
| 3 | Pulley | 822573 | 1 | |
| 4 | V-belt | 978547 | 1 | |
| 5 | Support plate | 1082911 | 1 | |
| 6 | Tensioner | 1545307 | 1 | |
| 7 | Hexagon screw | 971005 | 1 | |
| 8 | Spring washer | 941911 | 1 | |
| 9 | Tensioning loop | 466734 | 1 | |
| 10 | Hexagon screw | 955299 | 1 | |
| 11 | Spring washer | 941907 | 1 | |
| 12 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 13 | Spring washer | 942336 | 3 | |
| 14 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 15 | Hexagon screw | 955541 | 1 | |
| 16 | Spacer sleeve | 821540 | 1 | Replaced by 1pc 1578938., L=22mm |
| 17 | Alternator | 872021 | 1 | For 24V electric system., 28V 60A, repl by 873757 |
| 19 | Pulley | 822573 | 1 | |
| 20 | V-belt | 966926 | 1 | |
| 21 | Bracket | 3825849 | 1 | |
| 22 | Bushing | 831920 | 1 | |
| 23 | Hexagon screw | 955555 | 1 | L=83mm |
| 24 | Spring pin | 1610144 | 1 | |
| 25 | Hexagon screw | 971003 | 1 | |
| 26 | Spring washer | 941911 | 1 | |
| 27 | Hexagon screw | 955538 | 2 | |
| 28 | Washer | 940097 | 2 | |
| 29 | Tensioner | 863726 | 1 | |
| 30 | Tensioning loop | 466734 | 1 | |
| 31 | Hexagon screw | 955542 | 1 | |
| 32 | Hexagon screw | 955299 | 1 | |
| 33 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 34 | Spring washer | 941907 | 1 |
| Item | Part Name | Part No. |
| 5 | Support plate 1082911 | 1082911 |
| Details | |
| Engine model | TAD1030P TAD1230P, TWD1210P, TWD1211P TD100G-87, TD1030VE, TAD1030V, TWD1031VE TD1030ME, TWD1030ME TD1030VE, TWD1031VE TD121G-87 TD121GP-87 TWD1210V, TWD1211V, TAD1230V TWD1230VE TWD1231VE |
| Application | Alternator, Low-Left Mounted Alternator, Low-Left Mounted: 55A Alternator, Low-Left Mounted: 60A Alternator, Low-Left Mounted: 80A Alternator, Low-Left Mounted: A Alternator, Low-Left Mounted: B Alternator, Low-Left Mounted: C Alternator, Low-Left Mounted: SN 2120224465- Alternator, Twin, Low L/R |
Tags: Support plate, Volvo Penta, 1082911
