T-pipe 948092

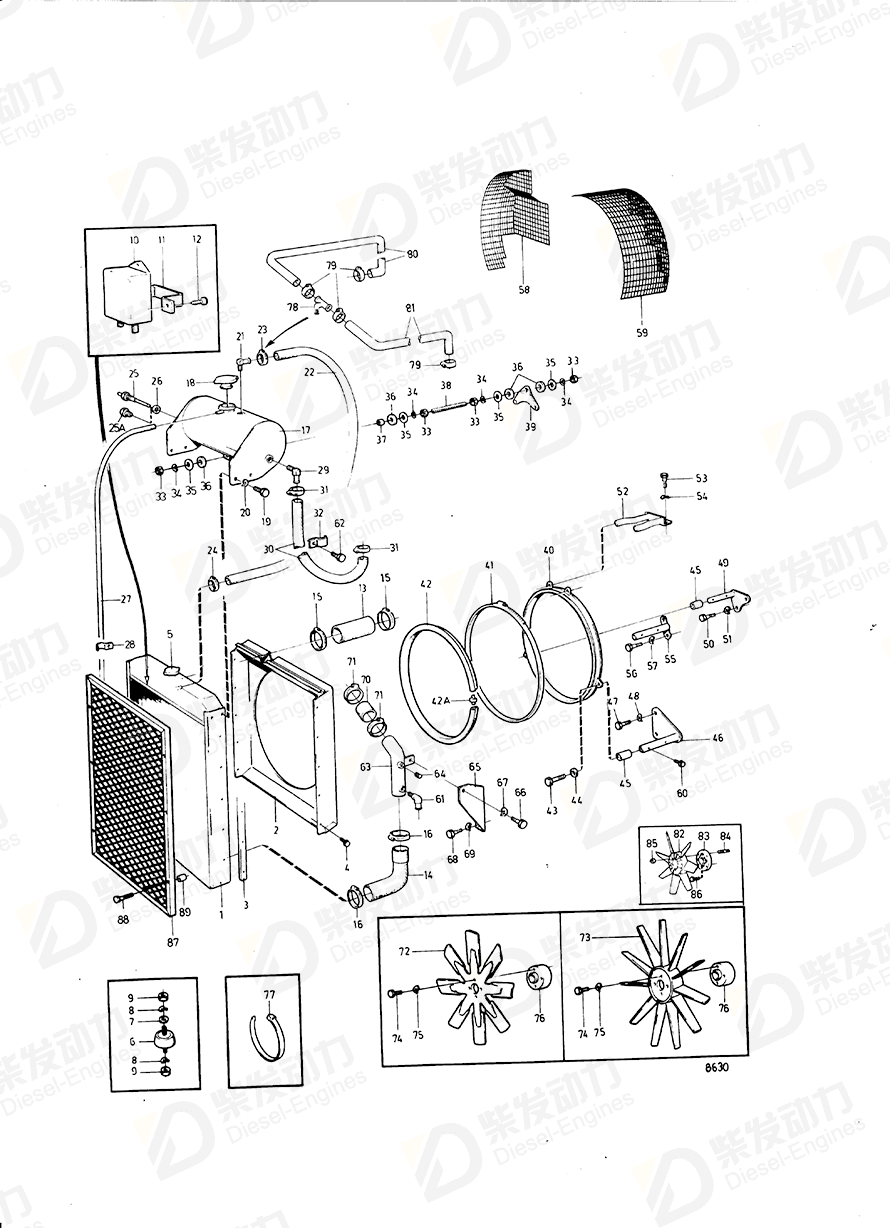

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 863799 | 1 | |
| 2 | Fan shroud | 847550 | 1 | |
| 3 | Sealing strip | 821707 | 1 | For engine with 2 pc oil cooler 836821., Spec. 867056, 867058, 867059, 867279. |
| 4 | Hexagon screw | 945970 | 10 | |
| 5 | Radiator cap | 344753 | 1 | |
| 6 | Rubber cushion | 833720 | 2 | |
| 7 | Washer | 955898 | 2 | Late type |
| 8 | Spring washer | 940280 | 4 | |
| 9 | Hexagon nut | 955850 | 4 | |
| 10 | Level relay | 1622515 | 1 | |
| 11 | Brace | 846728 | 1 | Repl by 941772 |
| 12 | Cross recessed screw | 955120 | 3 | |
| 13 | Hose | 952980 | 1 | L=60mm |
| 14 | Hose | 952980 | 1 | L=60mm |
| 15 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 16 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 17 | Expansion tank | 848525 | 1 | Repl by 3828638 |
| 18 | Pressure cap | 350578 | 1 | (321973) |
| 19 | Hexagon screw | 955294 | 4 | |
| 20 | Spring washer | 941907 | 4 | |
| 21 | Elbow nipple | 180283 | 1 | |
| 22 | Hose | 13776 | 1 | L=450mm early type |
| 23 | Hose clamp | 943470 | 1 | |
| 24 | Hose clamp | 947065 | 1 | |
| 25 | Level indicator | 1581232 | 1 | |
| 26 | Gasket | 11994 | 1 | |
| 27 | Hose | 192618 | 1 | L=1400mm |
| 28 | Clamp | 18387 | 3 | |
| 29 | Elbow nipple | 942240 | 1 | |
| 30 | Hose | 952969 | 1 | (943368) L=600mm |
| 31 | Hose clamp | 943472 | 2 | |
| 32 | Clamp | 949379 | 1 | |
| 33 | Hexagon nut | 955782 | 4 | |
| 34 | Spring washer | 941907 | 4 | |
| 35 | Washer | 418531 | 4 | |
| 36 | Rubber bushing | 403877 | 4 | |
| 37 | Spacer sleeve | 403894 | 2 | |
| 38 | Control rod | 845404 | 1 | |
| 39 | Anchorage | 847551 | 1 | |
| 40 | Fan ring | 847073 | 1 | |
| 41 | Hose clamp | 947467 | 1 | |
| 42 | Sealing strip | 837300 | 1 | |
| 43 | Hexagon screw | 955527 | 4 | |
| 44 | Spring washer | 941907 | 4 | |
| 45 | Spacer tube | 847309 | 4 | |
| 45 | Washer | 960141 | 2 | |
| 46 | Anchorage | 845211 | 1 | |
| 47 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 48 | Spring washer | 942336 | 2 | |
| 49 | Anchorage | 845210 | 1 | |
| 50 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 51 | Spring washer | 942336 | 2 | |
| 52 | Anchorage | 845209 | 1 | |
| 53 | Hexagon screw | 959798 | 2 | |
| 54 | Spring washer | 942336 | 2 | |
| 55 | Anchorage | 847529 | 1 | |
| 56 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 57 | Spring washer | 942336 | 2 | |
| 58 | Safety net | 847540 | 1 | |
| 59 | Safety net | 847539 | 1 | |
| 60 | Hexagon screw | 945970 | 8 | |
| 61 | Elbow nipple | 942240 | 1 | |
| 62 | Cross recessed screw | 965395 | 1 | |
| 63 | Coolant pipe | 846832 | 1 | |
| 64 | Plug | 952077 | 2 | |
| 65 | Bracket | 846834 | 1 | |
| 66 | Cross recessed screw | 956092 | 1 | (241793) |
| 67 | Spring washer | 949607 | 1 | |
| 68 | Hexagon screw | 955541 | 2 | |
| 69 | Spring washer | 942336 | 2 | |
| 70 | Hose | 952980 | 1 | L=60mm |
| 71 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 72 | Fan | 843517 | 1 | Åkerman spec. 867454., D70B spec. 867055, 867056, 867057 MOXXXXX/6622-. D70B spec. 867061, 867063, 867277. TD70B spec. 867065. D70B spec. 867059, 867260 alt. D70BK alt., D=620mm |
| 72 | Fan, suction type | 864613 | 1 | Alt |
| 73 | Fan | 843563 | 1 | Spec. 867221., D70B spec. 867062, 867221, 867259, 867260, 867278. TD70B spec 867065 alt. D70BK alt., D=620mm |
| 74 | Flange screw | 945444 | 4 | |
| 74 | Hexagon screw | 955529 | 4 | |
| 75 | Spring washer | 941907 | 4 | |
| 76 | Spacer ring | 845862 | 1 | TH=50mm |
| 77 | Cable tie | 948210 | 1 | (827353) |
| 78 | T-pipe | 948092 | 1 | |
| 79 | Hose clamp | 943470 | 4 | |
| 80 | Hose | 13776 | 1 | L=450mm early type |
| 81 | Hose | 13776 | 1 | L=450mm early type |
| 25A | Plug | 947660 | 1 | (836268) |
| 42A | Connector | 475450 | 1 |
| Item | Part Name | Part No. |
| 78 | T-pipe 948092 | 948092 |
| Details | |
| Engine model | TD100G-85 TD100G-87 TD100GG-85 TD100GG-87 TD100GP-85 TD100HP-87 TD1010G, TWD1010G TD1030ME, TWD1030ME TD1030VE, TWD1031VE TD121G TD121G-87, TWD1231VE TD121GG TID100K TID100K-87 TID100KG TID100KG-87 TID100KP TID100KP-87 TID121FG TWD1230ME |
| Application | Radiator and Fan with Fan Cover and Installation Components: A Radiator and Fan with Fan Cover and Installation Components: B RADIATOR AND FAN WITH INSTALLATION COMPONENTS Radiator and Fan, 35°C Radiator and Fan, Earlier Prod. Radiator and Fan, Later Prod.: A Radiator and Fan, Later Prod.: senare utförande Radiator and Fan, Mobile Application Radiator and Installation Components 35CG: A Radiator and Installation Components 35CG: B Radiator and Installation Components 35CG: C Radiator and Installation Components 35CG: TD100HPB87 Radiator, Expansion Tank and Fan |
| Specification | |
| Descriptions | Late type |
