Tab washer 62109

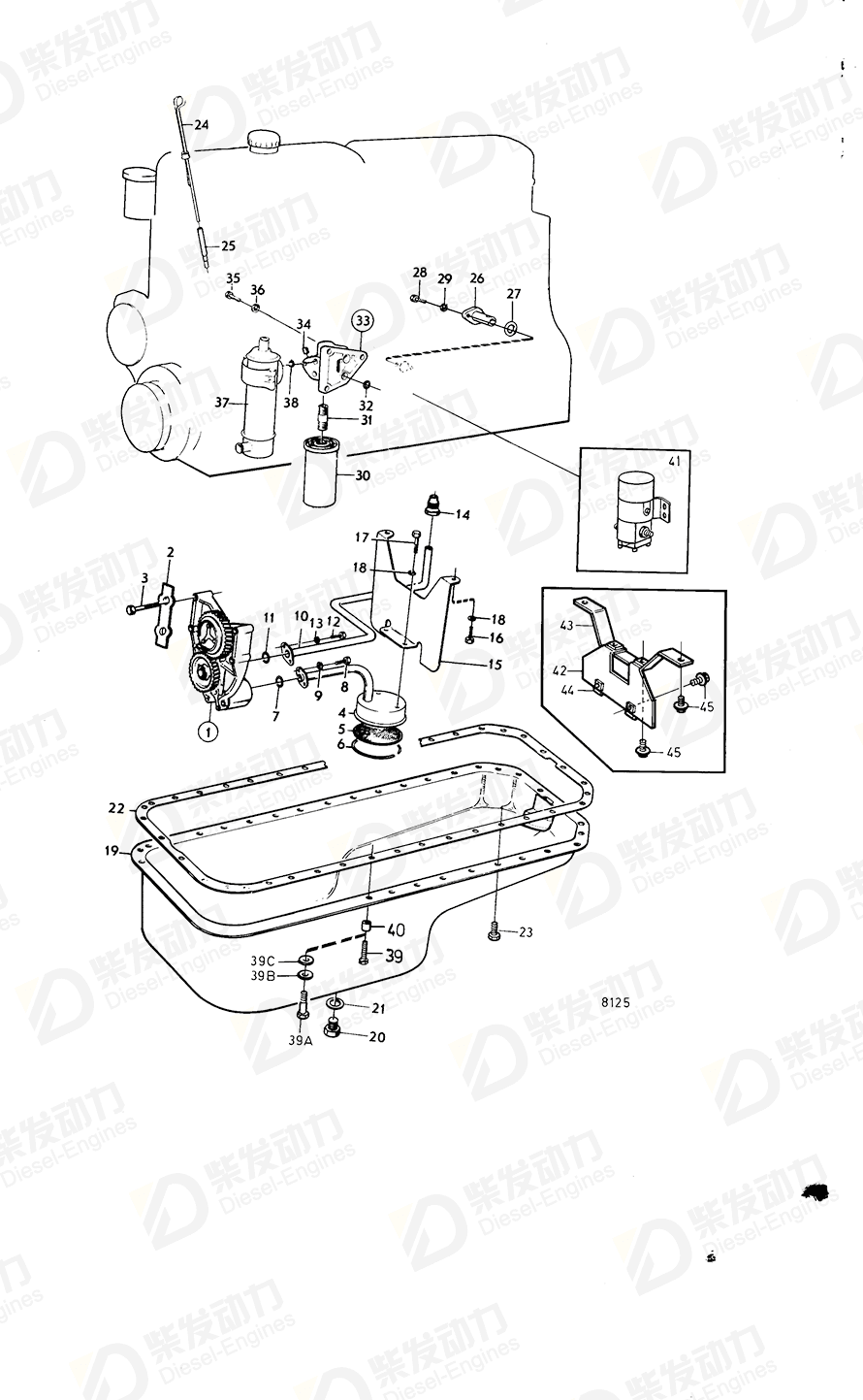

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 466387 | 1 | MO81654/XXXXX |
| 2 | Tab washer | 62109 | 2 | |
| 3 | Hexagon screw | 955538 | 4 | |
| 4 | Suction pipe | 844709 | 1 | (420051) |
| 5 | Wire gauze | 414621 | 1 | |
| 6 | Retaining ring | 118125 | 1 | |
| 7 | O-ring | 949657 | 1 | (925060) |
| 8 | Hexagon screw | 955530 | 2 | |
| 9 | Spring washer | 941907 | 2 | |
| 10 | Pressure pipe | 465680 | 1 | (844755) |
| 11 | O-ring | 949656 | 1 | |
| 12 | Hexagon screw | 955530 | 2 | |
| 13 | Spring washer | 941907 | 2 | |
| 14 | Fitting | 466906 | 1 | (940358) |
| 15 | Baffle plate | 420056 | 1 | |
| 16 | Hexagon screw | 955523 | 2 | |
| 17 | Hexagon screw | 940113 | 2 | |
| 18 | Spring washer | 941907 | 2 | |
| 18 | Disc spring | 942385 | 1 | |
| 19 | Sump | 420026 | 1 | |
| 20 | Magnetic plug | 192538 | 1 | |
| 21 | Gasket, plug | 18677 | 1 | |
| 22 | Gasket | 420025 | 1 | |
| 23 | Flange screw | 942402 | 34 | |
| 24 | Oil dipstick | 848342 | 1 | (420069) |
| 25 | Tube | 405101 | 1 | |
| 26 | Reduction valve | 421123 | 1 | |
| 27 | O-ring | 949721 | 1 | (925062) |
| 28 | Hexagon screw | 940100 | 2 | |
| 29 | Spring washer | 941906 | 2 | |
| 30 | Oil filter | 4785974 | 1 | |
| 31 | Nipple | 423067 | 1 | |
| 32 | O-ring | 949656 | 2 | |
| 33 | Oil filter housing | 466339 | 1 | D70B spec. 867276, 867277, 867278, 867279, 867280, 867283, 867300, 867301. TD70B spec. 867281, 867282., See group 3 |
| 34 | Plug | 952075 | 1 | |
| 35 | Hexagon screw | 940115 | 3 | |
| 36 | Spring washer | 942336 | 3 | |
| 37 | Oil cooler | 420365 | 1 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603-. |
| 38 | Sealing ring | 469483 | 2 | (422581) |
| 39 | Flange screw | 944012 | 1 | |
| 40 | Spacer sleeve | 807183 | 1 | Used on crankshaft 829999. |
| 42 | Baffle plate | 849844 | 1 | |
| 43 | Bracket | 466667 | 1 | |
| 44 | Bracket | 465738 | 1 | |
| 45 | Flange screw | 942402 | 8 | |
| 39A | Hexagon screw | 940135 | 1 | |
| 39B | Spring washer | 941907 | 1 | |
| 39C | Washer | 955894 | 1 |
| Item | Part Name | Part No. |
| 2 | Tab washer 62109 | 62109 |
| Details | |
| Engine model | TD60A TD60B TD60D TD60D-83, TID60D TD60D-83, TID60D, TID60DG |
| Application | Lubricating System, Angle of Inclination 10° LUBRICATING SYSTEM, STANDARD MODEL Lubricating System, Standard Model: A Lubricating System, Standard Model: B |
