Tab washer 941571

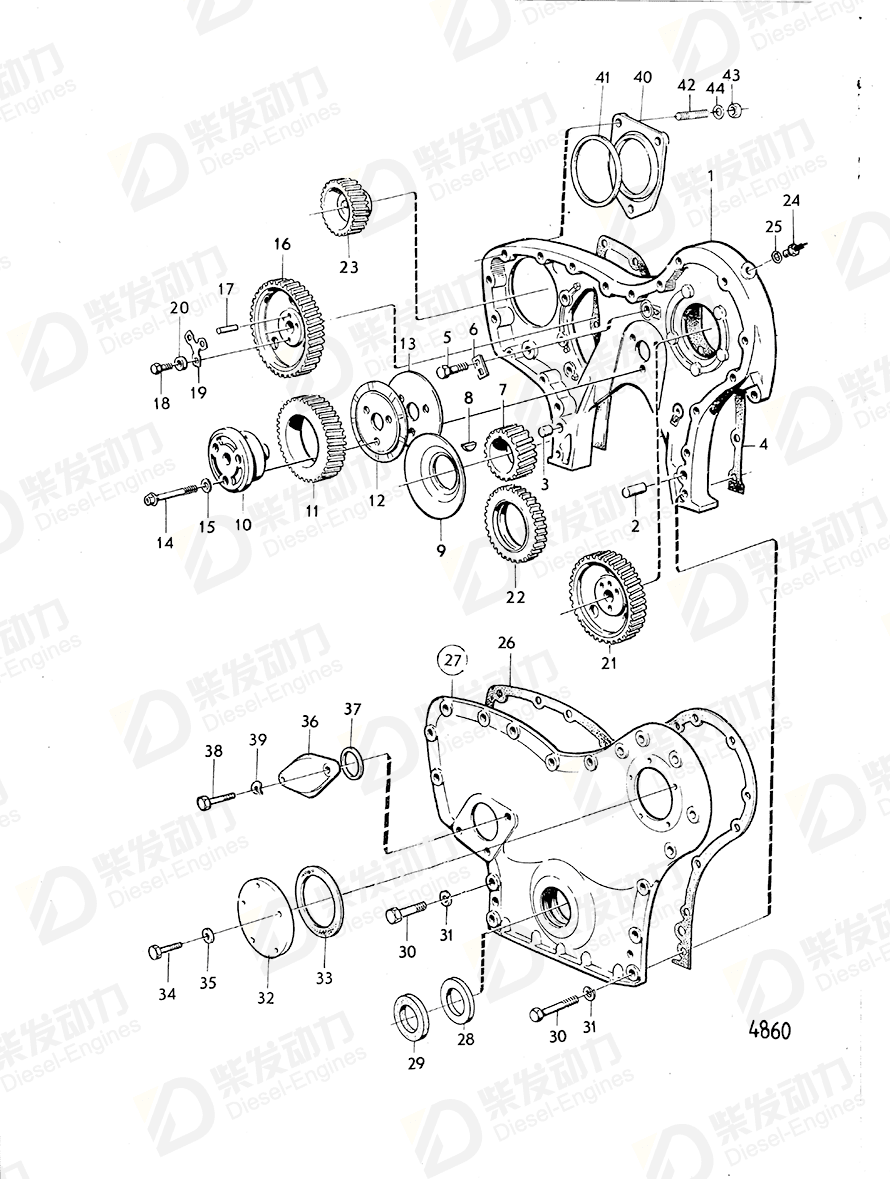

| No. | Part Name | Part Number | Qty | Description |
| 1 | Timing gear casing | 465257 | 1 | |
| 2 | Pin | 941511 | 1 | For Aquamatic drive unit and Duoprop drive unit. |
| 3 | Pin | 941510 | 1 | For Aquamatic drive unit and Duoprop drive unit. |
| 4 | Gasket | 421057 | 1 | |
| 5 | Hexagon screw | 955525 | 5 | |
| 6 | Tab washer | 941571 | 5 | |
| 7 | Crankshaft gear | 421080 | 1 | |
| 8 | Woodruff key | 422253 | 1 | |
| 9 | Oil deflector | 420172 | 1 | |
| 10 | Bearing spindle | 467463 | 1 | MB20A MO-1470/XXXX. |
| 11 | Idler gear | 4774662 | 1 | (786701) |
| 12 | Thrust washer | 467529 | 1 | MO-608/XXXX. |
| 13 | Bearing shield | 467528 | 1 | MO-608/XXXX. |
| 14 | Screw | 422316 | 3 | |
| 15 | Disc spring | 942180 | 3 | MO-56861/XXXXX |
| 16 | Gear | 421079 | 1 | |
| 17 | Pin | 950588 | 1 | |
| 21 | Gear | 842467 | 1 | See group 2C |
| 22 | Idler gear | 421046 | 1 | |
| 23 | Gear | 423087 | 1 | |
| 24 | Tachometer sensor | 354671 | 1 | For instrument panel 841094 and 841095., 24Vlate production., (837783) |
| 25 | O-ring | 925059 | 1 | AQ115A compression 8,4:1. |
| 26 | Gasket | 465056 | 1 | |
| 27 | Cover | 4773577 | 1 | |
| 28 | Sealing ring | 471055 | 1 | |
| 29 | Sealing ring | 942083 | 1 | |
| 30 | Hexagon screw | 940186 | 10 | |
| 30 | Hexagon screw | 955526 | 1 | MD70BK spec 867116 MOXXXX/9685- |
| 30 | Hexagon screw | 955530 | 7 | |
| 31 | Spring washer | 941907 | 18 | |
| 32 | Hatch | 420185 | 1 | |
| 33 | Sealing ring | 423123 | 1 | |
| 34 | Hexagon screw | 940094 | 5 | |
| 35 | Spring washer | 941906 | 5 | |
| 36 | Cover | 465735 | 1 | (465057) |
| 37 | Seal | 465058 | 1 | |
| 38 | Hexagon screw | 955535 | 1 | |
| 38 | Hexagon screw | 955539 | 1 | |
| 39 | Spring washer | 942336 | 2 | |
| 40 | Cover | 420178 | 1 | |
| 41 | Gasket | 413619 | 1 | |
| 42 | Stud | 953345 | 3 | |
| 43 | Hexagon nut | 955828 | 3 | |
| 44 | Spring washer | 941911 | 3 |
| Item | Part Name | Part No. |
| 6 | Tab washer 941571 | 941571 |
| Details | |
| Engine model | D70B D70CHC D70CRC TD60A, TD60B TD60D TD60D-83 TD70B TD70CHC TD70CRC TD70G TD70G-83 TID60D TID60DG TID70G |
| Application | Timing Gear Casing and Gear: A Timing Gear Casing and Gear: B Timing Gear Casing and Gear: C Timing Gear Casing and Gear: D Timing Gear Casing and Gears Timing Gear Casing and Gears: A Timing Gear Casing and Gears: B TIMING GEAR CASING AND GEARS: C |
