Tension pulley 861557

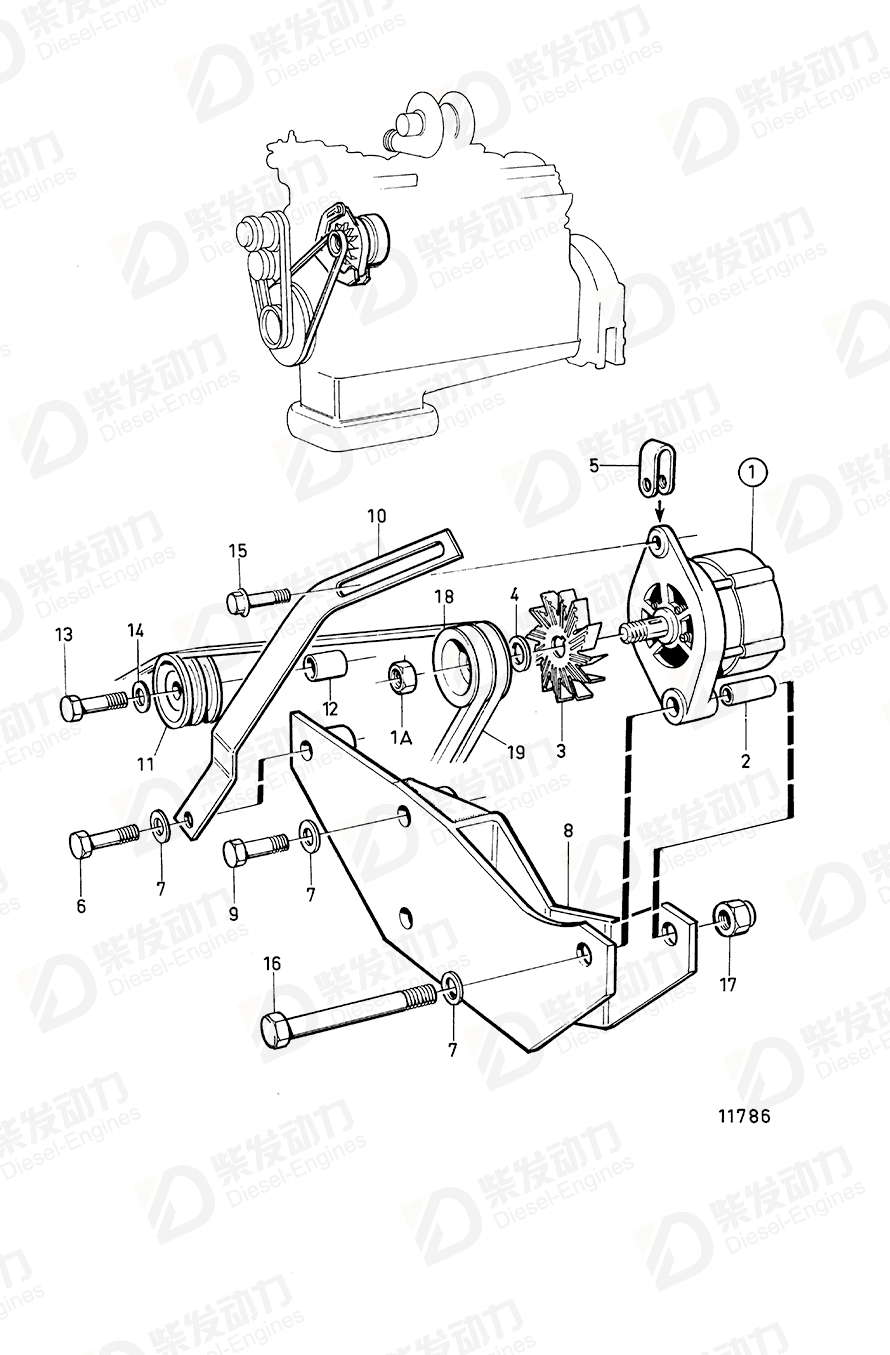

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 6779261 | 1 | For 24 voltage electric system., Alt. 28V 55A |
| 2 | Spring pin | 1610144 | 1 | |
| 3 | Fan | 1613241 | 1 | |
| 4 | Washer | 955900 | 1 | For charging of 2 batteries,use charge distributor 831793 |
| 5 | Tensioning loop | 466735 | 1 | |
| 6 | Hexagon screw | 942529 | 1 | |
| 7 | Spring washer | 942336 | 4 | |
| 8 | Bracket | 864984 | 1 | |
| 9 | Hexagon screw | 955544 | 2 | |
| 10 | Tensioner | 845021 | 1 | |
| 11 | Tension pulley | 861557 | 1 | |
| 12 | Sleeve | 866718 | 1 | |
| 13 | Hexagon screw | 940156 | 1 | |
| 14 | Washer | 960143 | 1 | |
| 15 | Flange screw | 947760 | 1 | M8x40mm |
| 16 | Hexagon screw | 955555 | 1 | L=83mm |
| 17 | Lock nut | 950355 | 1 | |
| 18 | Pulley | 822573 | 1 | |
| 19 | V-belt | 969309 | 1 |
| Item | Part Name | Part No. |
| 11 | Tension pulley 861557 | 861557 |
| Details | |
| Engine model | TD121G-87 TD121G-87, TID121K-87 |
| Application | Alternator, High Mounted, SN1101039851- Alternator, High Mounting Alternator, High Mounting Left Side, SN 1101039851/XXXXXX- |
