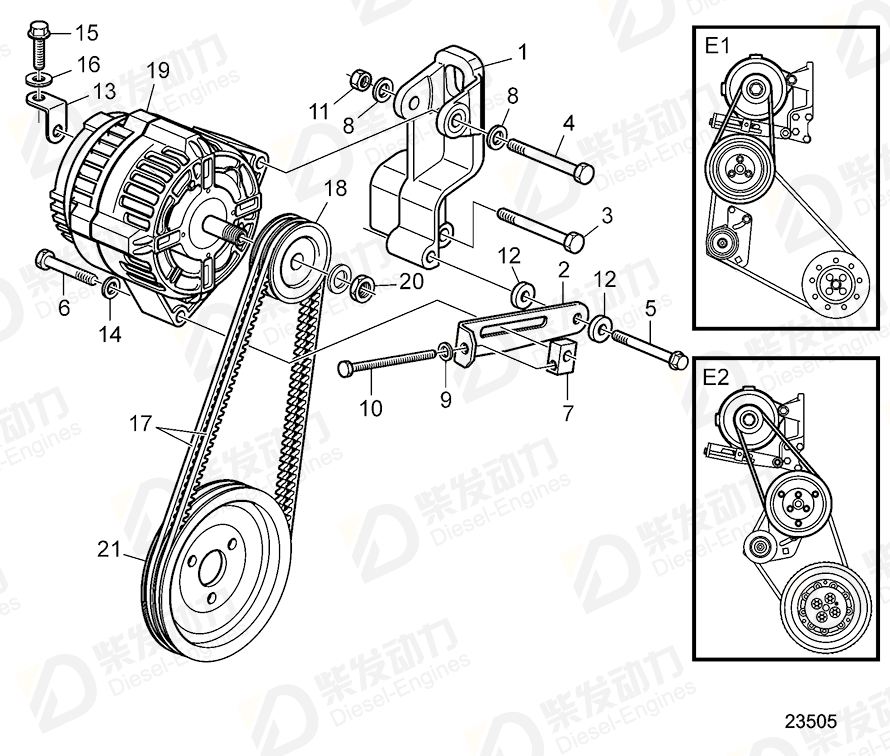

Tensioner 20593398
| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 20771391 | 1 | SN-01098544 |
| 1 | Bracket | 20882914 | 1 | SN01098545- |
| 2 | Tensioner | 20771395 | 1 | |
| 3 | Hexagon screw | 20460205 | 4 | |
| 4 | Hexagon screw | 3586609 | 1 | |
| 5 | Flange screw | 20412324 | 1 | |
| 6 | Hexagon screw | 20773412 | 1 | L=80mm |
| 7 | Tensioner | 20593398 | 1 | |
| 8 | Washer | 20773400 | 2 | |
| 9 | Washer | 20460127 | 1 | |
| 10 | Hexagon screw | 20516135 | 1 | |
| 11 | Hexagon nut | 20773407 | 1 | |
| 12 | Rubber stop | 20773415 | 2 | |
| 13 | Ground cable | 20808932 | 1 | |
| 14 | Washer | 20549890 | 1 | |
| 15 | Flange screw | 20405792 | 1 | |
| 16 | Washer | 20405734 | 1 | |
| 17 | V-belt set | 978467 | 1 | L=775mm |
| 18 | Pulley, alternator | 20783944 | 1 | |
| 19 | Alternator, exch, 28V 55A | 3801328 | 1 | SN-10710234 |
| 19 | Alternator, exch, 14V 95A | 3801348 | 1 | |
| 19 | Alternator, exch, 28V 80A | 3803961 | 1 | |
| 19 | Alternator, 28V 80A | 20715635 | 1 | |
| 20 | Hexagon nut | 20441521 | 1 | |
| 21 | Pulley | 20771414 | 1 | 2-Groove, DW=166 |
| Item | Part Name | Part No. |
| 7 | Tensioner 20593398 | 20593398 |
| Details | |
| Engine model | TAD520VE, TAD720VE, TAD721VE, TAD722VE |
| Application | Alternator, High Mounted Right Side (1 / 2) 14V 95A / 28V 55A / 28V 80A: E1 Alternator, High Mounted Right Side (1 / 2) 14V 95A / 28V 55A / 28V 80A: E2 Alternator, High Mounted Right Side (1) 28V 80A Alternator, High Mounted Right Side (2) 28V 80A |
