Tensioner 835352

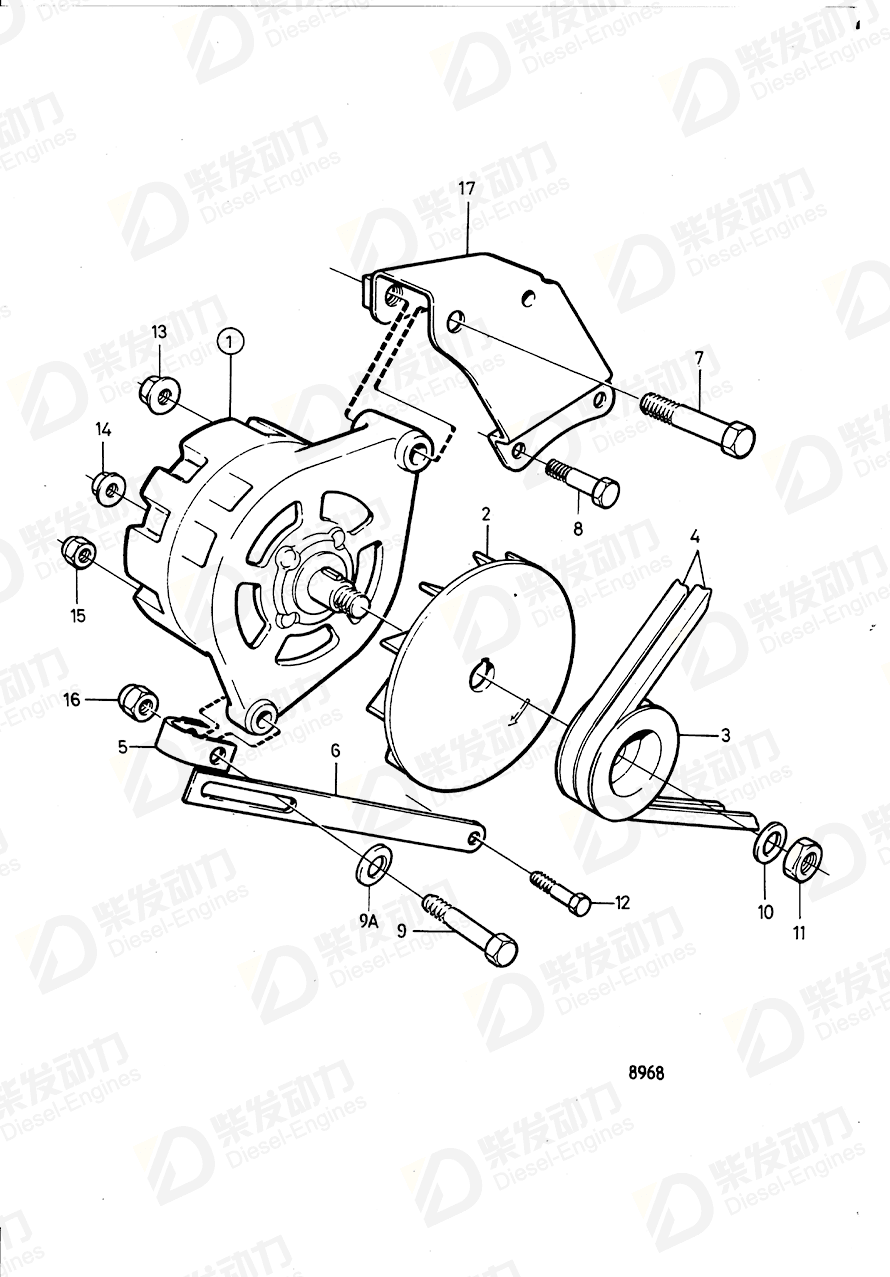

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Alternator |
1607361 |
1 |
For 24 voltage electric system., 28V 45A |
| 2 |
Fan |
241363 |
1 |
|
| 3 |
V-belt pulley |
1542448 |
1 |
|
| 4 |
V-belt |
966978 |
1 |
L=2X1100mm |
| 5 |
Tensioning loop |
466735 |
1 |
|
| 6 |
Tensioner |
835352 |
1 |
|
| 7 |
Hexagon screw |
971003 |
1 |
|
| 8 |
Flange screw |
965218 |
2 |
|
| 9 |
Flange screw |
965179 |
1 |
|
| 12 |
Flange screw |
965182 |
1 |
|
| 13 |
Flange nut |
945407 |
1 |
For THD102KB and THD102KD. |
| 14 |
Flange nut |
965483 |
1 |
|
| 15 |
Lock nut |
963104 |
1 |
|
| 16 |
Lock nut |
963106 |
1 |
|
| 17 |
Bracket |
1545665 |
1 |
|
| 9A |
Washer |
960141 |
1 |
|
| Item |
Part Name |
Part No. |
| 6 |
Tensioner 835352 |
835352 |
| Details |
| Engine model |
TD31ACE |
| Application |
Alternator and Installation Components |
