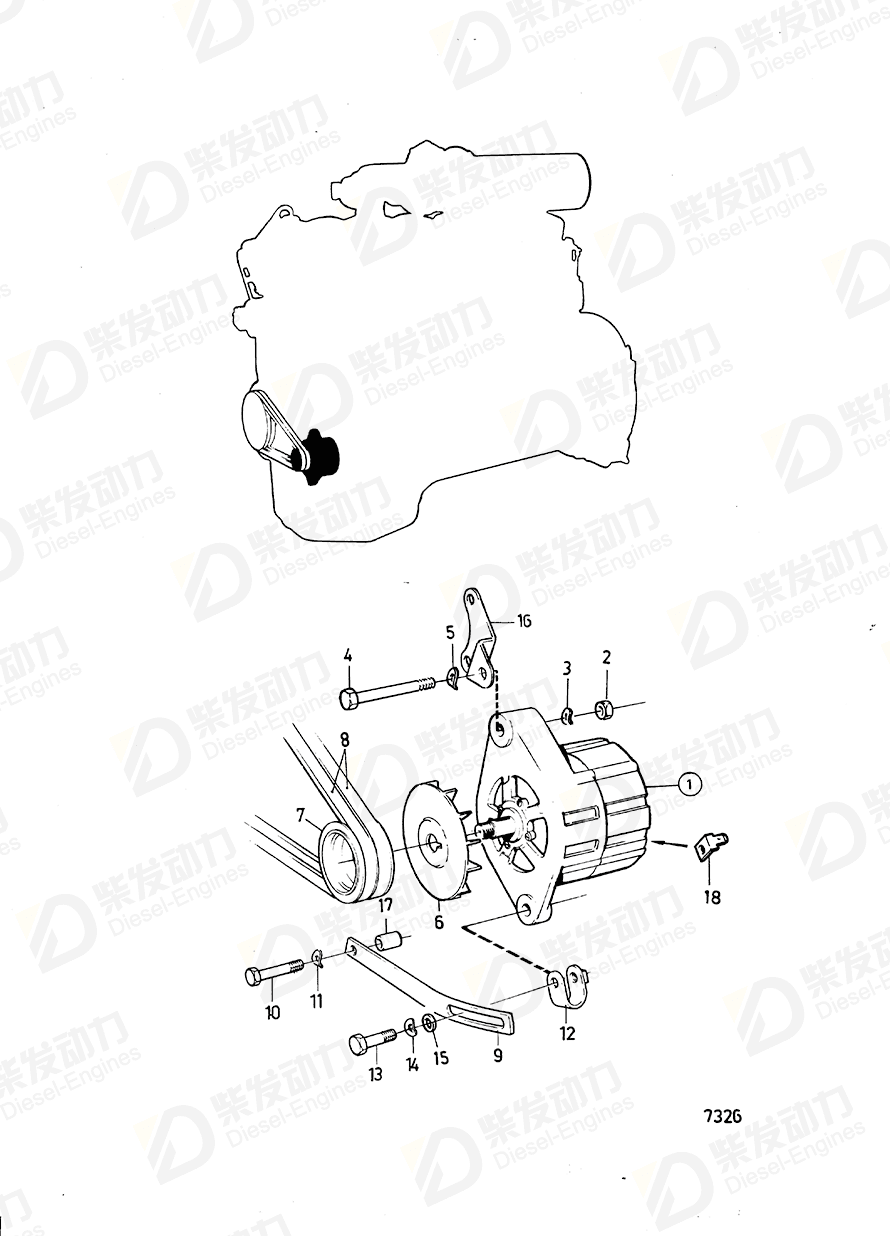

Tensioner 846902
| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 1578140 | 1 | 28V 45A |
| 2 | Hexagon nut | 955780 | 1 | |
| 2 | Hexagon nut | 955781 | 1 | |
| 3 | Spring washer | 941905 | 1 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 3 | Spring washer | 941906 | 1 | |
| 4 | Hexagon screw | 955553 | 1 | |
| 5 | Spring washer | 941909 | 1 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 6 | Fan | 241363 | 1 | |
| 7 | V-belt pulley | 465145 | 1 | MOXXXXX/40428- |
| 7 | Pulley | 822573 | 1 | |
| 8 | V-belt | 966386 | 1 | L=1X1275mm |
| 8 | V-belt | 966988 | 1 | |
| 9 | Tensioner | 846902 | 1 | |
| 10 | Hexagon screw | 955544 | 1 | |
| 11 | Spring washer | 942336 | 1 | |
| 12 | Tensioning loop | 466735 | 1 | |
| 13 | Hexagon screw | 955300 | 1 | (955299) |
| 14 | Spring washer | 941907 | 1 | |
| 15 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 16 | Bracket | 468299 | 1 | |
| 17 | Spacer sleeve | 824205 | 1 | D=17mm |
| 18 | 941881 | 1 |
| Item | Part Name | Part No. |
| 9 | Tensioner 846902 | 846902 |
| Details | |
| Engine model | TD121G, TID121K TD121G-87, TID121K-87, TID121L-87 |
| Application | Alternator Alt Low Mounted Left Side Alternator Alt, Low Mounted, Left Side Alternator, Low-Left Mounted |
