Tensioning loop 466734

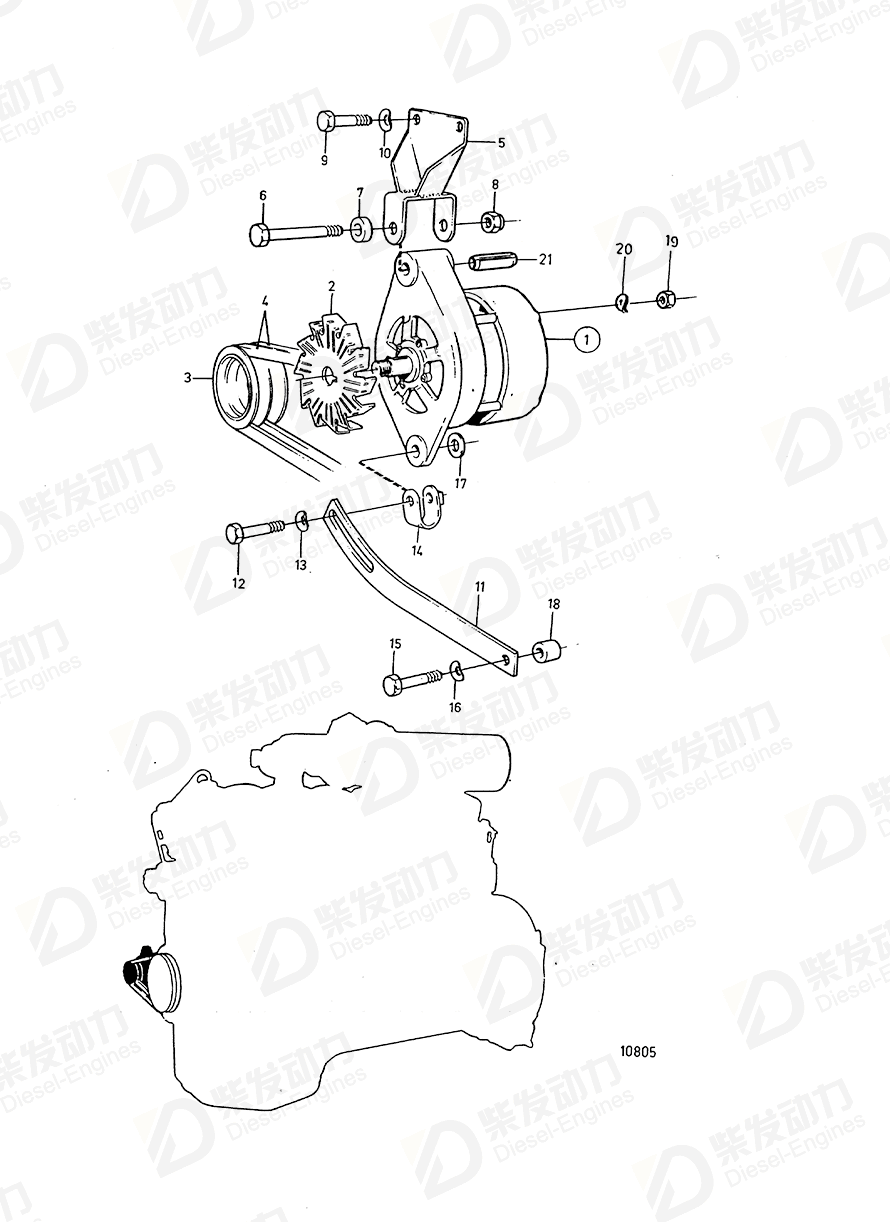

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 845940 | 1 | For 24 voltage electric system., 24V 55A |
| 1 | Alternator | 849563 | 1 | For 24V electric system., Replaced by 863955., SN-1101019500/XXXXXX |
| 1 | Alternator | 863955 | 1 | 28V 60A. for 24V electric system., Replaced by 872021., SN-1101038358/XXXXXX |
| 1 | Alternator | 872021 | 1 | For 24V electric system., 28V 60A, repl by 873757 |
| 1 | Alternator | 1607362 | 1 | For 24 voltage electric system., Alt. 28V 55A |
| 2 | Fan | 1613241 | 1 | |
| 3 | Pulley | 822573 | 1 | |
| 4 | V-belt | 966991 | 2 | For TD1010G, TWD1010G |
| 5 | Alternator bracket | 849510 | 1 | |
| 6 | Hexagon screw | 955555 | 1 | L=83mm |
| 7 | Spacer sleeve | 847400 | 1 | |
| 8 | Lock nut | 950355 | 1 | |
| 9 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 10 | Spring washer | 942336 | 2 | |
| 11 | Tensioner | 863726 | 1 | |
| 12 | Hexagon screw | 955299 | 1 | |
| 13 | Spring washer | 941907 | 1 | |
| 14 | Tensioning loop | 466734 | 1 | |
| 15 | Hexagon screw | 955542 | 1 | |
| 16 | Spring washer | 942336 | 1 | |
| 17 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 18 | Spacer sleeve | 846903 | 1 | |
| 19 | Hexagon nut | 955780 | 1 | |
| 19 | Hexagon nut | 955781 | 1 | |
| 19 | Hexagon nut | 955782 | 1 | |
| 20 | Spring washer | 941905 | 1 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 20 | Spring washer | 941906 | 1 | |
| 20 | Spring washer | 941907 | 1 | |
| 21 | Spring pin | 1610144 | 1 |
| Item | Part Name | Part No. |
| 14 | Tensioning loop 466734 | 466734 |
| Details | |
| Engine model | TAD1030G, TD1010G, TWD1010G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE TAD1230P TAD1230P, TWD1210P, TWD1211P TAD1232GE TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TAD1630V, TWD1630V TAD740GE, TAD741GE TD100G, TD100G-85 TD100G, TD100G-85, TD100GG, TD100GG-85, TID100K, TID100KG TD100G, TD100G-85, TD100GP, TD100GP-85, TID100K, TID100KP TD100G, TD100G-85, TID100K TD100G-87 TD100G-87, TD100GG-87, TID100K-87, TID100KG-87 TD100G-87, TD100HP-87, TD100HPB-87, TID100K-87, TID100KP-87, TID100KPB-87 TD100G-87, TD1030VE, TAD1030V, TWD1031VE TD100G-87, TID100K-87 TD1030ME, TWD1030ME TD1030VE, TWD1031VE TD120HP-86, TD121G, TD121G-87, TD121GP-87, TID121K, TID121KP, TID121K-87 TD120HPP TD121G, TD121G-87, TD121GG, TD121GG-86, TD121GG-87 TD121G, TD121G-87, TID121K, TID121K-87 TD121G-87 TD121G-87, TWD1210V, TWD1211V TD121GGP-87, TID121KGP, TID121LGP-87 TD121GP-87 TD60D-83, TID60D TD60D-83, TID60D, TID60DG TD610G, TWD610G, TWD710G, TAD730G TD610M, TD630ME, TWD630ME TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V, TWD610V, TD630VE, TWD630VE TD61A, TD61AW, TD71A, TD71AW, TID71A TD61AG, TID61AG TD61AP TD640VE TD70G-83 TD70G-83, TID70G TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V TD71A, TID71A, TWD710V, TWD731VE, TAD730V TD71AG, TID71AG TD71AP, TID71AP TD730VE TID100KGP-87 TID120HPP TID121FG TID121K, TID121KG, TID121KG-87, TID121LG, TID121LG-87 TID121KP-87, TID121KPB-87, TID121LP, TID121LP-87, TID121LPB-87 TID162AG, TID162AGP, TID162AP, TID162APB TID70G TWD1030ME TWD1210P TWD1210V, TWD1211V, TAD1230V TWD1211P TWD1230ME TWD1230VE TWD1231VE TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD610P TWD610P, TWD710P, TAD730P TWD710P TWD740GE TWD740VE |
| Application | Alternator Alternator and Installation Components, Left Side ALTERNATOR LOW MOUNTED RIGHT SIDE Alternator Low Mounting Alternator SN-2160016584 Alternator SN2160019300- Alternator Twin Mounted Alternator with Installation Components Alternator, Double Mounted Alternator, High Mounted Right Side Alternator, Low Mounted Left Side Alternator, Low Mounted Right Side Alternator, Low Mounted Right Side: A Alternator, Low Mounted Right Side: B ALTERNATOR, LOW MOUNTED RIGHT SIDE: TID121FP Alternator, Low Mounting Right Side Alternator, Low-Left Mounted Alternator, Low-Left Mounted SN-2061150163 Alternator, Low-Left Mounted SN-2071115245 Alternator, Low-Left Mounted SN2061150164- Alternator, Low-Left Mounted SN2071115246- Alternator, Low-Left Mounted: 60A Alternator, Low-Left Mounted: A Alternator, Low-Left Mounted: B Alternator, Low-Left Mounted: C Alternator, Low-Left Mounted: SN -2120224464 Alternator, Low-Left Mounted: SN 2120224465- Alternator, Low-Left, SN-XXXXXXXXXX/268616 Alternator, Low-Left, SNXXXXXXXXXX/268617- Alternator, Low-Right Mounted Alternator, Low-Right Mounted: A Alternator, Low-Right Mounted: B Alternator, Low-Right Mounted: C Alternator, Low-Right Mounted: TAD 1230V Alternator, Low-Right Mounting, Earlier Prod Alternator, Low-Right Mounting, Earlier Prod: A Alternator, Low-Right Mounting, Earlier Prod: B Alternator, Low-Right Mounting, Earlier Prod: C Alternator, Low-Right Mounting, Later Prod Alternator, Low-Right Mounting, Later Prod: A Alternator, Low-Right Mounting, Later Prod: B Alternator, Low-Right Mounting, Later Prod: C Alternator, Twin Mounted Alternator, Twin, Low L - High R Alternator, Twin, Low L-High H, SN-XXXXXXXXXX/268616 Alternator, Twin, Low L-High R, SNXXXXXXXXXX/268617- Alternator, Twin, Low L/R Alternator, Twin, Low L/R, SN-XXXXXXXXXX/268616 Alternator, Twin, Low L/R, SNXXXXXXXXXX/268617- |
| Specification | |
| Descriptions | 55A, 60A For 849563, 863955, For 872021 For 873757, 873771 For 873771 |
