Thermo monitor, coolant temp. 848829

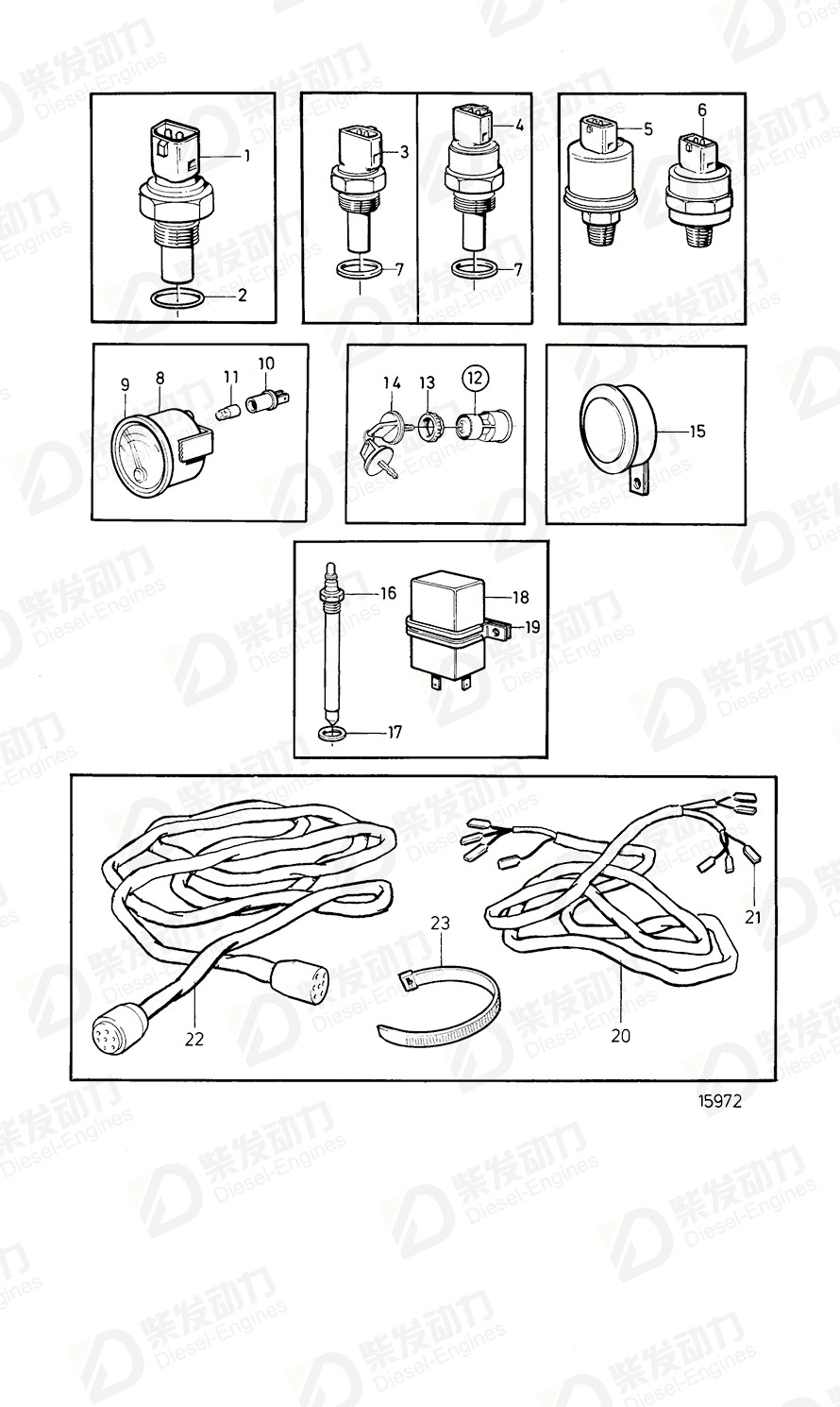

| No. | Part Name | Part Number | Qty | Description |
| 1 | Sensor, rpm | 862289 | 1 | |
| 2 | O-ring | 949656 | 1 | |
| 3 | Temperature sensor, instrument | 862154 | 1 | Max 120°C |
| 4 | Thermo monitor, coolant temp. | 848829 | 1 | 103°C |
| 4 | Thermo monitor, coolant temp. | 862250 | 1 | 97°C |
| 5 | Sensor, oil pressure-engine | 866835 | 1 | 0-10BAR |
| 6 | Pressure monitor, oil pressure-engine | 863169 | 1 | 0.7bar |
| 7 | Gasket | 947624 | 2 | |
| 8 | Thermometer, temperature | 849848 | 1 | 24V |
| 8 | Oil pressure gauge, oil-pressure | 849849 | 1 | 24V |
| 8 | Tachometer, hour/tachometer | 854908 | 1 | Replaced by operating clock/tachometer 873998 and intermediate ring 873721., 24V |
| 8 | Voltmeter | 862096 | 1 | |
| 8 | Tachometer, tachometer | 872040 | 1 | Replaced by operating clock/tachometer 873998 and intermediate ring 873721., 24V |
| 8 | Hour recorder, hour meter | 872479 | 1 | 12-24V |
| 9 | Front ring | 858643 | 1 | (828542) |
| 9 | Front ring | 858644 | 1 | For 872040., D=95mm |
| 10 | Bulb socket | 808175 | 1 | |
| 10 | Bulb socket | 863945 | 1 | For 873625,873624,873664 |
| 11 | Bulb | 182059 | 1 | |
| 11 | Bulb | 828818 | 1 | 24V 2WBA7S |
| 11 | Bulb | 863946 | 1 | 12Vx1,2W W2x4,6d |
| 11 | Bulb | 863947 | 1 | 24V 1, 2W, W2x4,6d |
| 12 | Starter switch | 864277 | 1 | Diode 1624694 should be used on engines with stop solenoid, energized to run. |
| 13 | Plastic nut | 859955 | 1 | |
| 14 | Key | 859953 | 2 | |
| 15 | Horn | 8143028 | 1 | 24V, (872874) |
| 16 | Sensor | 1581226 | 1 | For expansion tank made of plastic., L=136mm (849371) |
| 16 | Level indicator | 1581232 | 1 | |
| 17 | Gasket | 11994 | 1 | |
| 18 | Level relay | 1622515 | 1 | |
| 19 | Clamp | 941772 | 1 | |
| 20 | Wiring harness | 863867 | 1 | L=2500mm |
| 20 | Wiring harness | 863868 | 1 | L=8000mm |
| 21 | Wiring harness | 866894 | 1 | |
| 23 | Cable tie | 948211 | 1 |
| Item | Part Name | Part No. |
| 4 | Thermo monitor, coolant temp. 848829 | 848829 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P, TD121GP-87, TWD1210P, TWD1211P TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TAD1630V, TWD1630V TD100G-87 TD100GG-87 TD100HP-87 TD100HPB-87 TD1010G, TWD1010G TD1030ME, TWD1030ME TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD121G-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE TD121GG-87 TD121GGP-87 TD121GP-87 TD164KAE TD520VE, TD720VE TD610G, TWD610G TD610M, TD630ME TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD61A TD61AG TD61AP TD61AW, TD61ACE TD710G, TWD710G, TAD730G TD71A TD71A, TID71A, TWD710V TD71AG TD71AP TD71AW, TD71ACE TD730ME, TWD730ME, TWD731ME TD730VE, TWD731VE, TAD730V TID100K-87 TID100KG-87 TID100KGP-87 TID100KP-87 TID100KPB-87 TID121K-87 TID121KG-87 TID121KGP TID121KP-87 TID121KPB-87 TID121L-87 TID121LG-87 TID121LP-87 TID121LPB-87 TID162AG, TID162AGP, TID162AP, TID162APB TID61AG TID71A TID71AG TID71AP TWD1230ME TWD1231VE TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD610P TWD630ME TWD710P, TAD730P TWD740GE, TAD740GE, TAD741GE |
| Application | Contacts and Sensors Contacts and Sensors: A Contacts and Sensors: B Contacts and Sensors: C Electrical Components, Contacts and Sensors Electrical Materials Electrical Materials: A Electrical Materials: B Electrical Materials: C Electrical System and Instruments Electrical System and Instruments: 868125 Electrical System and Instruments: 868126 Electrical System and Instruments: 868127 Electrical System and Instruments: 868128 Electrical System and Instruments: 868129 Electrical System and Instruments: 868133 Electrical System and Instruments: 868134 Electrical System and Instruments: 868135 Electrical System and Instruments: 868136 Electrical System and Instruments: 868137 Electrical System and Instruments: 868138 Electrical System and Instruments: 868139 Electrical System and Instruments: 868145 Electrical System and Instruments: 868146 Electrical System and Instruments: 868147 Electrical System and Instruments: 868450 Electrical System and Instruments: 868452 Electrical System and Instruments: 868454 Electrical System and Instruments: 868456 Electrical System and Instruments: A Electrical System and Instruments: B Electrical System and Instruments: C Electrical System and Instruments: TD100GGP-87 Electrical System and Instruments: TD121GPB-87 Electrical System and Instruments: TID121LGP87 Electrical System and Instruments: TID121LGUT Water Pump and Thermostat |
| Specification | |
| Descriptions | 103°C 103°C, Replaced by 21510547 103°C,STD ALT |
