Thermostat 3839110

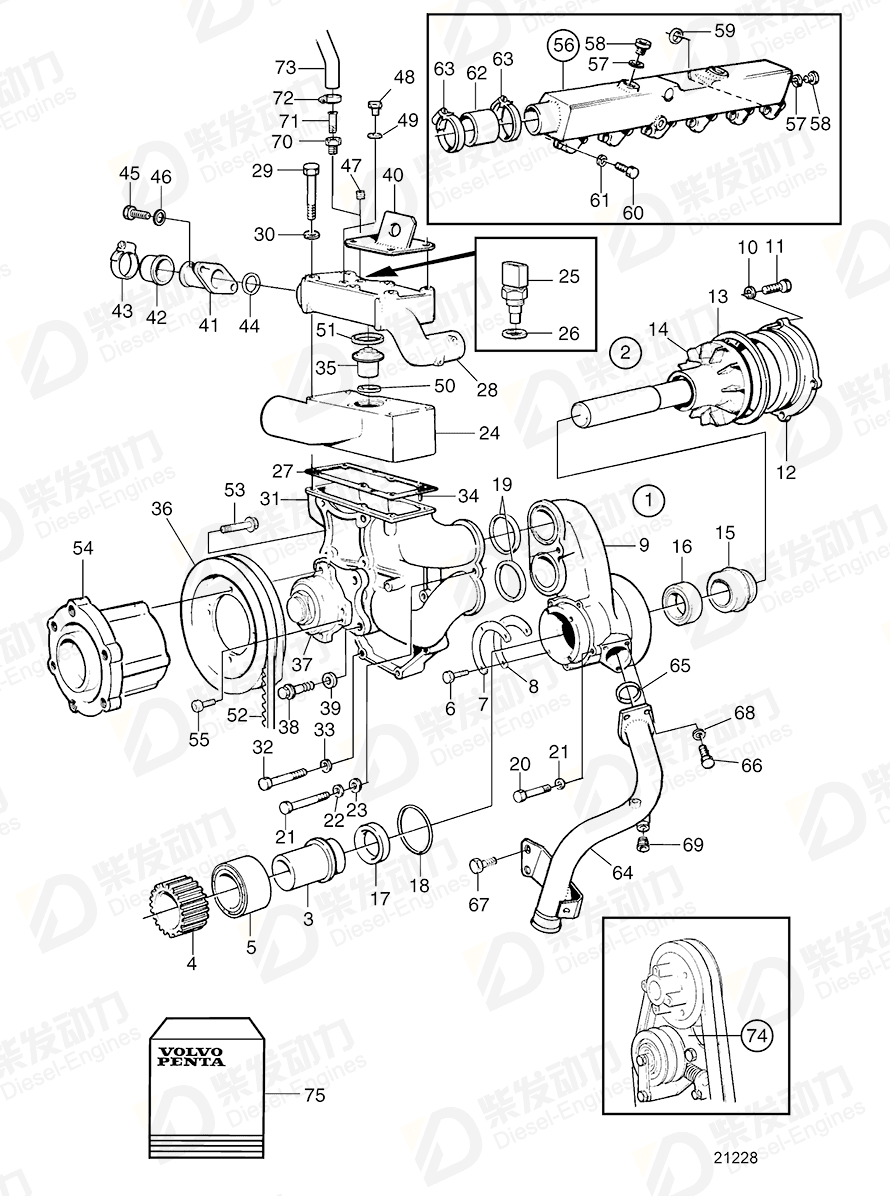

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump | 1675945 | 1 | SN-2100298820 |
| 1 | Coolant pump | 3803537 | 1 | |
| 1 | Coolant pump | 20431484 | 1 | |
| 2 | Shaft | 1675947 | 1 | |
| 2 | Shaft | 3184813 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 4 | Gear | 470265 | 1 | |
| 5 | Ball bearing | 181286 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 6 | Hexagon screw | 940100 | 3 | |
| 7 | Lock washer | 1545359 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 8 | Lock washer | 1545358 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 10 | Spring washer | 941906 | 4 | |
| 11 | Hexagon screw | 955513 | 4 | |
| 12 | Cover | 469418 | 1 | |
| 13 | O-ring | 925262 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 14 | Impeller | 1675944 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 15 | Sealing ring | 1676561 | 1 | Included in repair kit 276936 for water pump 20431484., (1675943) |
| 16 | Ball bearing | 184816 | 1 | (183894) |
| 16 | Ball bearing | 184831 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 17 | Sealing ring | 978293 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 18 | O-ring | 925257 | 1 | |
| 19 | O-ring | 1664473 | 2 | (925254) |
| 20 | Hexagon screw | 955542 | 4 | |
| 21 | Hexagon screw | 955535 | 1 | |
| 22 | Spring washer | 942336 | 5 | |
| 23 | Washer | 940097 | 1 | |
| 24 | Thermostat housing | 470396 | 1 | |
| 27 | Gasket | 423352 | 1 | |
| 28 | Thermostat housing, upper | 3827939 | 1 | (3826317) |
| 29 | Hexagon screw | 959798 | 6 | |
| 30 | Washer | 940097 | 2 | |
| 31 | Thermostat housing | 8193578 | 1 | (478942) |
| 32 | Hexagon screw | 955535 | 5 | |
| 32 | Hexagon screw | 955541 | 2 | |
| 33 | Spring washer | 942336 | 7 | |
| 34 | Spring pin | 951973 | 2 | |
| 35 | Thermostat | 3839110 | 1 | 75°C |
| 36 | Pulley | 1675847 | 1 | |
| 37 | Fan hub | 1675786 | 1 | |
| 38 | Hexagon screw | 955535 | 4 | |
| 39 | Spring washer | 942336 | 4 | |
| 40 | Anchorage | 475888 | 1 | |
| 41 | Connecting pipe | 845435 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type |
| 42 | Plastic plug | 845422 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type |
| 43 | Hose clamp | 994560 | 1 | |
| 44 | Sealing ring | 469477 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type (424345) |
| 45 | Hexagon screw | 940135 | 2 | |
| 46 | Spring washer | 941907 | 2 | |
| 47 | Plug | 479977 | 2 | |
| 48 | Plug | 982293 | 1 | (960632) |
| 49 | Gasket | 11998 | 1 | |
| 50 | Sealing ring | 1544710 | 1 | |
| 51 | Sealing ring | 1544410 | 1 | |
| 53 | Flange screw | 947760 | 4 | M8x40mm |
| 55 | Six point socket scr | 969407 | 2 | |
| 56 | Water pipe | 479601 | 1 | (847512) |
| 57 | Gasket | 468463 | 3 | |
| 58 | Plug | 467366 | 3 | |
| 59 | O-ring | 423281 | 6 | |
| 60 | Hexagon screw | 955525 | 12 | |
| 61 | Spring washer | 941907 | 12 | |
| 62 | Radiator hose | 470464 | 1 | (468216) |
| 63 | Hose clamp | 943479 | 2 | |
| 64 | Connecting pipe | 3828689 | 1 | |
| 65 | O-ring | 925092 | 1 | |
| 66 | Hexagon screw | 940135 | 3 | |
| 67 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 68 | Spring washer | 941907 | 3 | |
| 69 | Plug | 479977 | 2 | |
| 70 | Nipple | 479954 | 1 | (190130) |
| 71 | Nipple | 192555 | 1 | SN-XXXXXXXXXX/262417 |
| 75 | Repair kit, water pump | 276936 | 1 |
| Item | Part Name | Part No. |
| 35 | Thermostat 3839110 | 3839110 |
| Details | |
| Engine model | TAD1030V, TWD1031VE TAD730G TAD740GE, TAD741GE TD1210G, TWD1210G, TWD1211G TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE TD610G, TWD610G TD610V TD630VE TD710G TD71A, TD730VE, TAD730V TID71A, TWD710V, TWD731VE TWD1231VE TWD1240VE TWD1620G TWD1630G TWD1630V TWD610V, TWD630VE TWD710G TWD740GE TWD740VE |
| Application | Water Pump and Thermostat Water Pump and Thermostat Housing Water Pump and Thermostat Housing: A Water Pump and Thermostat Housing: B Water Pump and Thermostat SN-XXXXXXXXXX/21158 Water Pump and Thermostat SNXXXXXXXXXX/211549-: A Water Pump and Thermostat: A Water Pump and Thermostat: B Water Pump, Thermostat and Fan Bearing Water Pump, Thermostat Housing and Water Filter Water Pump, Thermostat Housing and Water Filter. with Air Compressor Mounted |
| Specification | |
| Descriptions | 75°C 75°C blue 75°C for TWD1031VE 75°C, (1661993) |
