Throttle 22123557

Throttle 22123557

  • Brandsvolvo penta
  • Part No.: 22123557
  • Availability: 联系我们
No. Part Name Part Number Qty Description
1 Inlet manifold 21647366 1
2 Gasket 20850506 1
3 Flange screw 996457 12
4 Cable tie 980881 1
5 Hose nipple 945713 1
6 Gasket 947281 1
7 Intermediate housing 21734948 1
8 Plane gasket 3979639 2
10 Connection pipe 21141563 1
11 Flange screw 984744 4
12 Flange screw 984742 4 L=80mm
13 Throttle 22123557 1
14 Gasket 21313833 2
15 Mixing chamber 21857786 1
16 Gasket 21724572 1
17 Cover 22305738 1
18 Flange screw 984735 3
19 Sealant 1161231 1 304ml
19 Sealant 1161277 1 20g
Item Part Name Part No.
13 Throttle 22123557 22123557

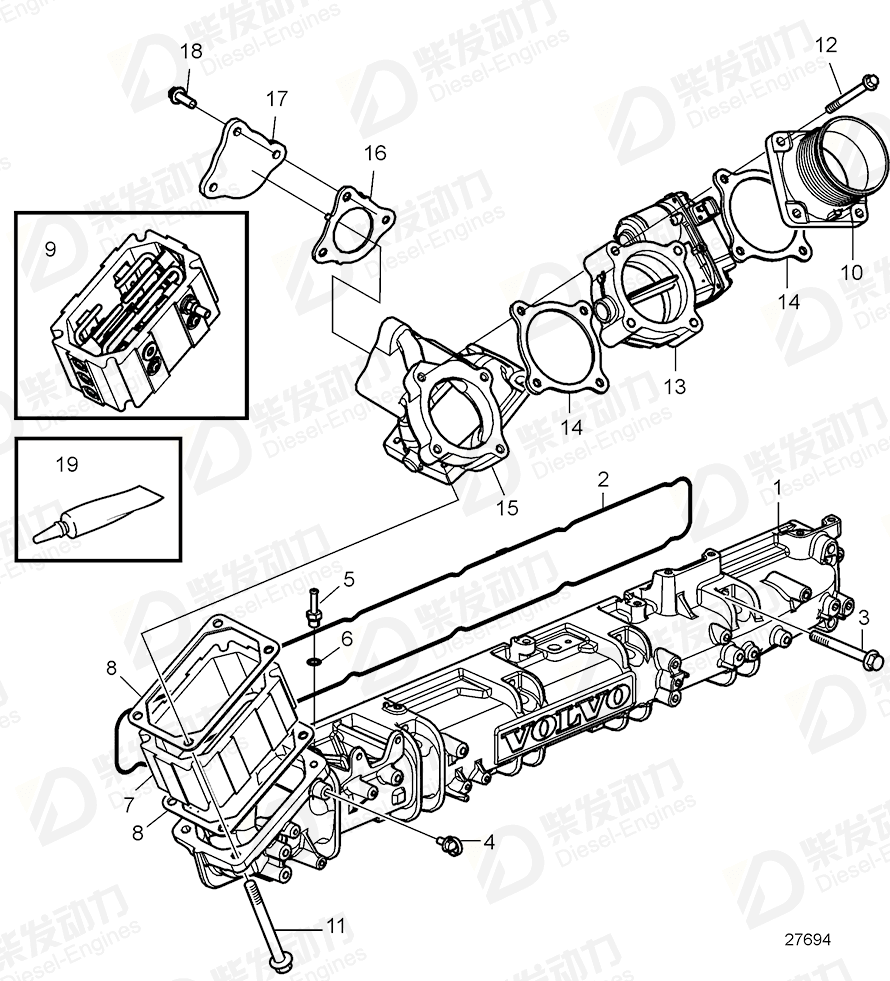

volvo penta Throttle 22123557 Drawing
Details
Engine model TAD1150VE, TAD1151VE, TAD1152VE
TAD1170VE, TAD1171VE, TAD1172VE
TAD1360VE
TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE
TAD1361VE
TAD1363VE
TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE
TAD1670VE, TAD1671VE, TAD1672VE
Application Induction Manifold, RC
Inlet Manifold
Inlet Manifold, Air Intake Left Side
Inlet Manifold, Pushing Fan
