Thrust washer 1695966

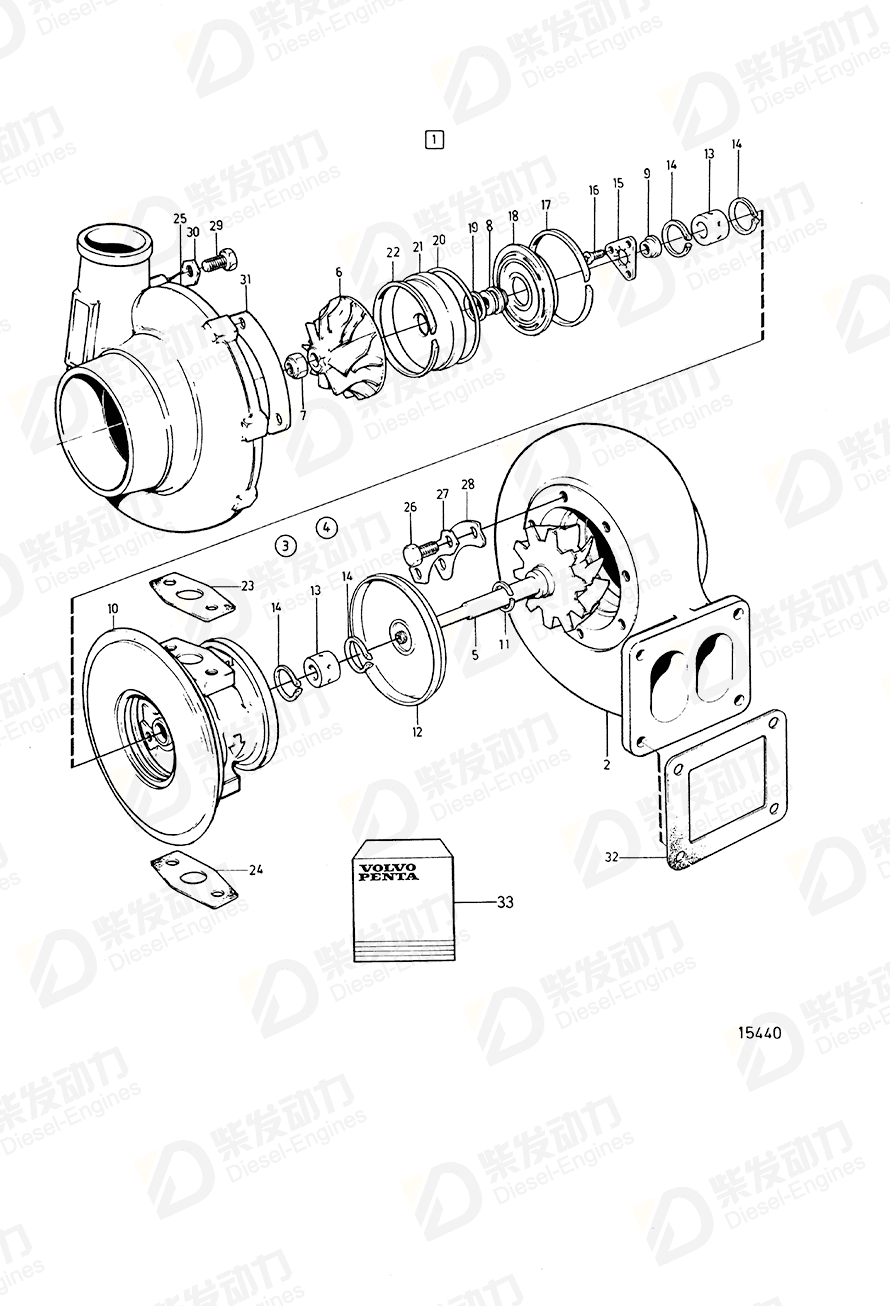

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802017 | 1 | (846652) |
| 3 | Rotor unit | 1696394 | 1 | |
| 4 | Rotor kit | 1696395 | 1 | |
| 6 | Compressor wheel | 1695963 | 1 | |
| 7 | Lock nut | 1695964 | 1 | |
| 8 | Sleeve | 1695965 | 1 | |
| 9 | Thrust washer | 1695966 | 1 | |
| 11 | Piston ring | 466685 | 1 | |
| 13 | Bushing | 1695970 | 2 | |
| 14 | Snap ring | 411790 | 4 | |
| 15 | Thrust bearing | 1697670 | 1 | |
| 18 | Splash plate | 1695972 | 1 | |
| 19 | Piston ring | 1695971 | 1 | |
| 21 | End plate | 1695968 | 1 | |
| 23 | Plane gasket | 420641 | 1 | |
| 24 | Plane gasket | 420643 | 1 | |
| 26 | Screw | 1695980 | 6 | |
| 27 | Lock washer | 411776 | 3 | |
| 28 | Attaching plate | 1695981 | 3 | |
| 29 | Screw | 1695982 | 8 | |
| 30 | Lock plate | 1695983 | 4 | |
| 31 | Clamping plate | 1695984 | 4 | |
| 32 | Gasket | 8194365 | 1 | |
| 33 | Overhaul kit | 275948 | 1 | See group 99 |
| Item | Part Name | Part No. |
| 9 | Thrust washer 1695966 | 1695966 |
| Details | |
| Application | Turbo Turbo: 1545097 Turbo: 846652 Turbocharger, Components |
