Timing gear casing 470646

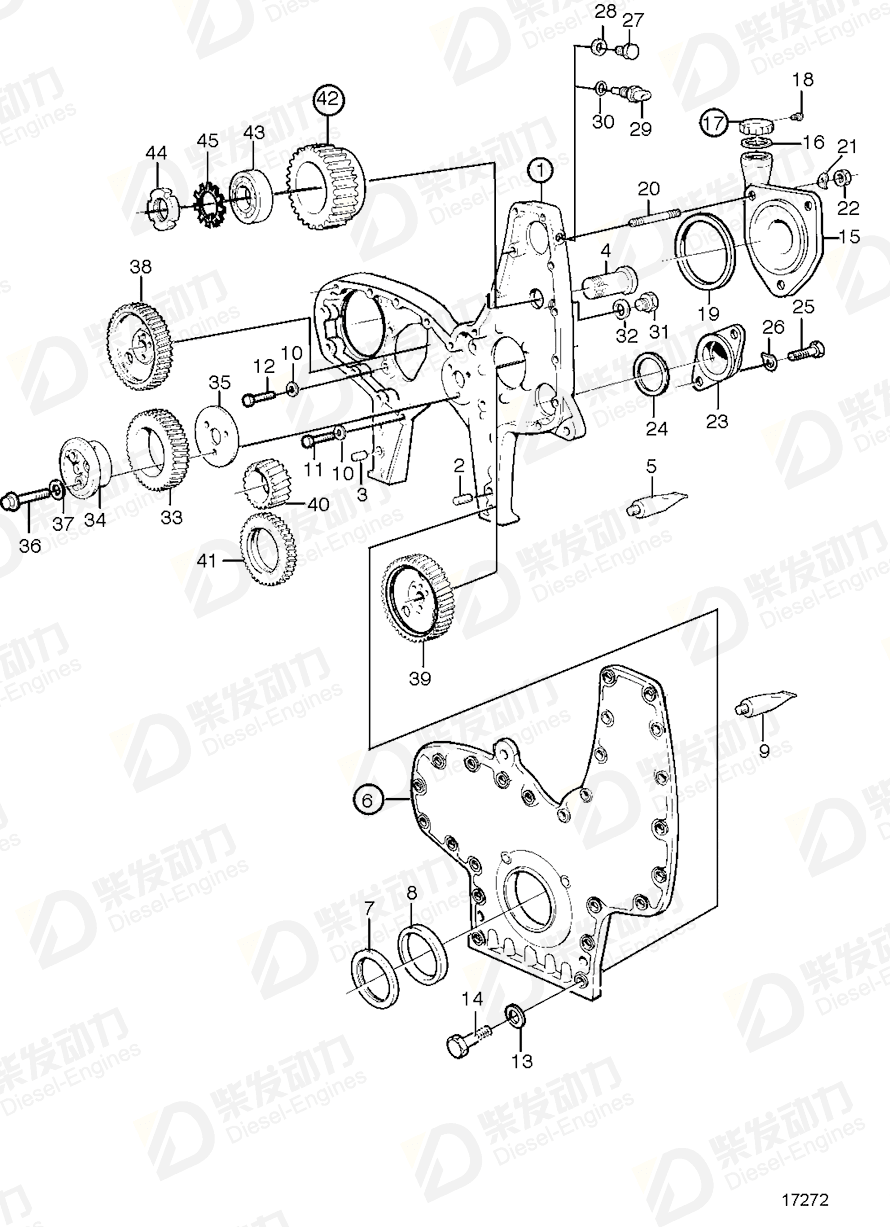

| No. | Part Name | Part Number | Qty | Description |
| 1 | Timing gear casing | 470646 | 1 | With thread 7/16 for alternator screw., SN-XXXXXXXXXX/224464 |
| 1 | Timing gear casing | 479666 | 1 | Repl by 8194639 |
| 1 | Timing gear casing | 8194639 | 1 | |
| 2 | Pin | 941510 | 1 | For Aquamatic drive unit and Duoprop drive unit. |
| 3 | Pin | 941511 | 1 | For Aquamatic drive unit and Duoprop drive unit. |
| 4 | Bearing spindle | 8194626 | 1 | |
| 5 | Sealant | 1161231 | 1 | 304ml |
| 5 | Sealant | 1161277 | 1 | 20g |
| 6 | Cap | 864623 | 1 | |
| 7 | Sealing ring | 941666 | 1 | |
| 8 | Sealing ring | 424983 | 1 | |
| 9 | Sealant | 1161231 | 1 | 304ml |
| 9 | Sealant | 1161277 | 1 | 20g |
| 10 | Spring washer | 942336 | 5 | |
| 11 | Screw | 941939 | 4 | |
| 12 | Hexagon screw | 955537 | 1 | |
| 13 | Spring washer | 942336 | 22 | |
| 14 | Hexagon screw | 940162 | 8 | MO-XXXXX/105194 |
| 14 | Hexagon screw | 955540 | 2 | MOXXXXX/105195- |
| 14 | Hexagon screw | 955542 | 8 | |
| 15 | Oil filler pipe | 849197 | 1 | |
| 16 | Gasket | 1275379 | 1 | |
| 17 | Oil filler cap | 421753 | 1 | |
| 18 | Cross recessed screw | 955126 | 3 | |
| 19 | O-ring | 975610 | 1 | For engines without air compressor. |
| 20 | Stud | 953346 | 3 | |
| 21 | Spring washer | 941911 | 3 | |
| 22 | Hexagon nut | 955828 | 3 | |
| 23 | Cover | 468093 | 1 | |
| 24 | Sealing ring | 468094 | 1 | |
| 25 | Hexagon screw | 955535 | 2 | |
| 26 | Spring washer | 942336 | 2 | |
| 27 | Plug | 960633 | 2 | |
| 28 | Gasket | 947625 | 2 | |
| 30 | O-ring | 949656 | 1 | |
| 31 | Plug | 192114 | 1 | |
| 32 | Gasket, plug | 18677 | 1 | |
| 33 | Idler gear | 467461 | 1 | MB20A MO-1470/XXXX. |
| 34 | Bearing spindle | 422766 | 1 | (467463) |
| 35 | Thrust washer | 478951 | 1 | |
| 36 | Screw | 468738 | 3 | MO92953/XXXXX- |
| 37 | Disc spring | 942180 | 3 | MO-56861/XXXXX |
| 42 | Idler gear, incl. bearing | 478959 | 1 | |
| 44 | Castle nut | 478955 | 1 | (906634) |
| 45 | Lock washer | 907024 | 1 |
| Item | Part Name | Part No. |
| 1 | Timing gear casing 470646 | 470646 |
| Details | |
| Engine model | TAD1230G, TAD1231GE, TAD1232GE TAD1230P, TD121GP-87, TWD1210P, TWD1211P TD120HP-86 TD1210G, TWD1210G, TWD1211G TD121G-87, TD121GG-87, TD121GGP-87, TD121GPB-87 TID121FG TID121K, TID121KG, TID121KP, TID121KGP, TID121LG, TID121LGP, TID121LP TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG-87, TID121LG UT-87, TID121LGP-87, TID121LP-87, TID121LPB-87 |
| Application | Timing Gear Casing and Gears TIMING GEAR CASING AND TIMING GEARS Timing Gear Housing Timing Gear Housing: A Timing Gear Housing: B |
| Specification | |
| Descriptions | (470218) SN -2120224464 With thread 7/16 for alternator screw., SN-XXXXXXXXXX/224464 |
