Toothed washer 940109

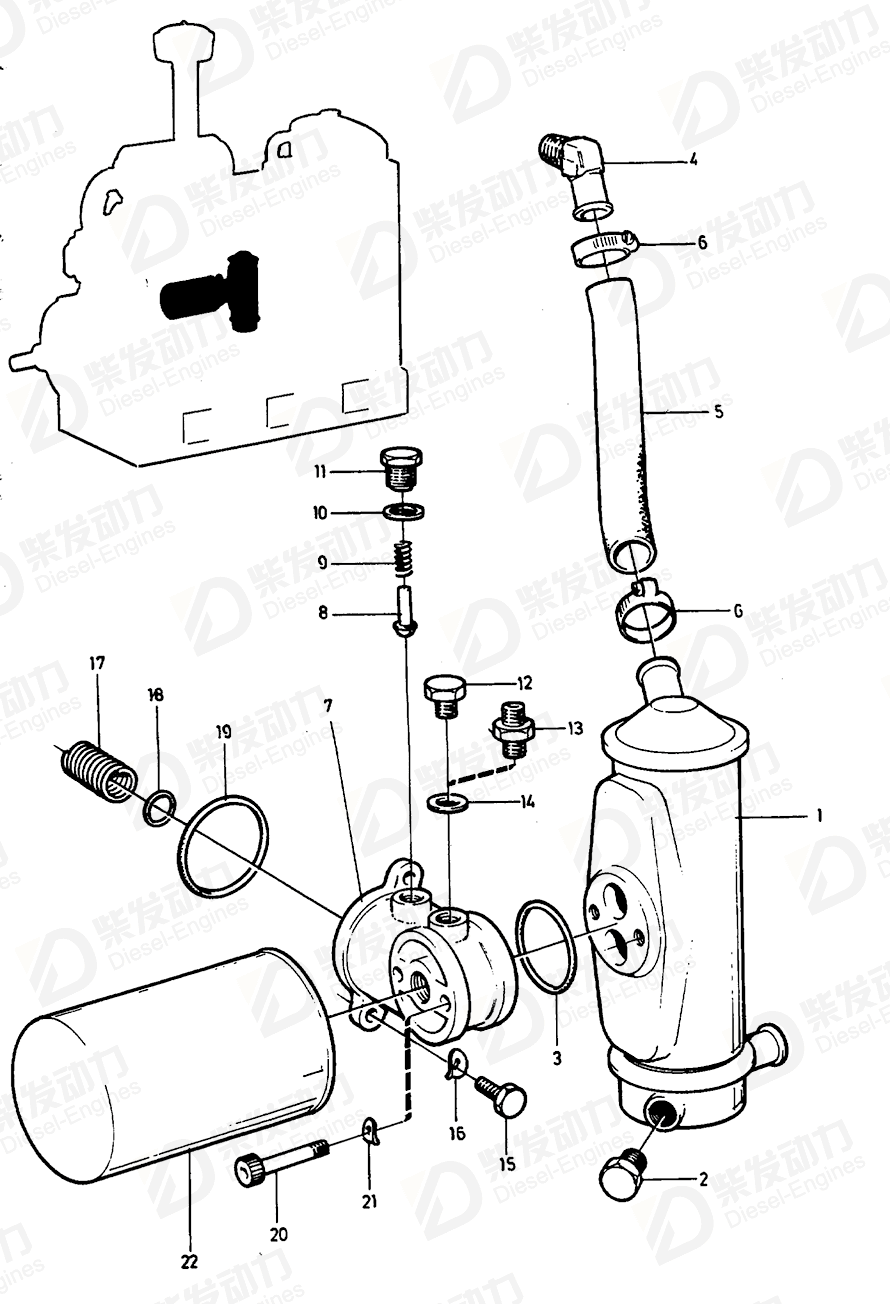

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil cooler | 4804681 | 1 | LATE TYPE |
| 2 | Plug | 180759 | 1 | |
| 3 | O-ring | 926039 | 1 | |
| 4 | Elbow nipple | 942590 | 1 | |
| 5 | Rubber hose | 943369 | 1 | L=165 mm |
| 6 | Hose clamp | 943473 | 2 | |
| 7 | Bracket | 4804521 | 1 | |
| 8 | Valve cone | 471085 | 1 | |
| 9 | Compression spring | 466653 | 1 | |
| 10 | Gasket | 957185 | 1 | |
| 11 | Plug | 466624 | 1 | |
| 12 | Plug | 960631 | 1 | |
| 14 | Gasket | 957179 | 1 | For governor 225-1200. |
| 15 | Hexagon screw | 955535 | 2 | |
| 16 | Toothed washer | 955950 | 2 | |
| 17 | Nipple | 785816 | 1 | |
| 18 | O-ring | 926033 | 1 | |
| 19 | O-ring | 926040 | 1 | |
| 20 | Screw | 4804519 | 2 | |
| 21 | Toothed washer | 940109 | 2 | |
| 22 | Oil filter | 4804406 | 1 |
| Item | Part Name | Part No. |
| 21 | Toothed washer 940109 | 940109 |
| Details | |
| Engine model | D42A TD45B |
| Application | Oil Cooler Sidemounted with Installation Components: A Oil Cooler Sidemounted with Installation Components: B OIL COOLER, SIDE MOUNTED WITH INSTALLATION COMPONENTS |
