Torsion spring 845215

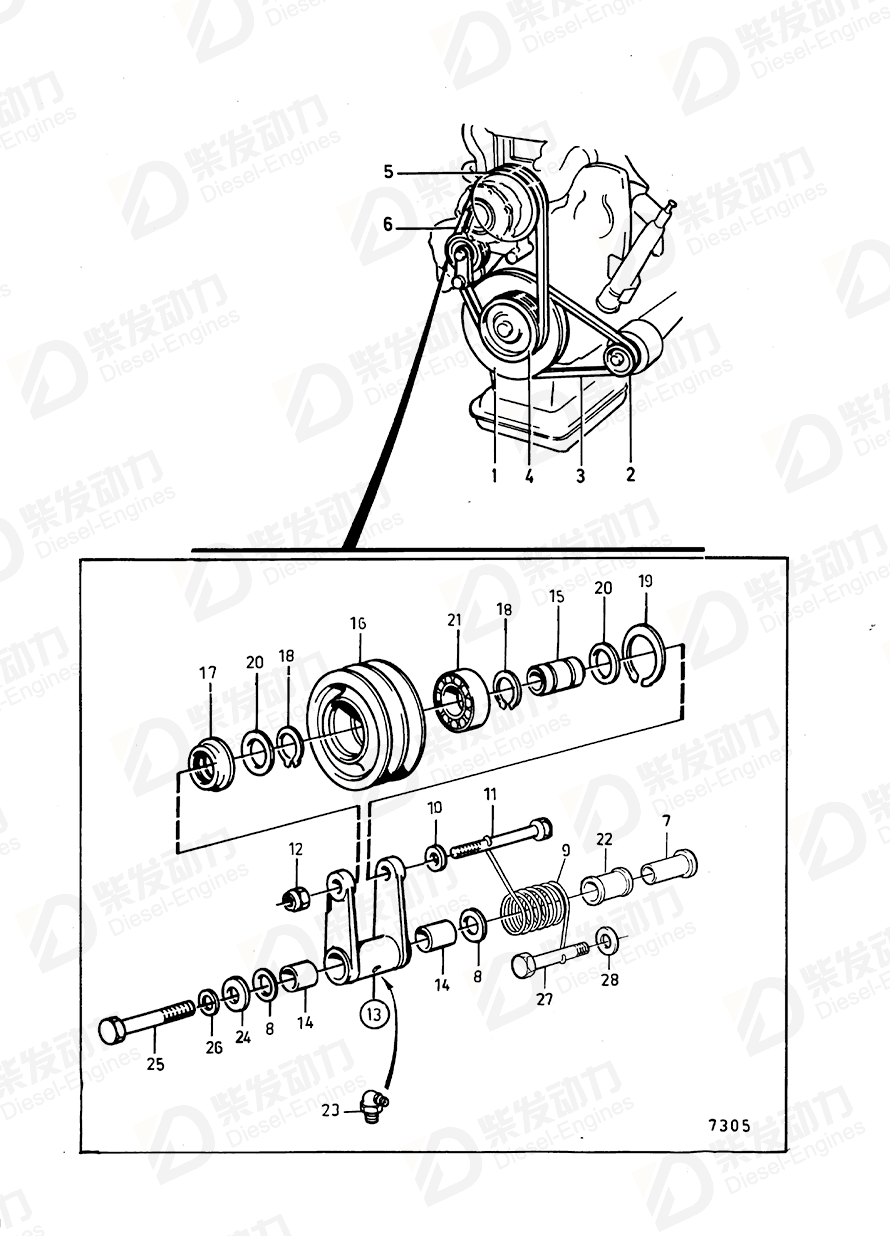

| No. | Part Name | Part Number | Qty | Description |
| 6 | Belt tensioner | 847892 | 1 | |
| 6 | V-belt | 966397 | 1 | L=2X1313mm |
| 7 | Spindle | 843926 | 1 | |
| 8 | Wear washer | 843927 | 2 | |
| 9 | Torsion spring | 845215 | 1 | Included in spring kit 876020. |
| 10 | Spring washer | 941908 | 1 | |
| 11 | Screw | 955328 | 1 | |
| 12 | Lock nut | 963107 | 1 | |
| 13 | Link arm | 847034 | 1 | |
| 14 | Bearing bushing | 946176 | 1 | |
| 15 | Spindle | 843925 | 1 | |
| 16 | Pulley | 844048 | 1 | |
| 17 | Protecting plate | 844049 | 2 | |
| 18 | Retaining ring | 914462 | 2 | |
| 19 | Retaining ring | 914533 | 1 | |
| 20 | Sealing ring | 965862 | 2 | |
| 21 | Ball bearing | 1544092 | 1 | (181430) |
| 22 | Spacer sleeve | 845208 | 1 | Included in spring kit 876019. |
| 23 | Lubricating nipple | 914170 | 1 | |
| 24 | Washer | 18702 | 1 | |
| 25 | Hexagon screw | 959821 | 1 | L=152mm |
| 26 | Spring washer | 941911 | 1 | |
| 27 | Hexagon screw | 955542 | 1 | |
| 28 | Spring kit | 876020 | 1 | See group 99 |
| 28 | Spring washer | 942336 | 1 |
| Item | Part Name | Part No. |
| 9 | Torsion spring 845215 | 845215 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1230G TAD1230G, TAD1232GE TAD1230P TAD1230V TAD1231GE, TAD1232GE TD100G-87 TD100G-87, TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD120HP-86 TD120HP-86, TD121G, TD121GG, TD121GG-86, TD121GGP, TID121K, TID121KG, TID121KP, TID121KGP, TID121LG, TID121LGP, TID121LP TD120HPP TD1210G TD1210G, TWD1210G, TWD1211G TD121G TD121G-87 TD121G-87, TD121GG-87, TD121GGP-87, TD121GP-87, TD121GPB-87, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG-87, TID121LG UT-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TD121GG, TD121GGP TD121GG-86 TD121GP-87 TD121GP-87, TWD1210P, TWD1211P TID120HPP TID121FG TID121K, TID121KG, TID121KP TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87 TID121L-87, TID121LG-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TID121LG, TID121LP TWD1210G TWD1210P, TWD1211P TWD1210V, TWD1211V TWD1211G TWD1230ME TWD1230VE, TWD1231VE |
| Application | Belt Tensioner Device Belt Tensioner Device, Early Design Belt Tensioner Device, Early Design: A Belt Tensioner Device, Early Design: B Belt Transmission and Automatic Belt Tensioner Belt Transmission and Belt Tensioner Device: A Belt Transmission and Belt Tensioner Device: B Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C Repair Kits: D |
| Specification | |
| Descriptions | Included in spring kit 876020. |
