Tube 465251

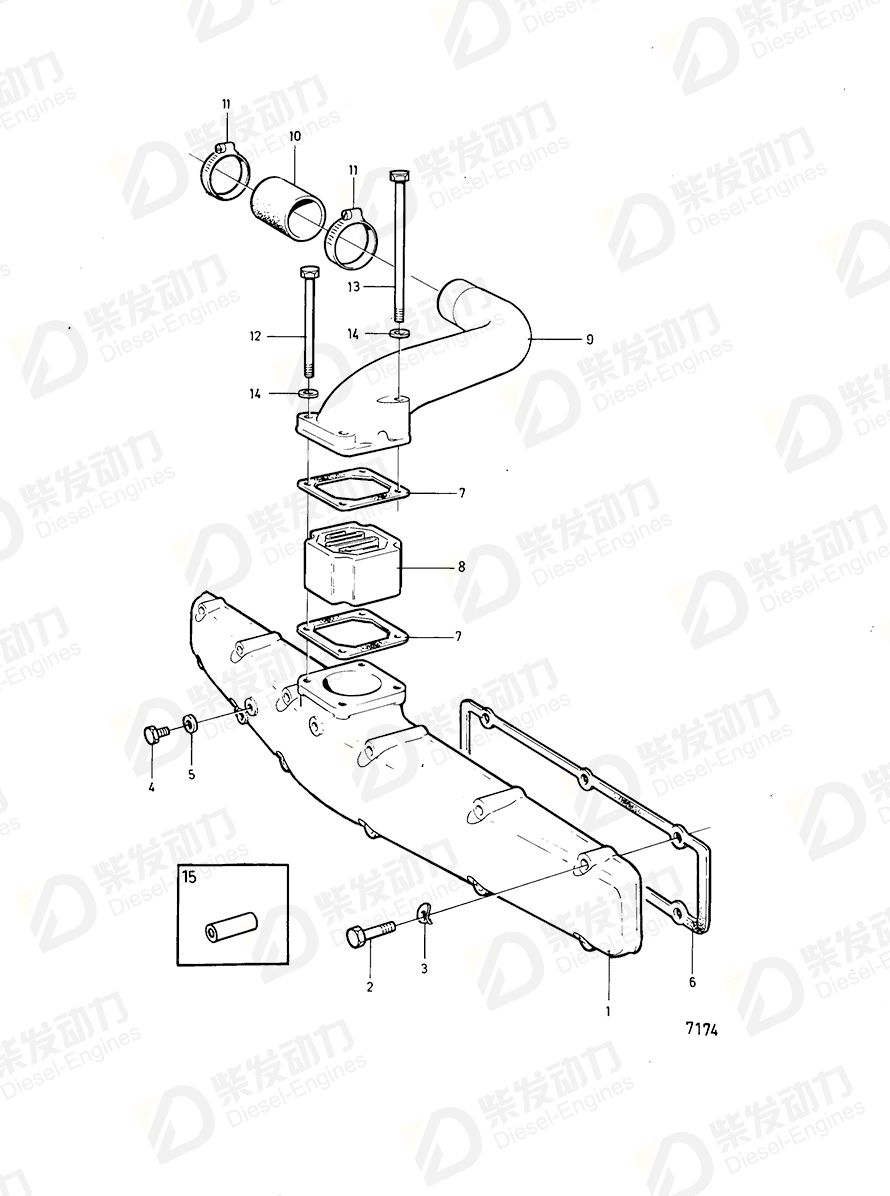

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet manifold, INLET MANIFOLD | 420028 | 1 | TD60D SPEC.867786 |
| 2 | Hexagon screw | 955526 | 4 | MD70BK spec 867116 MOXXXX/9685- |
| 2 | Hexagon screw | 955528 | 4 | |
| 2 | Hexagon screw | 955530 | 3 | |
| 2 | Hexagon screw | 955533 | 1 | For engine with 40° angle of inclination, L=102mm |
| 3 | Spring washer | 941907 | 12 | |
| 4 | Hexagon screw | 955523 | 1 | |
| 5 | Gasket | 11992 | 1 | |
| 6 | Gasket | 420071 | 2 | |
| 7 | Gasket | 466436 | 2 | |
| 8 | Starter element, starter element | 846848 | 1 | For engine with starting element., (843207) |
| 9 | Tube | 465251 | 1 | SEE GROUP 3 |
| 10 | Hose | 466327 | 1 | |
| 11 | Hose clamp | 943479 | 2 | |
| 12 | Hexagon screw | 955533 | 2 | For engine with 40° angle of inclination, L=102mm |
| 13 | Hexagon screw | 959795 | 2 | SN2120226440- |
| 14 | Spring washer | 941907 | 4 | |
| 15 | Spacer sleeve | 821539 | 1 | L=14mm, spec 9762 |
| Item | Part Name | Part No. |
| 9 | Tube 465251 | 465251 |
| Details | |
| Engine model | TD60D TD60D-83 TD610G TD610M TD610V TD61A TD61ACE TD61AG TD61AP TD630ME TD630VE TD640VE TD710G TD71A TD71ACE TD71AG TD71AP |
| Application | CONNECTING PIPE AND STARTING ELEMENT WITH INSTALLATION COMP. Induction Manifold with Installation Components INDUCTION MANIFOLD WITH INSTALLATION COMPONENTS: A INDUCTION MANIFOLD WITH INSTALLATION COMPONENTS: B Induction Manifold with Installation Components: TD61AGP Induction Manifold with Installation Components: TD71AGP Induction Manifold with Installation Components: TD71APB Inlet Manifold Inlet Manifold: A Inlet Manifold: B Inlet Manifold: C |
| Specification | |
| Descriptions | SEE GROUP 2B SEE GROUP 3 |
