Tube 845243

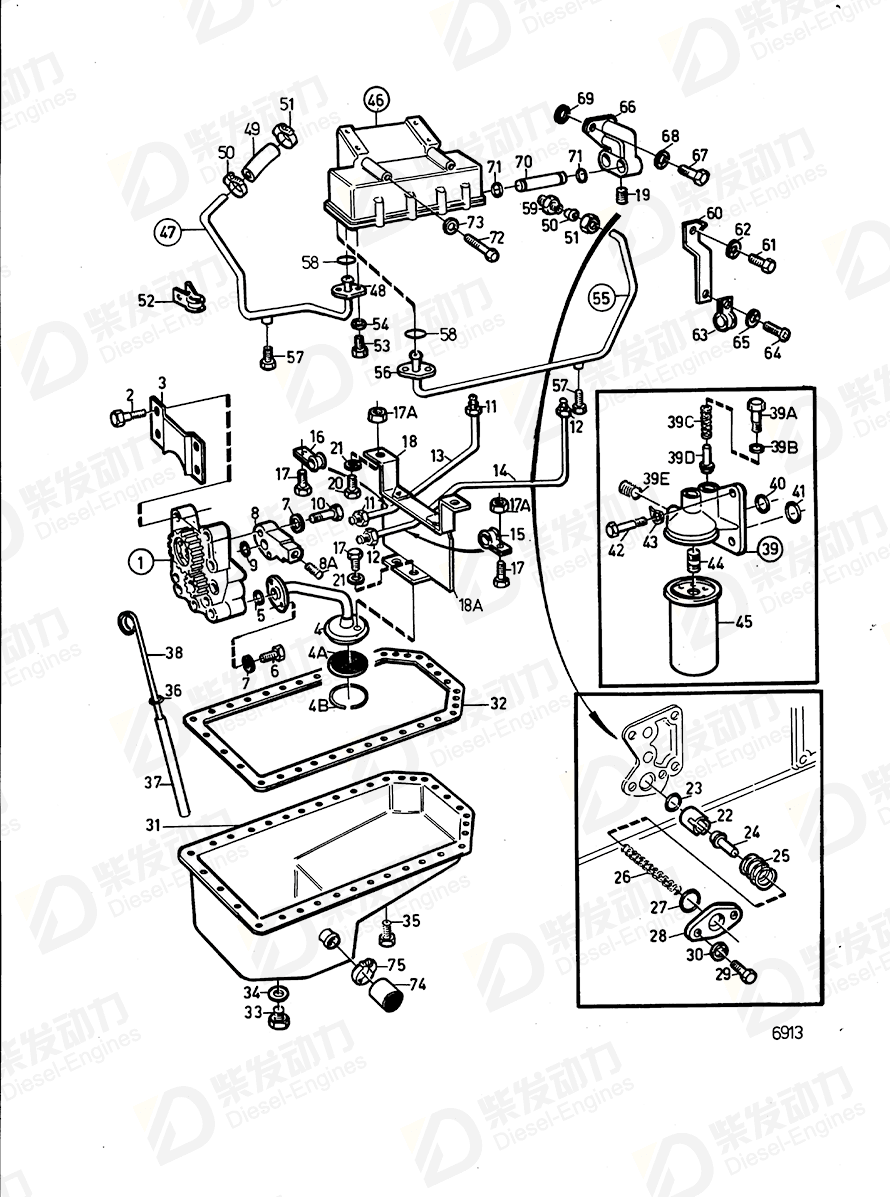

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 466530 | 1 | |
| 2 | Hexagon screw | 955538 | 4 | |
| 3 | Baffle | 421404 | 1 | |
| 4 | Oil strainer | 842131 | 1 | Spec. 867279, 867058 MOXXXXX/15607- |
| 5 | O-ring | 948229 | 1 | Early type |
| 6 | Hexagon screw | 955531 | 2 | Late type |
| 7 | Spring washer | 941907 | 4 | |
| 8 | Flange | 466880 | 1 | |
| 9 | O-ring | 949657 | 1 | (925060) |
| 10 | Hexagon screw | 959794 | 2 | |
| 11 | Fitting | 466906 | 2 | (940358) |
| 12 | Fitting | 466905 | 2 | |
| 13 | Tube | 466882 | 1 | |
| 14 | Tube | 466881 | 1 | |
| 15 | Clamp | 949746 | 1 | |
| 16 | Clamp | 949747 | 1 | |
| 17 | Flange screw | 942402 | 2 | |
| 17 | Flange screw | 942624 | 2 | 5/16UNCx13 |
| 18 | Bracket | 845074 | 1 | |
| 19 | Plug | 968145 | 2 | (952357) |
| 20 | Flange screw | 942402 | 2 | |
| 21 | Spring washer | 941907 | 4 | |
| 22 | Valve seat | 469468 | 1 | |
| 23 | Sealing ring | 469846 | 1 | |
| 24 | Valve cone | 471085 | 1 | |
| 25 | Compression spring | 470291 | 1 | |
| 26 | Spring | 466445 | 1 | For 471812 |
| 27 | O-ring | 949658 | 1 | (925061) early type |
| 28 | Cover | 469465 | 1 | |
| 29 | Hexagon screw | 955512 | 2 | |
| 30 | Washer | 192287 | 2 | Spec. 867055., Replaced by later production., Early type |
| 31 | Oil pan | 823613 | 1 | Spec. 867279, 867058 MOXXXXX/15607- |
| 32 | Gasket | 421025 | 1 | |
| 33 | Magnetic plug | 192538 | 1 | |
| 34 | Gasket | 957185 | 1 | |
| 35 | Flange screw | 942402 | 36 | |
| 36 | O-ring | 955982 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-. |
| 37 | Tube | 836179 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-. |
| 38 | Oil dipstick | 844626 | 1 | |
| 39 | Oil filter housing | 466631 | 1 | |
| 40 | O-ring | 949656 | 1 | |
| 41 | O-ring | 949658 | 1 | (925061) early type |
| 42 | Hexagon screw | 940115 | 3 | |
| 43 | Spring washer | 942336 | 3 | |
| 44 | Nipple | 466623 | 1 | |
| 45 | Oil filter | 466634 | 1 | |
| 46 | Oil cooler | 466644 | 1 | See group 2B |
| 47 | Tube | 845243 | 1 | Engine with automatic belt tensioner. |
| 49 | Rubber hose | 947481 | 1 | Engine with automatic belt tensioner., L=65mm |
| 4A | Wire gauze | 414621 | 1 | |
| 4B | Retaining ring | 118125 | 1 | |
| 50 | Hose clamp | 943473 | 1 | |
| 51 | Hose clamp | 943473 | 1 | |
| 52 | Clamp | 952630 | 1 | D = 17.5 MM LATE TYPE |
| 53 | Hexagon screw | 955525 | 4 | |
| 54 | Spring washer | 941907 | 4 | |
| 55 | Coolant pipe | 844831 | 1 | |
| 57 | Plug | 180759 | 2 | |
| 58 | O-ring | 944988 | 2 | |
| 59 | Nipple | 943192 | 1 | |
| 60 | Bracket | 466804 | 1 | |
| 61 | Hexagon screw | 940133 | 1 | |
| 62 | Spring washer | 942336 | 1 | |
| 63 | Clamp | 952630 | 1 | D = 17.5 MM LATE TYPE |
| 64 | Cross recessed screw | 950046 | 1 | |
| 65 | Spring washer | 941906 | 1 | |
| 66 | Housing | 466751 | 1 | |
| 67 | Hexagon screw | 940115 | 2 | |
| 68 | Spring washer | 942336 | 2 | |
| 69 | O-ring | 949656 | 2 | |
| 70 | Tube | 466752 | 2 | Replaced by 1pc 471386 pipe and 2pc 471387 seal ring. |
| 70 | Tube | 471386 | 2 | |
| 71 | Sealing ring | 471387 | 4 | |
| 71 | O-ring | 943177 | 8 | |
| 72 | Hexagon screw | 940115 | 2 | |
| 72 | Screw | 959811 | 2 | L=127mm |
| 73 | Spring washer | 942336 | 2 | |
| 73 | Washer | 955898 | 2 | Late type |
| 74 | Rubber cap | 837651 | 1 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053., Alt |
| 75 | Hose clamp | 943478 | 1 | 62 (951794) |
| 8A | Plug | 968145 | 1 | (952357) |
| 17A | Lock nut | 945467 | 2 | Late type |
| 18A | Support plate | 842133 | 1 | Spec. 867279, 867058 MOXXXXX/15607- |
| 39A | Plug | 466624 | 1 | |
| 39B | Gasket, plug | 18677 | 1 | |
| 39C | Compression spring | 466653 | 1 | |
| 39D | Valve cone | 471085 | 1 | |
| 39E | Plug | 952075 | 1 |
| Item | Part Name | Part No. |
| 47 | Tube 845243 | 845243 |
| Details | |
| Engine model | TD70G TID70G |
| Application | Lubricating System, Angle of Inclination 10° Lubricating System, Angle of Inclination 40° Lubricating System, Standard Model Lubricating System, Standard Model: A |
| Specification | |
| Descriptions | Engine with automatic belt tensioner. |
