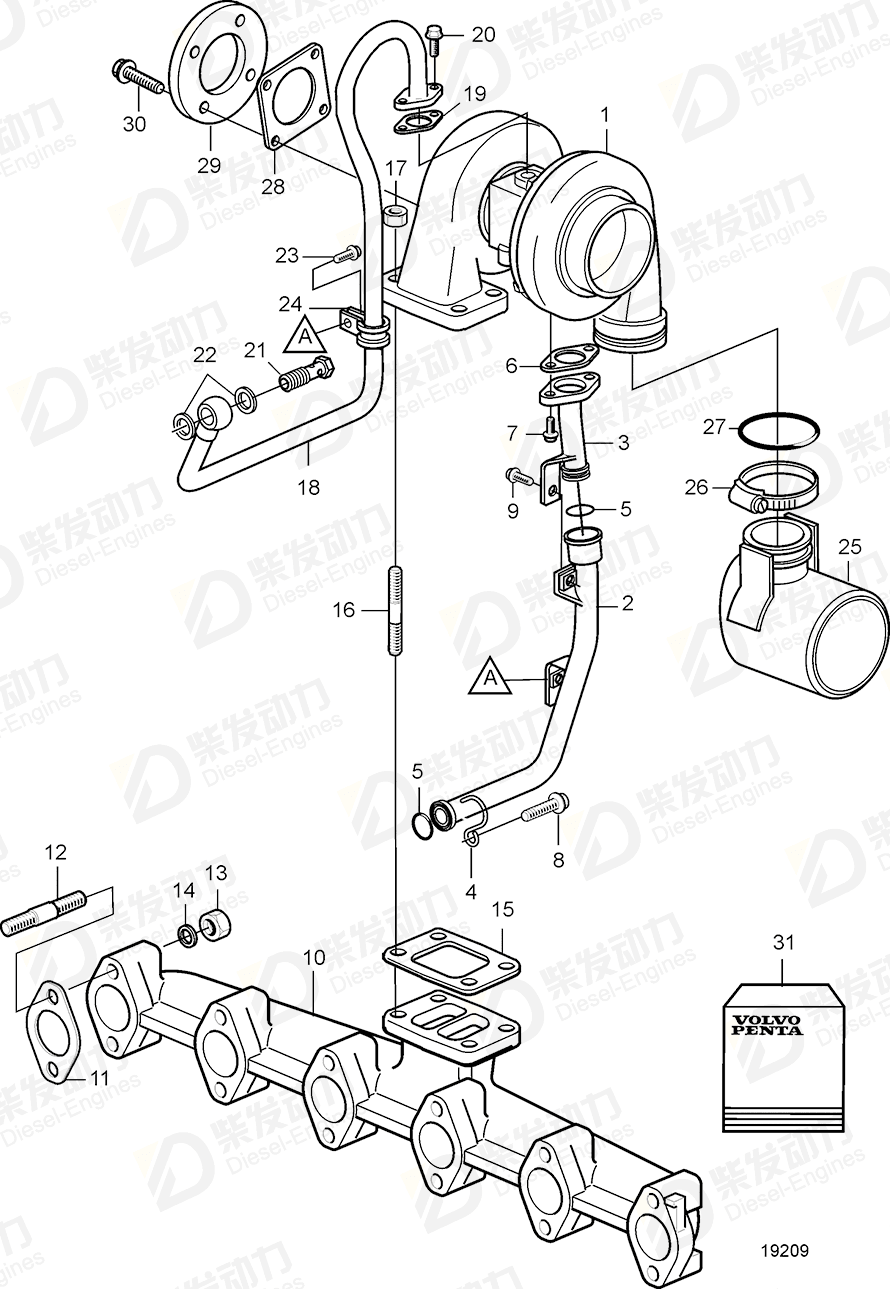

Turbocharger, 176kW 3802179
| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger, 176kW | 3802179 | 1 | TAD720VE |
| 1 | Turbocharger, 176kW | 20460372 | 1 | TAD720VE |
| 2 | Return line | 20450976 | 1 | |
| 3 | Return line | 20450977 | 1 | Replaces by 21146146., If change of 20450977 must also 20450976 be changed. |
| 4 | Retainer | 20405789 | 1 | |
| 5 | O-ring | 20405822 | 2 | |
| 6 | Plane gasket | 20405790 | 1 | |
| 7 | Flange screw | 984734 | 2 | |
| 8 | Flange screw | 20405792 | 1 | |
| 9 | Flange screw | 20405898 | 1 | |
| 10 | Exhaust manifold | 20534529 | 1 | |
| 11 | Gasket | 20557208 | 6 | |
| 12 | Stud | 20405587 | 12 | |
| 13 | Nut retainer | 20505959 | 12 | (20405593) |
| 14 | Washer | 20799731 | 12 | |
| 15 | Gasket | 20405970 | 1 | |
| 16 | Stud | 20412314 | 4 | |
| 17 | Hexagon nut | 20412308 | 4 | |
| 18 | Oil line | 20450974 | 1 | |
| 19 | Gasket | 20405595 | 1 | 24Repair kit将已选物品添加至购物车 |
| 20 | Flange screw | 984734 | 2 | |
| 21 | Hollow screw | 25167 | 1 | |
| 22 | Gasket | 969011 | 2 | |
| 23 | Flange screw | 20405792 | 1 | |
| 24 | Clamp | 20450987 | 1 | |
| 25 | Manifold | 20451015 | 1 | |
| 26 | Hose clamp | 20412420 | 1 | |
| 27 | O-ring | 20405535 | 1 | |
| 28 | Gasket | 20405969 | 1 | |
| 29 | Flange | 20405916 | 1 | |
| 30 | Flange screw | 20405874 | 4 |
| Item | Part Name | Part No. |
| 1 | Turbocharger, 176kW 3802179 | 3802179 |
| Details | |
| Engine model | TAD720VE |
| Application | Exhaust Manifold and Turbocharger. High Mounted Turbo. Stage 1, Tier 1 SN-01099468 Exhaust Manifold and Turbocharger. High Mounted Turbo. Stage 1, Tier 1 SN01099469- Exhaust Manifold and Turbocharger. Low Mounted Turbo. Exhaust Outlet Front. Stage 1, Tier 1 Exhaust Manifold and Turbocharger. Low Mounted Turbo. Stage 1, Tier 1 |
| Specification | |
| Descriptions | TAD720VE |
