Turbocharger 3801158

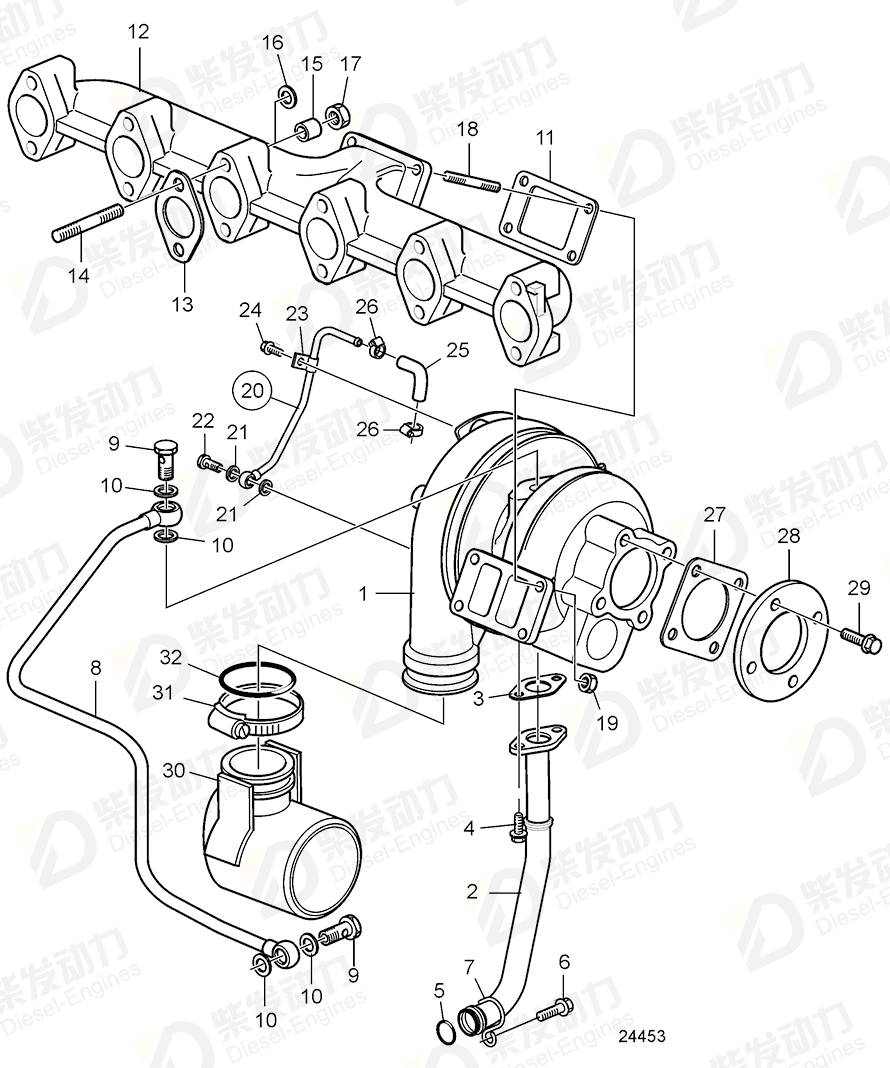

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3801158 | 1 | |
| 1 | Turbocharger | 20917417 | 1 | |
| 2 | Return line | 21165433 | 1 | |
| 2 | Return line | 21165444 | 1 | |
| 3 | Plane gasket | 20405790 | 1 | |
| 4 | Flange screw | 984734 | 2 | |
| 5 | O-ring | 20405822 | 2 | |
| 6 | Flange screw | 20405792 | 1 | |
| 7 | Retainer | 20405789 | 1 | |
| 8 | Oil line | 20838238 | 1 | |
| 9 | Hollow screw | 25167 | 2 | |
| 10 | Gasket | 969011 | 4 | |
| 11 | Gasket | 20559835 | 1 | |
| 12 | Exhaust pipe | 20459234 | 1 | |
| 13 | Gasket | 20557208 | 6 | |
| 14 | Stud | 20405587 | 12 | |
| 14 | Stud | 20575919 | 12 | |
| 15 | Spacer sleeve | 20847865 | 12 | |
| 16 | Washer | 20799731 | 12 | |
| 17 | Nut retainer | 20505959 | 12 | (20405593) |
| 18 | Stud | 20799733 | 4 | |
| 19 | Hexagon nut | 20412308 | 4 | |
| 20 | Pipe | 21090006 | 1 | |
| 21 | Sealing ring | 20971248 | 2 | |
| 22 | Hollow screw | 888767 | 1 | |
| 23 | Hose clamp | 21090008 | 1 | |
| 24 | Flange screw | 20405898 | 1 | |
| 25 | Hose | 21090005 | 1 | L=215mm |
| 26 | Hose clamp | 20405568 | 2 | |
| 27 | Gasket | 20405969 | 1 | |
| 28 | Flange | 20405916 | 1 | |
| 29 | Flange screw | 20405874 | 4 |
| Item | Part Name | Part No. |
| 1 | Turbocharger 3801158 | 3801158 |
| Details | |
| Engine model | TAD650VE, TAD660VE |
| Application | Exhaust Manifold and Turbocharger. High Mounted Turbo. Exhaust Outlet Front SN-10958883 Exhaust Manifold and Turbocharger. Low Mounted Turbo Exhaust Manifold and Turbocharger. Low Mounted Turbo. Exhaust Outlet Front Exhaust Manifold and Turbocharger. Low Mounted Turbo. Exhaust Outlet Front SN10570847- |
| Specification | |
| Descriptions | With wastegate. |
