Turbocharger 3802018

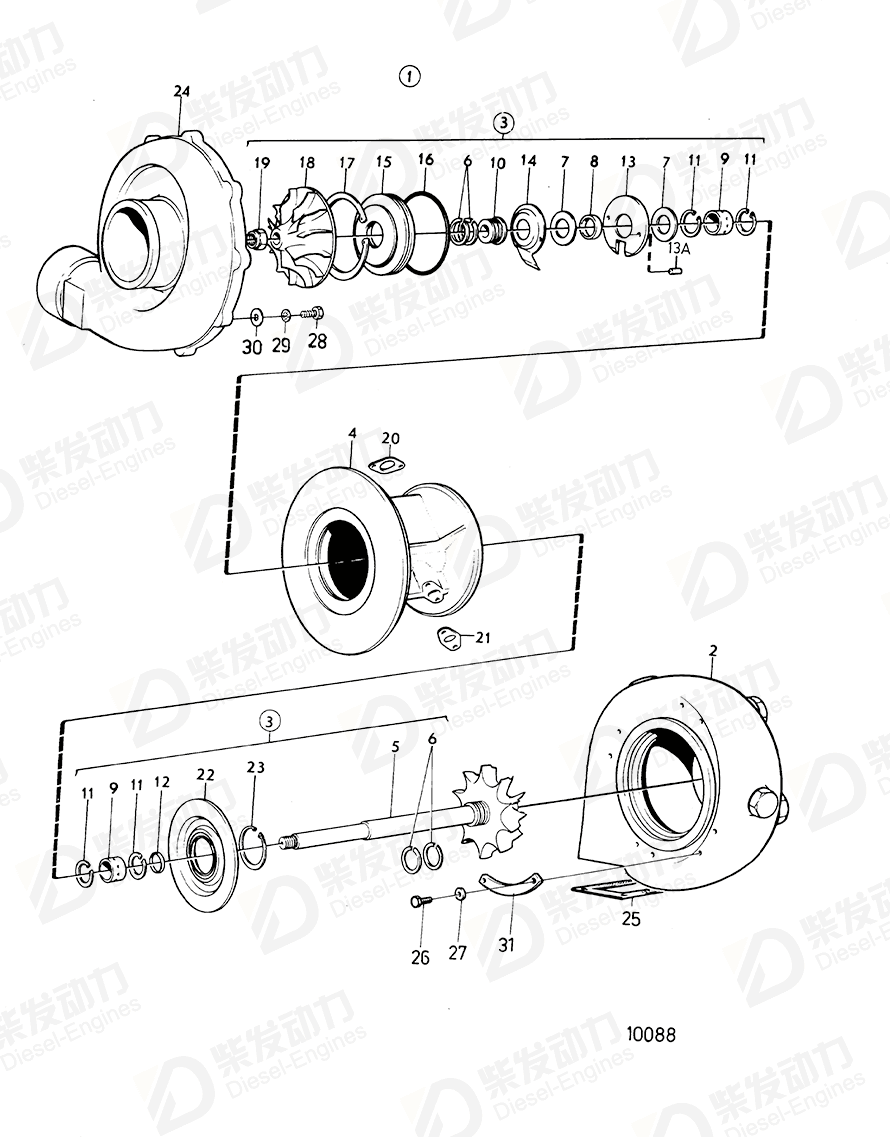

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 846241 | 1 | |
| 1 | Turbocharger | 3802018 | 1 | |
| 3 | Rotor | 849799 | 1 | |
| 5 | Turbine rotor | 849800 | 1 | |
| 6 | Piston ring | 411794 | 2 | |
| 6 | Piston ring | 467555 | 1 | |
| 7 | Thrust ring | 467026 | 2 | |
| 8 | Spacer sleeve | 422660 | 1 | |
| 9 | Bearing | 467023 | 2 | |
| 10 | Ring retainer | 467556 | 1 | |
| 11 | Lock ring | 417727 | 4 | |
| 12 | Sleeve | 843423 | 1 | |
| 14 | Splash plate | 422662 | 1 | |
| 15 | Insert | 467557 | 1 | |
| 16 | O-ring | 465027 | 1 | |
| 17 | Lock ring | 420467 | 1 | |
| 18 | Compressor wheel | 847633 | 1 | |
| 19 | Nut | 1518784 | 1 | (422669) |
| 20 | Plane gasket | 420641 | 1 | |
| 21 | Gasket | 1543360 | 1 | |
| 23 | Lock ring | 422360 | 1 | |
| 25 | Gasket | 470939 | 1 | Included in gasket kit for connecting of turbocharger. |
| 26 | Hexagon screw | 942342 | 8 | |
| 27 | Washer | 843422 | 8 | |
| 28 | Screw | 420470 | 10 | |
| 29 | Spring washer | 411809 | 10 | |
| 30 | Washer | 1695715 | 5 | |
| 31 | Repair kit | 275946 | 1 | |
| 31 | Striker plate | 843421 | 4 | |
| 13A | Locating pin | 842065 | 2 |
| Item | Part Name | Part No. |
| 1 | Turbocharger 3802018 | 3802018 |
| Details | |
| Engine model | TAD120CHC TAD121CHC TD120BHC TD120BRC TD121CHC TD121CRC |
| Application | Induction and Exhaust System Induction and Exhaust System: A Induction and Exhaust System: B Turbo |
| Specification | |
| Descriptions | Alt class |
