Turbocharger 3802079

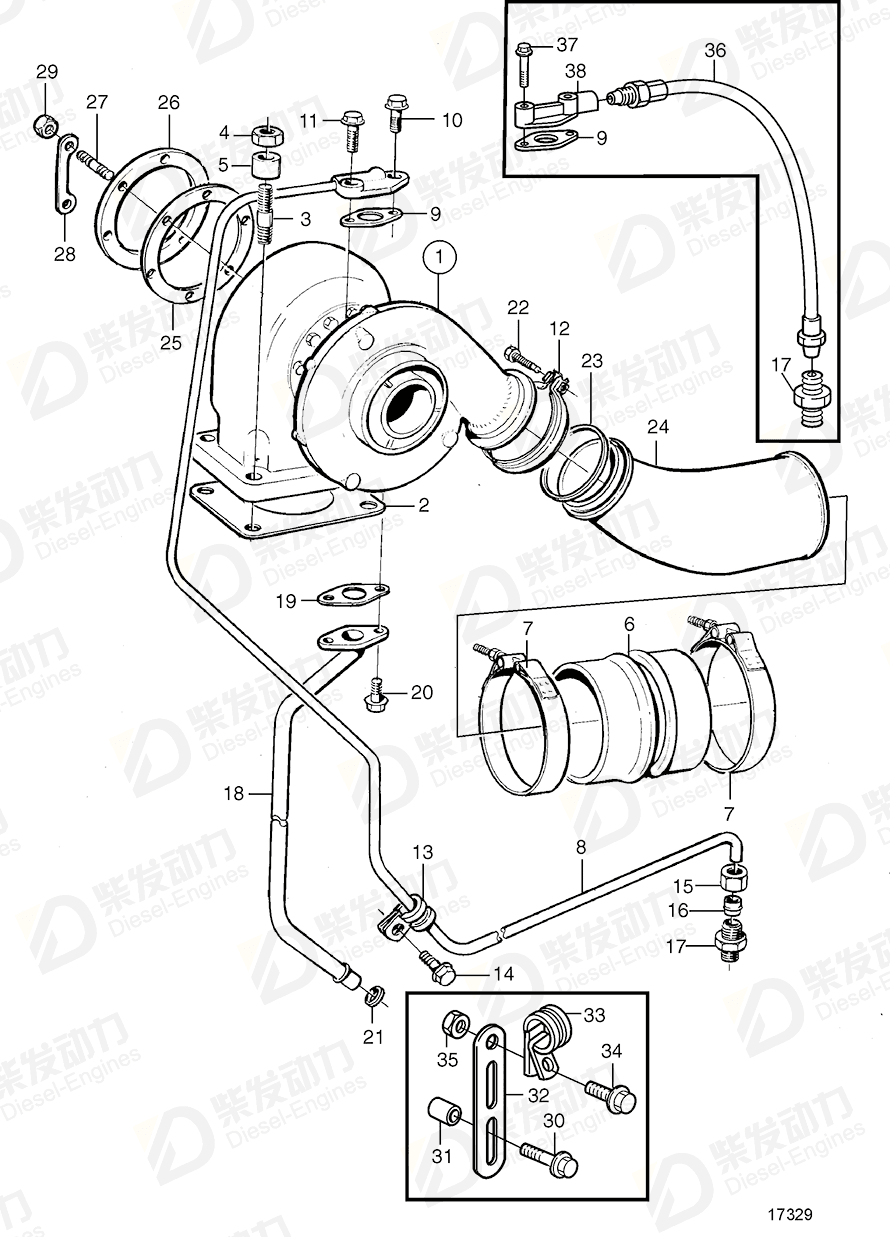

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802079 | 1 | (865563) |
| 2 | Gasket | 420618 | 1 | (466392) |
| 3 | Stud | 977298 | 4 | |
| 4 | Flange lock nut | 471622 | 4 | |
| 5 | Spacer sleeve | 470467 | 4 | |
| 6 | Charge air hose | 865127 | 1 | |
| 7 | Hose clamp | 865575 | 2 | |
| 8 | Oil pressure pipe | 862040 | 1 | |
| 9 | Plane gasket | 420641 | 1 | |
| 10 | Flange screw | 945444 | 1 | |
| 11 | Flange screw | 946671 | 1 | |
| 12 | V-clamp | 1542778 | 1 | |
| 13 | Clamp | 949746 | 2 | |
| 14 | Flange screw | 947107 | 2 | |
| 15 | Fitting nut | 956984 | 1 | |
| 16 | Ferrule | 980782 | 1 | For DH10A and THD102KD. |
| 17 | Nipple | 963948 | 1 | For DH10A and THD102KD. |
| 18 | Oil return pipe | 4772082 | 1 | |
| 19 | Plane gasket | 420643 | 1 | |
| 20 | Flange screw | 945444 | 2 | |
| 21 | Rubber moulding | 471626 | 1 | |
| 22 | Hexagon screw | 949335 | 1 | |
| 23 | Sealing ring | 1542781 | 1 | |
| 24 | Connecting pipe | 865163 | 1 | |
| 25 | Gasket | 424628 | 1 | Included in gasket kit. |
| 26 | Flange | 844935 | 1 | |
| 27 | Stud | 924064 | 6 | |
| 28 | Hexagon nut | 946330 | 6 | |
| 29 | Tab washer | 947071 | 3 | TD60B PP |
| 30 | Flange screw | 965225 | 1 | |
| 31 | Spacer sleeve | 1678297 | 1 | |
| 32 | Bracket | 965545 | 1 | |
| 33 | Clamp | 949746 | 1 | |
| 34 | Flange screw | 946440 | 1 | |
| 35 | Flange nut | 945408 | 1 | |
| 36 | Hose | 3827077 | 1 | |
| 37 | Flange screw | 946470 | 2 | |
| 38 | Flange | 8192268 | 1 |
| Item | Part Name | Part No. |
| 1 | Turbocharger 3802079 | 3802079 |
| Details | |
| Engine model | TAD730G TAD730P TAD730V |
| Application | Turbocharger Turbocharger, Components |
| Specification | |
| Descriptions | (865563) |
